ZRR80R-ARXEP (2014)

Toyota Noah/Voxy

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )X

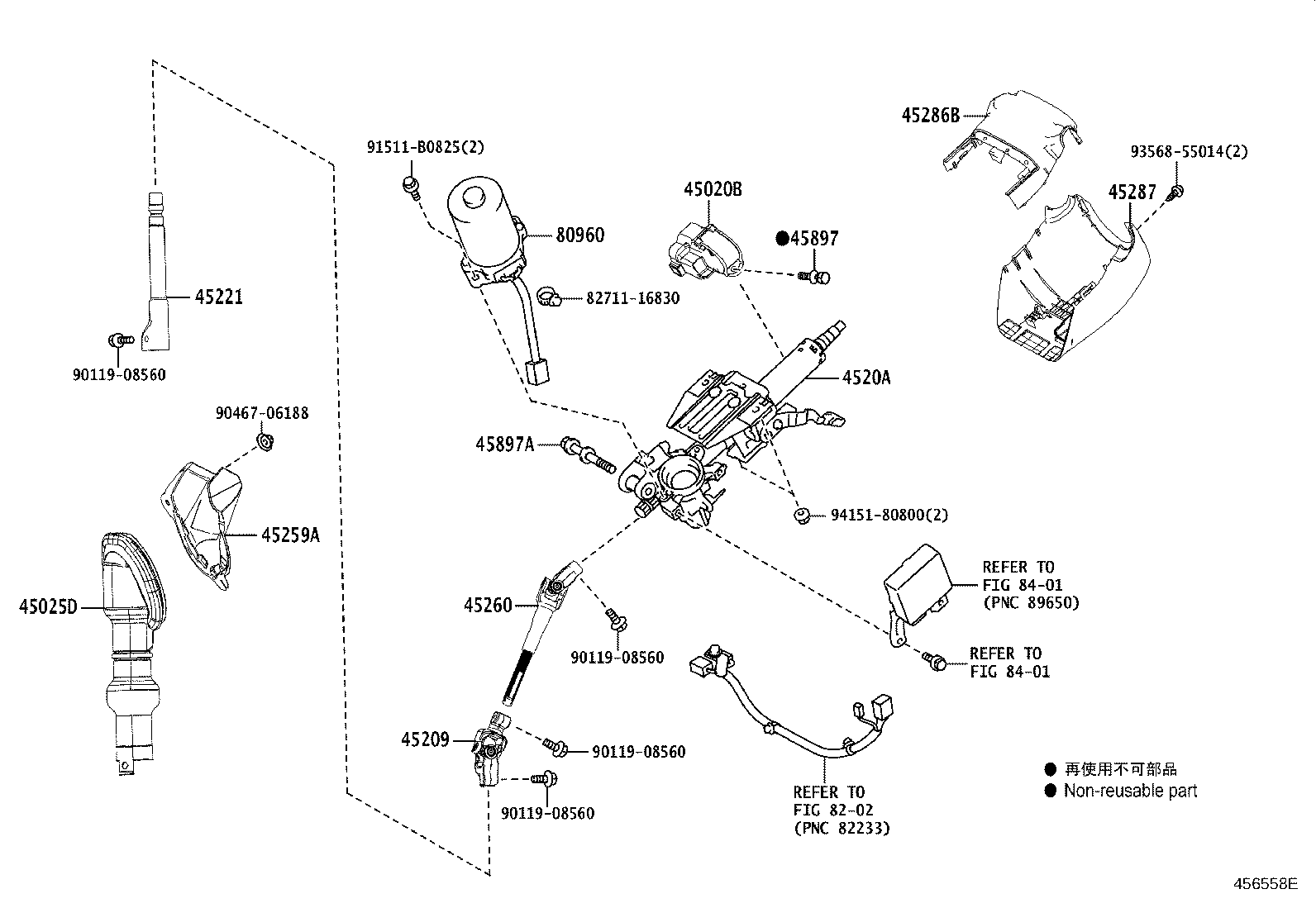

Click highlighted areas on diagram

diagram 45020B 45025D 45209 4520A 45221 45259A 45260 45286B 45287 45897 45897A 80960 8202 8271116830 8401 8401 9011908560 9011908560 9011908560 9011908560 9046706188 91511B0825 9356855014 9415180800
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-30B20

ZRR80

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-28110

ZRR80

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-28070

ZRR80..X

 1
4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING
4520A-28101

ZRR80..X

 1
4520A-28102

ZRR80..X

 1
45221 - SHAFT, STEERING INTERMEDIATE
45221-28150

ZRR80

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-28050

ZRR80

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-28150

ZRR80..X

 1
45286B - COVER, STEERING COLUMN, UPR
45286-28380C0

ZRR80..X

BLACK,TRIM0#,2#

 1
45286-28381C0

ZRR80..X

BLACK,TRIM0#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-28490C0

ZRR80..X

BLACK,TRIM0#,2#

 1
45024-28020C0

ZRR80..X

BLACK,TRIM0#

 1
45287-28491C0

ZRR80..X

BLACK,TRIM0#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

ZRR80

 1
45897A - BOLT, TILT STEERING PAWL SET
90119-10981

ZRR80

 1
80960 - MOTOR ASSY, POWER STEERING
80960-28100

ZRR80..X

 1
Common parts
82711-16830
90119-08560
90467-06188
91511-B0825
93568-55014
94151-80800
Linked diagrams
8202
8401
