ZRR80R-ARXEP (2014)

Toyota Noah/Voxy

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )3ZRFAE..NOAH ; (1706- )

Click highlighted areas on diagram

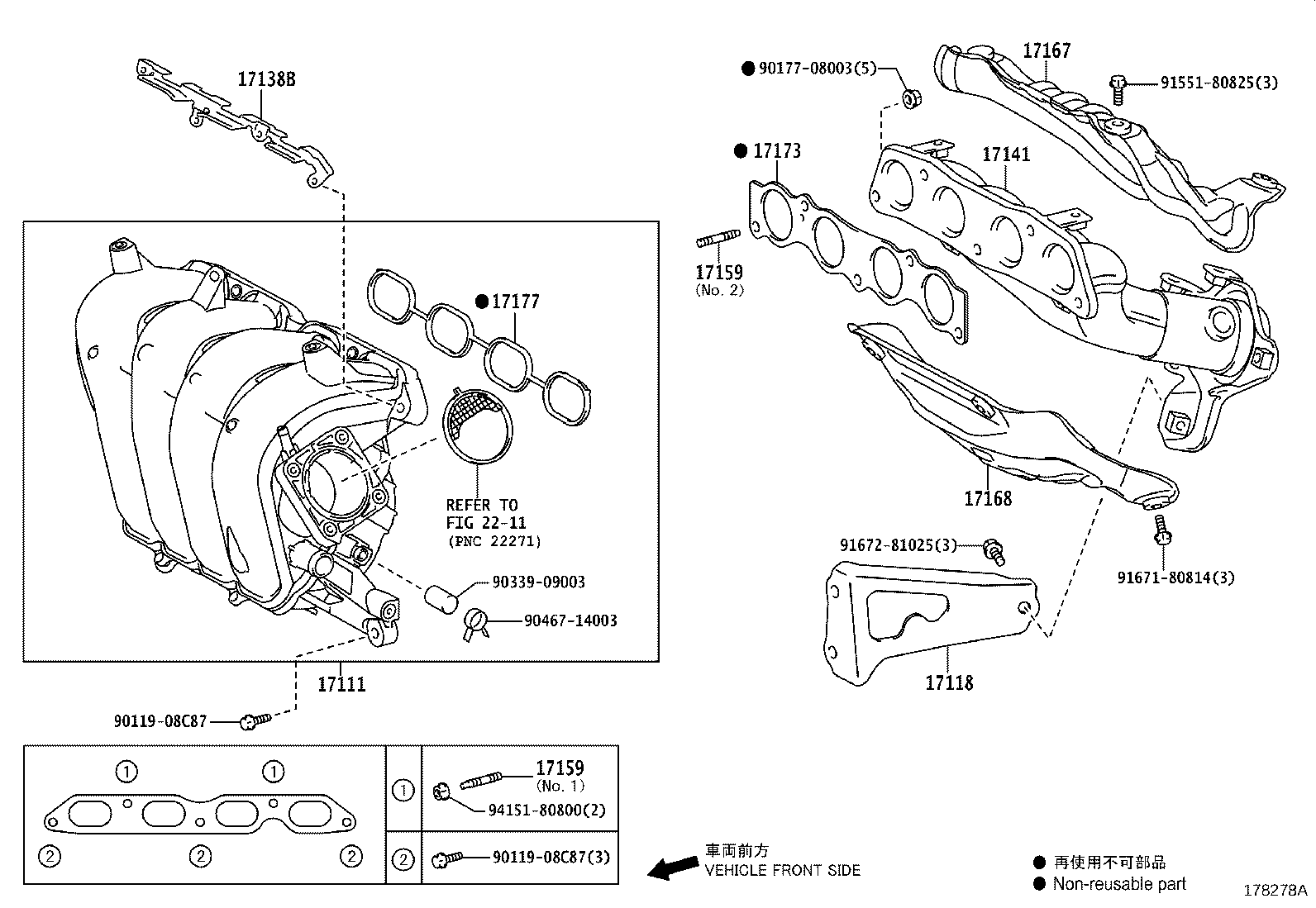

diagram 17111 17118 17138B 17141 17159 17159 17167 17168 17173 17177 2211 9011908C87 9011908C87 9017708003 9033909003 9046714003 9155180825 9167180814 9167281025 9415180800
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-37031

3ZRFAE..ZRR80

 1
17118 - STAY, MANIFOLD
17118-37050

3ZRFAE..ZRR80

 1
17138B - STAY, INTAKE MANIFOLD
17138-37011

3ZRFAE..ZRR80

 1
17141 - MANIFOLD, EXHAUST
17141-37140

3ZRFAE..ZRR80

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08052

3ZRFAE..ZRR80

NO.2

 5
90126-08026

3ZRFAE..ZRR80

NO.1

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08052

3ZRFAE..ZRR80

NO.2

 5
90126-08026

3ZRFAE..ZRR80

NO.1

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-37050

3ZRFAE..ZRR80

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-37070

3ZRFAE..ZRR80

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-37010

3ZRFAE..ZRR80

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-37030

3ZRFAE..ZRR80

 1
Common parts
90119-08C87
90177-08003
90339-09003
90467-14003
91551-80825
91671-80814
91672-81025
94151-80800
Linked diagrams
2211
