ZRR80R-ARXEP (2014)
Toyota Noah/Voxy
ILLUST NO. 2 OF 2(1401- )3ZRFAE..NOAH ; (1706- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12512C - BRACKET, ALTERNATOR, NO.2 | ||||
| 12512-37010 |
3ZRFAE..ZRR80 |
1 | ||
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-28040 |
3ZRFAE..ZRR80 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-37022 |
3ZRFAE..ZRR80 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
3ZRFAE..ZRR80 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
3ZRFAE..ZRR80 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-37010 |
3ZRFAE..ZRR80 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
3ZRFAE..ZRR80 |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
3ZRFAE..ZRR80 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-37022 |
3ZRFAE..ZRR80 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
3ZRFAE..ZRR80 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
3ZRFAE..ZRR80 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-37020 |
3ZRFAE..ZRR80 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-52701 |
3ZRFAE..ZRR80 NO.2 |
1 | ||
| 96136-42501 |
3ZRFAE..ZRR80 NO.1 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-52701 |
3ZRFAE..ZRR80 NO.2 |
1 | ||
| 96136-42501 |
3ZRFAE..ZRR80 NO.1 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-37041 |
3ZRFAE..ZRR80 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-37010 |
3ZRFAE..ZRR80 |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-37080 |
3ZRFAE..ZRR80 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96134-41900 |
3ZRFAE..ZRR80 NO.1 & NO.2 |
2 | ||
| 96134-41900 |
3ZRFAE..ZRR80 NO.1 |
1 | ||
| 96136-42101 |
3ZRFAE..ZRR80 NO.2 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96134-41900 |
3ZRFAE..ZRR80 NO.1 & NO.2 |
2 | ||
| 96134-41900 |
3ZRFAE..ZRR80 NO.1 |
1 | ||
| 96136-42101 |
3ZRFAE..ZRR80 NO.2 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-37010 |
3ZRFAE..ZRR80 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-37040 |
3ZRFAE..ZRR80 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-28010 |
3ZRFAE..ZRR80 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-37030 |
3ZRFAE..ZRR80 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03148 |
3ZRFAE..ZRR80 *WAX 80-93,TYPE B:REFER ILLUST. |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-37100 |
3ZRFAE..ZRR80 NO.1 |
1 | ||
| 16581-37010 |
3ZRFAE..ZRR80 NO.2 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-37100 |
3ZRFAE..ZRR80 NO.1 |
1 | ||
| 16581-37010 |
3ZRFAE..ZRR80 NO.2 |
1 | ||
| Common parts | ||||
| 16575-37040 | ||||
| 90116-06127 | ||||
| 90119-08A53 | ||||
| 90126-06026 | ||||
| 91551-80625 | ||||
| 91553-F0830 | ||||
| 91671-80612 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 2211 | ||||
| 3414 | ||||
| 8716 | ||||

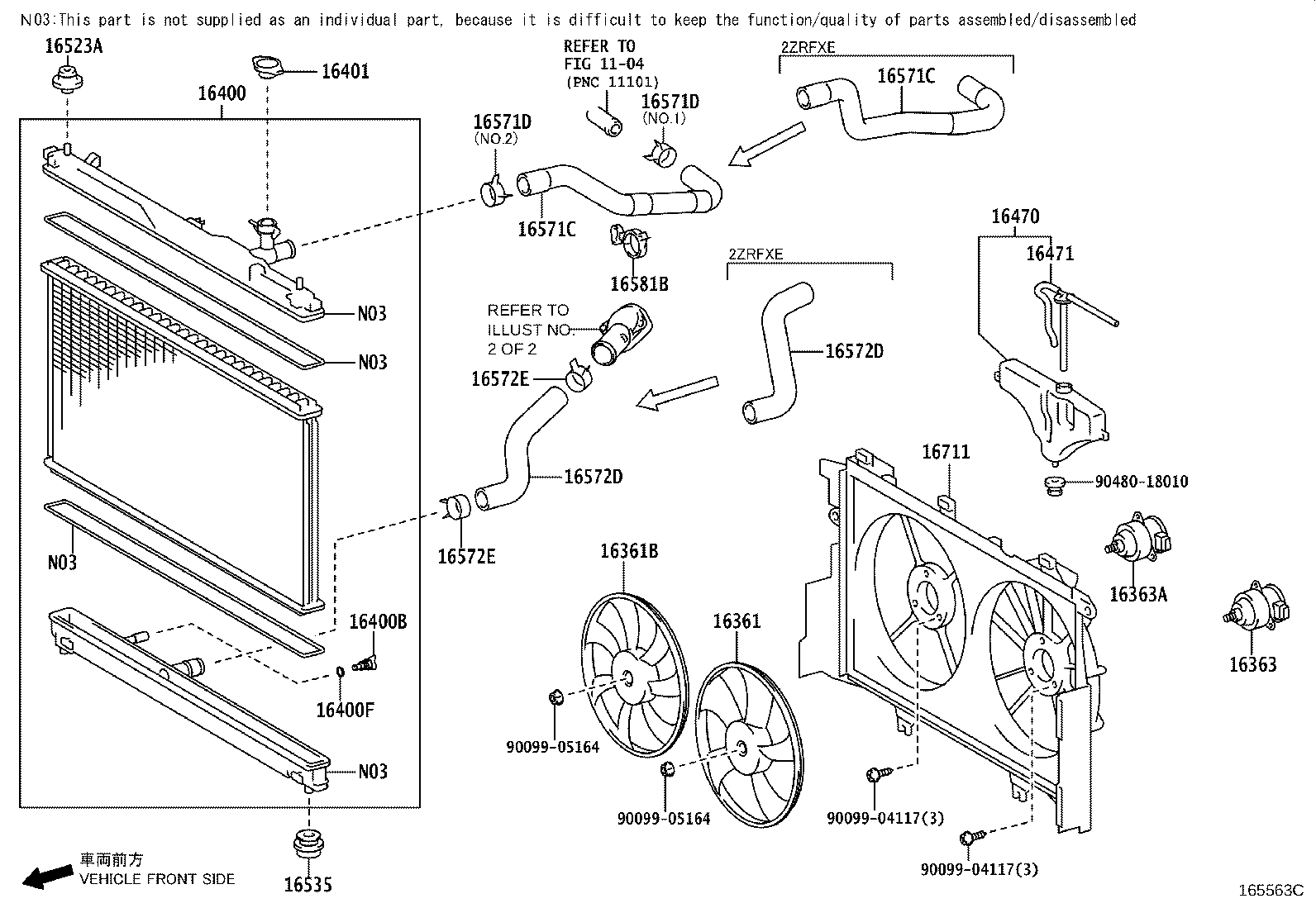

ILLUST NO. 1 OF 2(1401- )3ZRFAE..NOAH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-28260 |
3ZRFAE..ZRR80 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-28180 |
3ZRFAE..ZRR80 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-23010 |
3ZRFAE..ZRR80 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-23010 |
3ZRFAE..ZRR80 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-37280 |
3ZRFAE..ZRR80 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
3ZRFAE..ZRR80 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
3ZRFAE..ZRR80 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-31520 |
3ZRFAE..ZRR80 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-37020 |
3ZRFAE..ZRR80 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-37010 |
3ZRFAE..ZRR80 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-20020 |
3ZRFAE..ZRR80 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-28030 |
3ZRFAE..ZRR80 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-37190 |
3ZRFAE..ZRR80 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-37190 |
3ZRFAE..ZRR80 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
3ZRFAE..ZRR80 NO.1 |
1 | ||
| 96136-44301 |
3ZRFAE..ZRR80 NO.2 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
3ZRFAE..ZRR80 NO.1 |
1 | ||
| 96136-44301 |
3ZRFAE..ZRR80 NO.2 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-37170 |
3ZRFAE..ZRR80 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-37170 |
3ZRFAE..ZRR80 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-44301 |
3ZRFAE..ZRR80 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 96136-44301 |
3ZRFAE..ZRR80 |
2 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-37120 |
3ZRFAE..ZRR80 |
1 | ||
| 16581-37031 |
3ZRFAE..ZRR80 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-37120 |
3ZRFAE..ZRR80 |
1 | ||
| Common parts | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90480-18010 | ||||
| Linked diagrams | ||||
| 1104 | ||||
