ZRR80R-ARXEP (2014)

Toyota Noah/Voxy

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )3ZRFAE..NOAH ; (1706- )

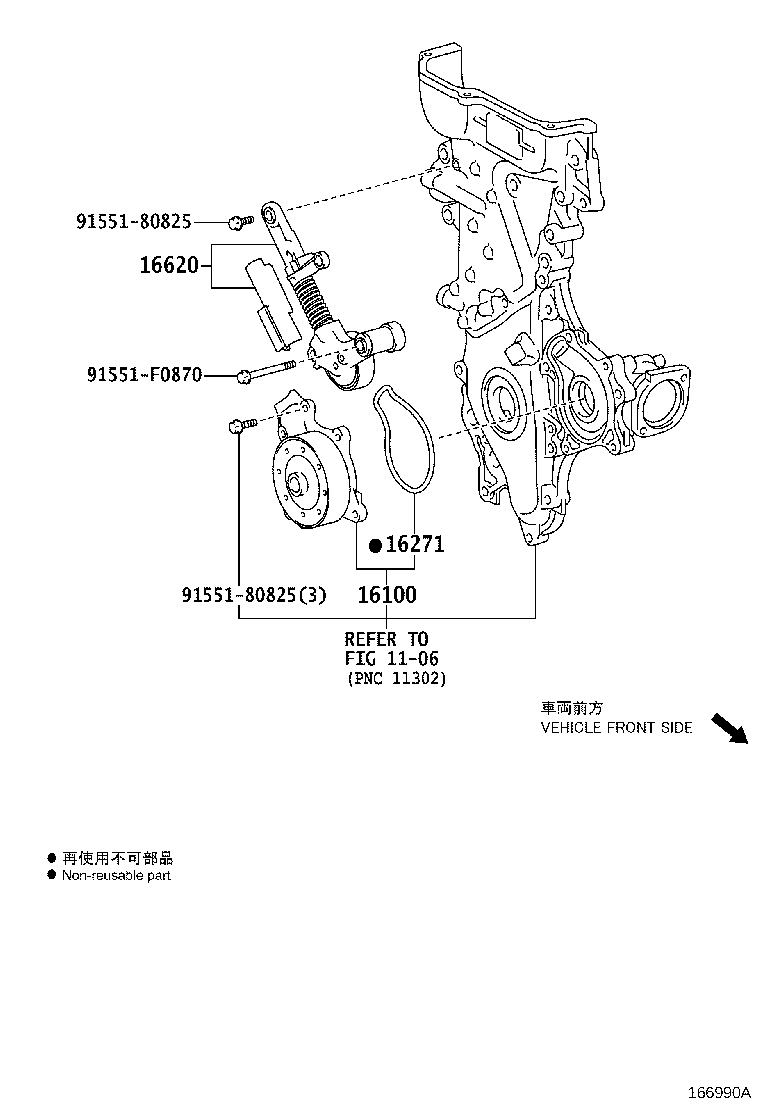

Click highlighted areas on diagram

diagram 1106 16100 16271 16620 9155180825 9155180825 91551F0870
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39565

3ZRFAE..ZRR80

 1
16271 - GASKET, WATER PUMP
16271-37030

3ZRFAE..ZRR80

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-37030

3ZRFAE..ZRR80

 1
16620-37011

3ZRFAE..ZRR80

 1
Common parts
91551-80825
91551-F0870
Linked diagrams
1106
