ZRR80R-ARXEP (2014)

Toyota Noah/Voxy

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )3ZRFAE..NOAH ; (1706- )

Click highlighted areas on diagram

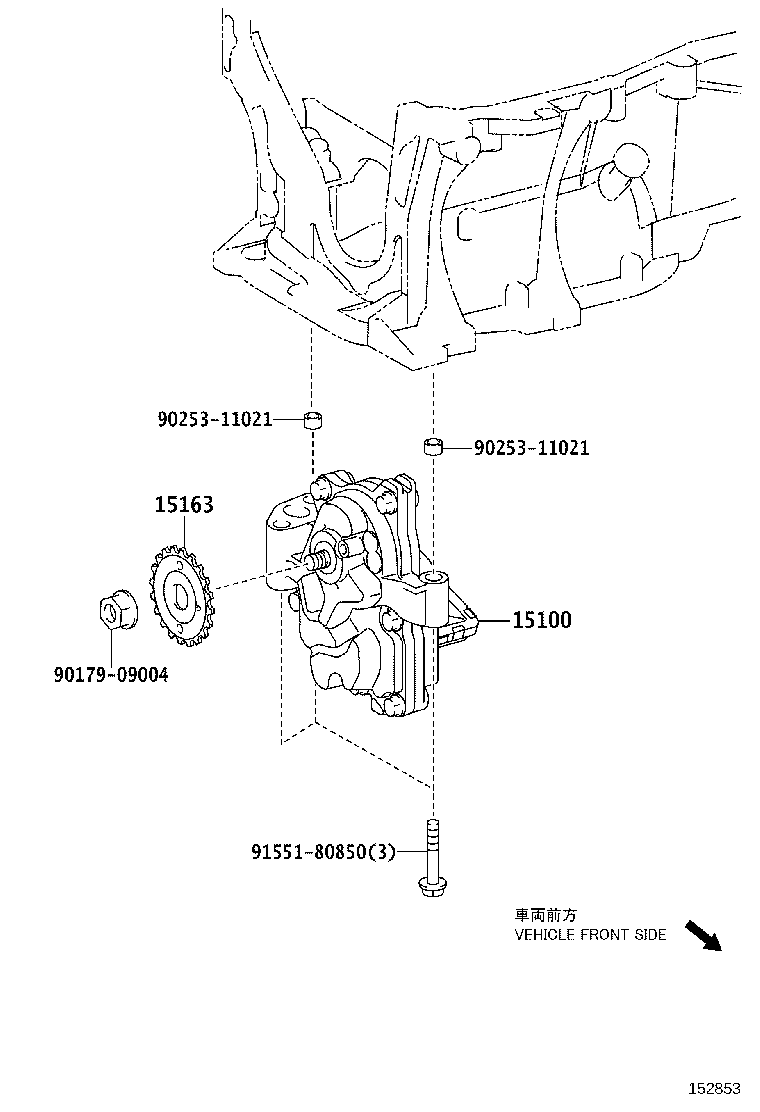

diagram 15100 15163 9017909004 9025311021 9025311021 9155180850
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-37021

3ZRFAE..ZRR80

 1
15163 - GEAR, OIL PUMP DRIVE SHAFT
15163-28010

3ZRFAE..ZRR80

 1
Common parts
90179-09004
90253-11021
91551-80850
