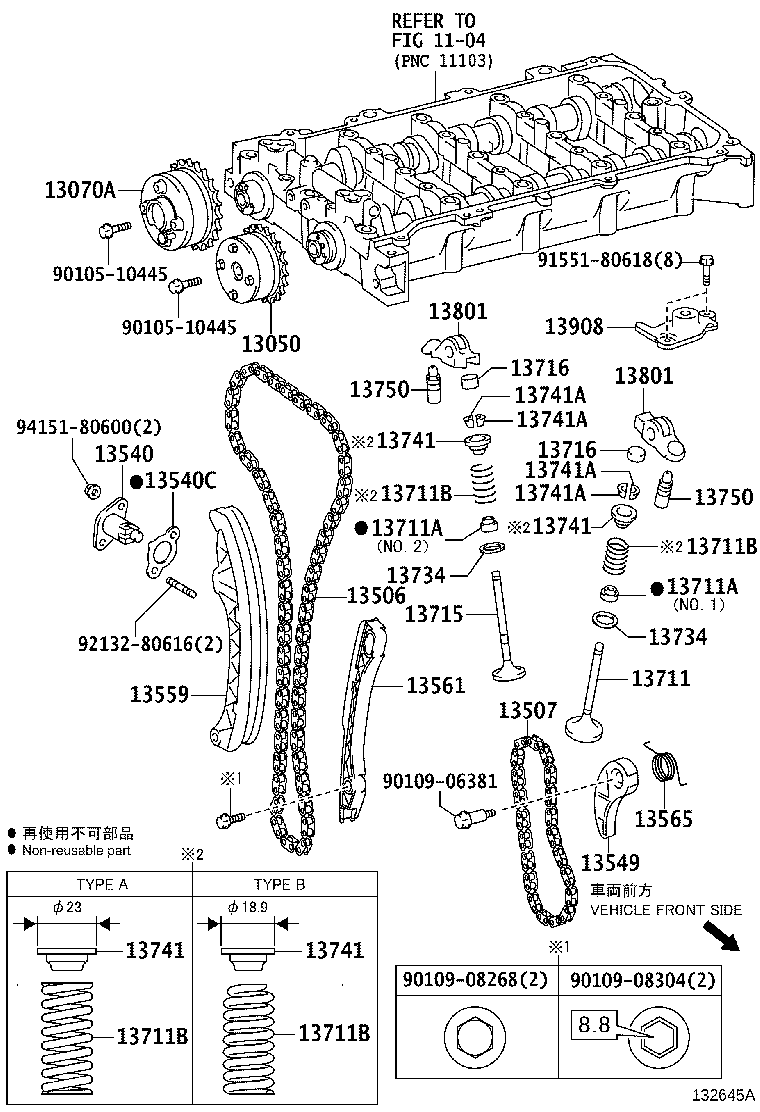

ZRR80R-ARXEP (2014)
Toyota Noah/Voxy
(1401- )3ZRFAE..NOAH ; (1706- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-37050 |
3ZRFAE..ZRR80 |
1 | ||
| 13070A - GEAR ASSY, CAMSHAFT TIMING EXHAUST | ||||
| 13070-37020 |
3ZRFAE..ZRR80 |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-37060 |
3ZRFAE..ZRR80 |
1 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-28010 |
3ZRFAE..ZRR80 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-37030 |
3ZRFAE..ZRR80 |
1 | ||
| 13540C - GASKET(FOR CHAIN TENSIONER) | ||||
| 13552-37010 |
3ZRFAE..ZRR80 |
1 | ||
| 13549 - PLATE, CHAIN TENSIONER | ||||
| 13549-37010 |
3ZRFAE..ZRR80 |
1 | ||
| 13549-37020 |
3ZRFAE..ZRR80 |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-37030 |
3ZRFAE..ZRR80 |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-37040 |
3ZRFAE..ZRR80 |
1 | ||
| 13565 - SPRING, CHAIN DAMPER | ||||
| 13565-37010 |
3ZRFAE..ZRR80 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-37020 |
3ZRFAE..ZRR80 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02112 |
3ZRFAE..ZRR80 NO.2 |
8 | ||
| 90913-02101 |
3ZRFAE..ZRR80 NO.1 |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02112 |
3ZRFAE..ZRR80 NO.2 |
8 | ||
| 90913-02101 |
3ZRFAE..ZRR80 NO.1 |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-32071 |
3ZRFAE..ZRR80 TYPE B:REFER ILLUST. |
16 | ||
| 90501-31028 |
3ZRFAE..ZRR80 TYPE A:REFER ILLUST. |
16 | ||
| 90501-31027 |
3ZRFAE..ZRR80 |
16 | ||
| 90501-32072 |
3ZRFAE..ZRR80 L=51.88 |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-32071 |
3ZRFAE..ZRR80 TYPE B:REFER ILLUST. |
16 | ||
| 90501-31028 |
3ZRFAE..ZRR80 TYPE A:REFER ILLUST. |
16 | ||
| 90501-31027 |
3ZRFAE..ZRR80 |
16 | ||
| 90501-32072 |
3ZRFAE..ZRR80 L=51.88 |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-32071 |
3ZRFAE..ZRR80 TYPE B:REFER ILLUST. |
16 | ||
| 90501-31028 |
3ZRFAE..ZRR80 TYPE A:REFER ILLUST. |
16 | ||
| 90501-31027 |
3ZRFAE..ZRR80 |
16 | ||
| 90501-32072 |
3ZRFAE..ZRR80 L=51.88 |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-32071 |
3ZRFAE..ZRR80 TYPE B:REFER ILLUST. |
16 | ||
| 90501-31028 |
3ZRFAE..ZRR80 TYPE A:REFER ILLUST. |
16 | ||
| 90501-31027 |
3ZRFAE..ZRR80 |
16 | ||
| 90501-32072 |
3ZRFAE..ZRR80 L=51.88 |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-37030 |
3ZRFAE..ZRR80 |
8 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-75020 |
3ZRFAE..ZRR80 |
16 | ||
| 13716 - CAP, VALVE STEM | ||||
| 13716-75020 |
3ZRFAE..ZRR80 |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
3ZRFAE..ZRR80 |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
3ZRFAE..ZRR80 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-20021 |
3ZRFAE..ZRR80 |
16 | ||
| 13741-36010 |
3ZRFAE..ZRR80 |
16 | ||
| 13741-36010 |
3ZRFAE..ZRR80 TYPE B:REFER ILLUST. |
16 | ||
| 13741-20021 |
3ZRFAE..ZRR80 TYPE A:REFER ILLUST. |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-20021 |
3ZRFAE..ZRR80 |
16 | ||
| 13741-36010 |
3ZRFAE..ZRR80 |
16 | ||
| 13741-36010 |
3ZRFAE..ZRR80 TYPE B:REFER ILLUST. |
16 | ||
| 13741-20021 |
3ZRFAE..ZRR80 TYPE A:REFER ILLUST. |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-20021 |
3ZRFAE..ZRR80 |
16 | ||
| 13741-36010 |
3ZRFAE..ZRR80 |
16 | ||
| 13741-36010 |
3ZRFAE..ZRR80 TYPE B:REFER ILLUST. |
16 | ||
| 13741-20021 |
3ZRFAE..ZRR80 TYPE A:REFER ILLUST. |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-20021 |
3ZRFAE..ZRR80 |
16 | ||
| 13741-36010 |
3ZRFAE..ZRR80 |
16 | ||
| 13741-36010 |
3ZRFAE..ZRR80 TYPE B:REFER ILLUST. |
16 | ||
| 13741-20021 |
3ZRFAE..ZRR80 TYPE A:REFER ILLUST. |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
3ZRFAE..ZRR80 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
3ZRFAE..ZRR80 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
3ZRFAE..ZRR80 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
3ZRFAE..ZRR80 |
32 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-75020 |
3ZRFAE..ZRR80 |
16 | ||
| 13750-21010 |
3ZRFAE..ZRR80 |
16 | ||
| 13750 - ADJUSTER ASSY, VALVE LASH | ||||
| 13750-75020 |
3ZRFAE..ZRR80 |
16 | ||
| 13750-21010 |
3ZRFAE..ZRR80 |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-23011 |
3ZRFAE..ZRR80 |
16 | ||
| 13801-36020 |
3ZRFAE..ZRR80 |
16 | ||
| 13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1 | ||||
| 13801-23011 |
3ZRFAE..ZRR80 |
16 | ||
| 13801-36020 |
3ZRFAE..ZRR80 |
16 | ||
| 13908 - DAMPER SUB-ASSY, VALVE ROCKER ARM LOST MOTION | ||||
| 13908-37012 |
3ZRFAE..ZRR80 |
4 | ||
| Common parts | ||||
| 90105-10445 | ||||
| 90109-06381 | ||||
| 90109-08268 | ||||
| 90109-08304 | ||||
| 91551-80618 | ||||
| 92132-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
