ZRR80R-ARXEP (2014)

Toyota Noah/Voxy

Production Jan 2014 - Jun 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )3ZRFAE..NOAH ; (1706- )

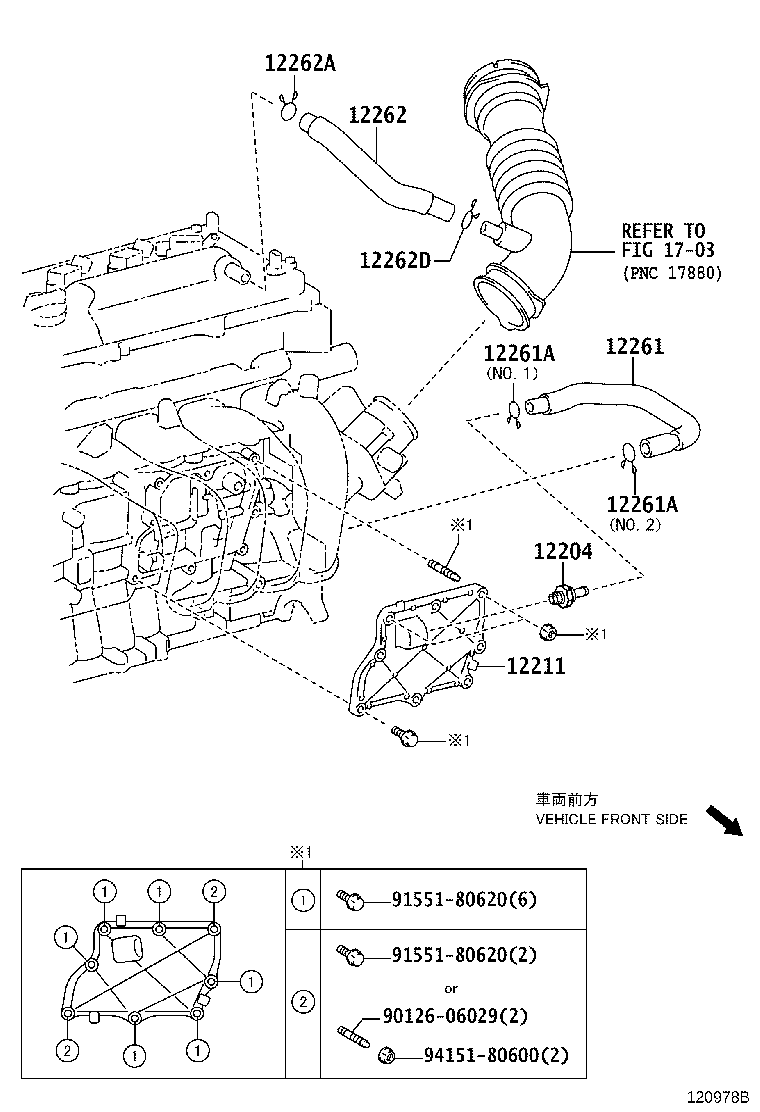

Click highlighted areas on diagram

diagram 12204 12211 12261 12261A 12261A 12262 12262A 12262D 1703 9012606029 9155180620 9155180620 9415180600
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-37010

3ZRFAE..ZRR80

 1
12211 - CASE, VENTILATION, NO.1
12211-37010

3ZRFAE..ZRR80

 1
12261 - HOSE, VENTILATION
12261-37040

3ZRFAE..ZRR80

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120

3ZRFAE..ZRR80

NO.1

 1
90466-22005

3ZRFAE..ZRR80

NO.2

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15120

3ZRFAE..ZRR80

NO.1

 1
90466-22005

3ZRFAE..ZRR80

NO.2

 1
12262 - HOSE, VENTILATION, NO.2
12262-37020

3ZRFAE..ZRR80

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

3ZRFAE..ZRR80

 1
12262D - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

3ZRFAE..ZRR80

 1
Common parts
90126-06029
91551-80620
94151-80600
Linked diagrams
1703
