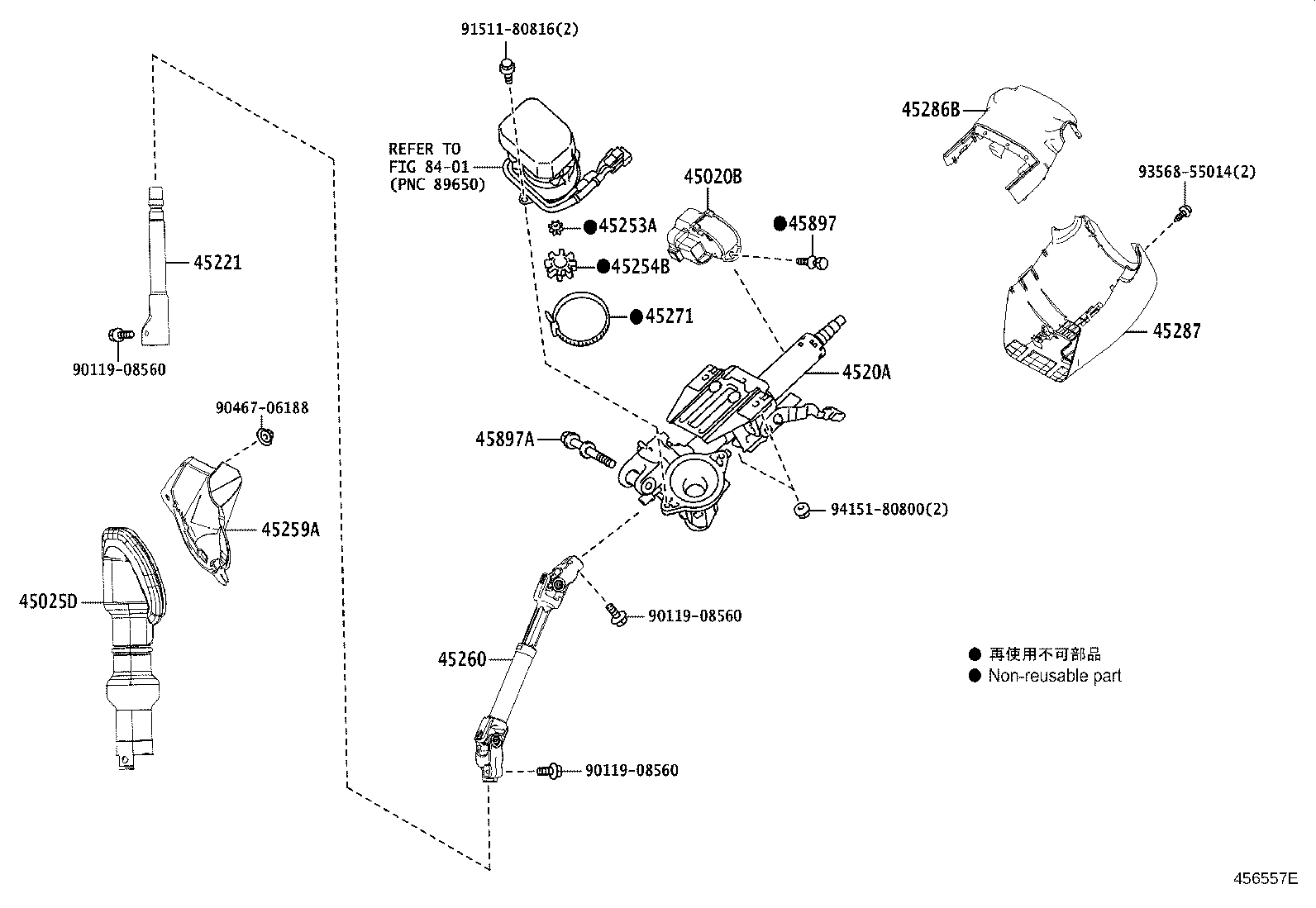

ZRR80R-APXSP (2014)
Toyota Noah/Voxy
(1401- )07S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK | ||||
| 45020-30B20 |
ZRR80 |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-28110 |
ZRR80 |
1 | ||
| 4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING | ||||
| 4520A-28121 |
ZRR80..SI |
1 | ||
| 4520A-28122 |
ZRR80..SI |
1 | ||
| 4520A-28101 |
ZRR80..X |
1 | ||
| 4520A-28102 |
ZRR80..X |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-28150 |
ZRR80 |
1 | ||
| 45253A - SPACER, ELECTRIC POWER STEERING MOTOR SHAFT | ||||
| 45253-28130 |
ZRR80..SI |
1 | ||
| 45254B - DAMPER, ELECTRIC POWER STEERING MOTOR SHAFT | ||||
| 45254-28040 |
ZRR80..SI |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-28050 |
ZRR80 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-28161 |
ZRR80..SI |
1 | ||
| 45260-28170 |
ZRR80..SI |
1 | ||
| 45260-28150 |
ZRR80..X |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-52040 |
ZRR80..SI |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-28380C0 |
ZRR80..SI BLACK,TRIM2# |
1 | ||
| 45286-28380C0 |
ZRR80..X BLACK,TRIM0#,2# |
1 | ||
| 45286-28381C0 |
ZRR80..X BLACK,TRIM0# |
1 | ||
| 45286-28381C0 |
ZRR80..SI BLACK,TRIM2# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-28490C0 |
ZRR80..X BLACK,TRIM0#,2# |
1 | ||
| 45024-28020C0 |
ZRR80..SI BLACK,TRIM2# |
1 | ||
| 45024-28020C0 |
ZRR80..X BLACK,TRIM0# |
1 | ||
| 45287-28490C0 |
ZRR80..SI BLACK,TRIM2# |
1 | ||
| 45287-28491C0 |
ZRR80..X BLACK,TRIM0# |
1 | ||
| 45287-28491C0 |
ZRR80..SI BLACK,TRIM2# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ZRR80 |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 90119-10981 |
ZRR80 |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90467-06188 | ||||
| 91511-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(1401- )X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK | ||||
| 45020-30B20 |
ZRR80 |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-28110 |
ZRR80 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-28070 |
ZRR80..X |
1 | ||
| 4520A - COLUMN SUB-ASSY, ELECTRIC POWER STEERING | ||||
| 4520A-28121 |
ZRR80..SI |
1 | ||
| 4520A-28122 |
ZRR80..SI |
1 | ||
| 4520A-28101 |
ZRR80..X |
1 | ||
| 4520A-28102 |
ZRR80..X |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-28150 |
ZRR80 |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-28050 |
ZRR80 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-28161 |
ZRR80..SI |
1 | ||
| 45260-28170 |
ZRR80..SI |
1 | ||
| 45260-28150 |
ZRR80..X |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-28380C0 |
ZRR80..SI BLACK,TRIM2# |
1 | ||
| 45286-28380C0 |
ZRR80..X BLACK,TRIM0#,2# |
1 | ||
| 45286-28381C0 |
ZRR80..X BLACK,TRIM0# |
1 | ||
| 45286-28381C0 |
ZRR80..SI BLACK,TRIM2# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-28490C0 |
ZRR80..X BLACK,TRIM0#,2# |
1 | ||
| 45024-28020C0 |
ZRR80..SI BLACK,TRIM2# |
1 | ||
| 45024-28020C0 |
ZRR80..X BLACK,TRIM0# |
1 | ||
| 45287-28490C0 |
ZRR80..SI BLACK,TRIM2# |
1 | ||
| 45287-28491C0 |
ZRR80..X BLACK,TRIM0# |
1 | ||
| 45287-28491C0 |
ZRR80..SI BLACK,TRIM2# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ZRR80 |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 90119-10981 |
ZRR80 |
1 | ||
| 80960 - MOTOR ASSY, POWER STEERING | ||||
| 80960-28100 |
ZRR80..X |
1 | ||
| Common parts | ||||
| 82711-16830 | ||||
| 90119-08560 | ||||
| 90467-06188 | ||||
| 91511-B0825 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
