ZRR80R-APXSP (2017)

Toyota Noah/Voxy

Production Jun 2017 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

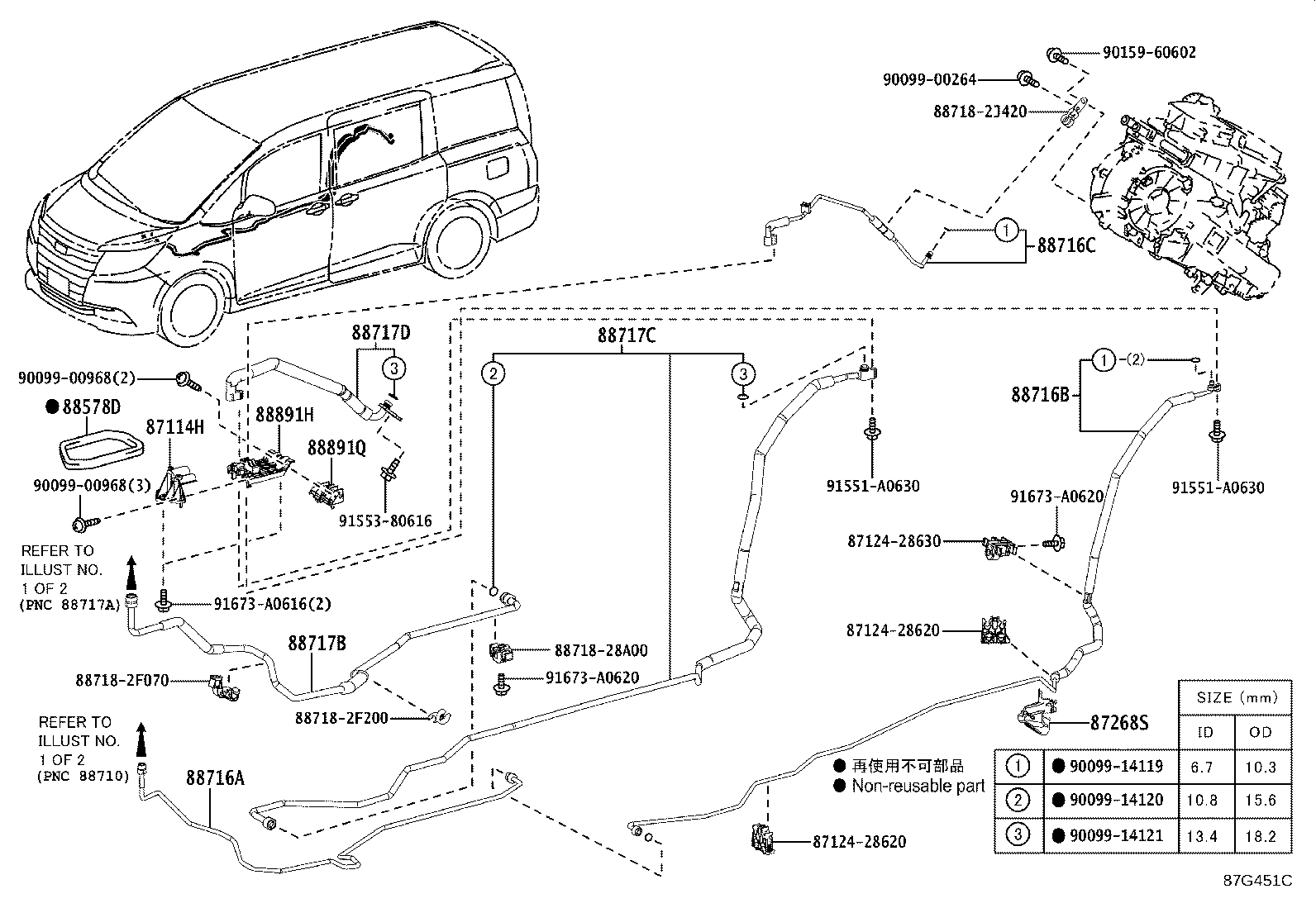

ILLUST NO. 2 OF 2(1706- )

Click highlighted areas on diagram

REAR,W(REAR HEATER)

diagram 87114H 8712428620 8712428620 8712428630 87268S 88578D 88716A 88716B 88716C 88717B 88717C 88717D 8871828A00 887182F070 887182F200 887182J420 88891H 88891Q 9009900264 9009900968 9009900968 9009914119 9009914120 9009914121 9015960602 91551A0630 91551A0630 9155380616 91673A0616 91673A0620 91673A0620
Part # Description Qty Price
87114H - COVER, HEATER
87114-28160

ZRR80

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-28560

ZRR80

 1
88578-28560

ZRR80

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-28A20

ZRR80

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-28A40

ZRR80..NOAH

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-28A60

ZRR80

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-28A20

ZRR80

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-28A40

ZRR80..NOAH

 1
88717D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-28A60

ZRR80

 1
88717-28A61

ZRR80

 1
88891H - COVER, COOLER, NO.1
87114-28190

ZRR80..NOAH

 1
Common parts
87124-28620
87124-28630
88718-28A00
88718-2F070
88718-2F200
88718-2J420
90099-00264
90099-00968
90099-14119
90099-14120
90099-14121
90159-60602
91551-A0630
91553-80616
91673-A0616
91673-A0620
