ZRR80R-APXSP (2017)

Toyota Noah/Voxy

Production Jun 2017 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

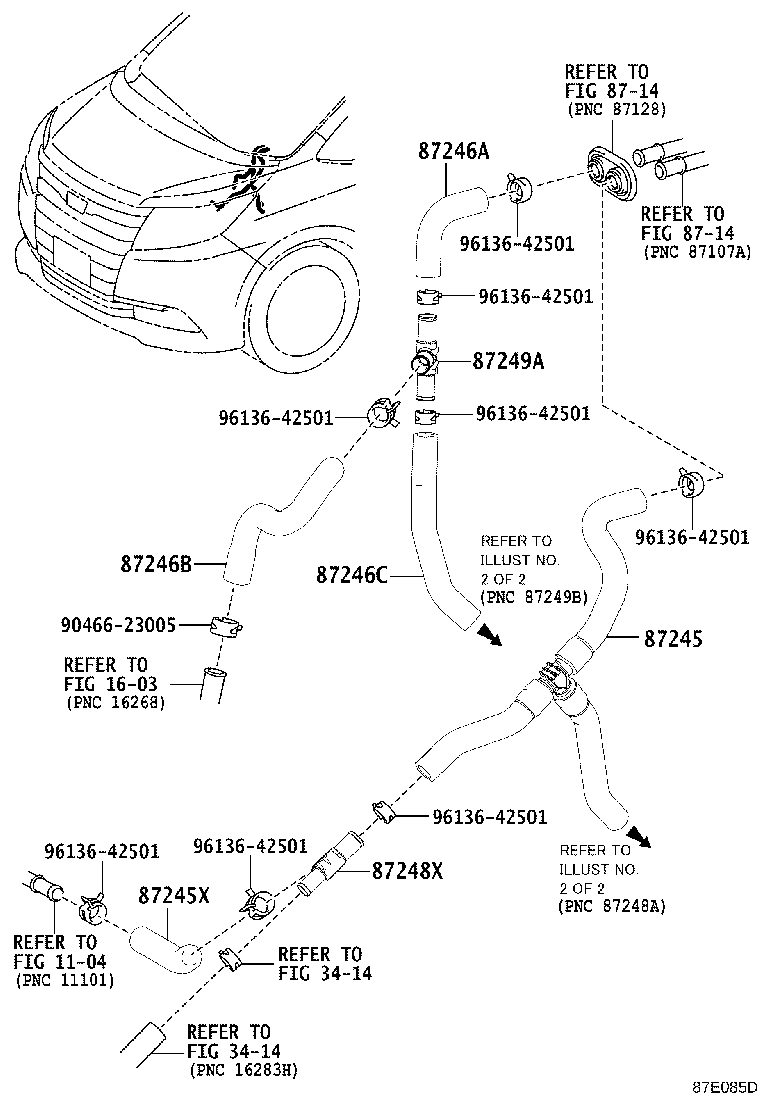

ILLUST NO. 1 OF 2(1706- )

Click highlighted areas on diagram

FRONT,W(REAR HEATER)

diagram 1104 1603 3414 3414 8714 8714 87245 87245X 87246A 87246B 87246C 87248X 87249A 9046623005 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-28A30

ZRR80..NOAH

 1
87245X - HOSE, HEATER WATER
87245-28D00

ZRR80

 1
87248X - PIPE, HEATER WATER
87248-33030

ZRR80

 1
Common parts
90466-23005
96136-42501
Linked diagrams
1104
1603
3414
8714

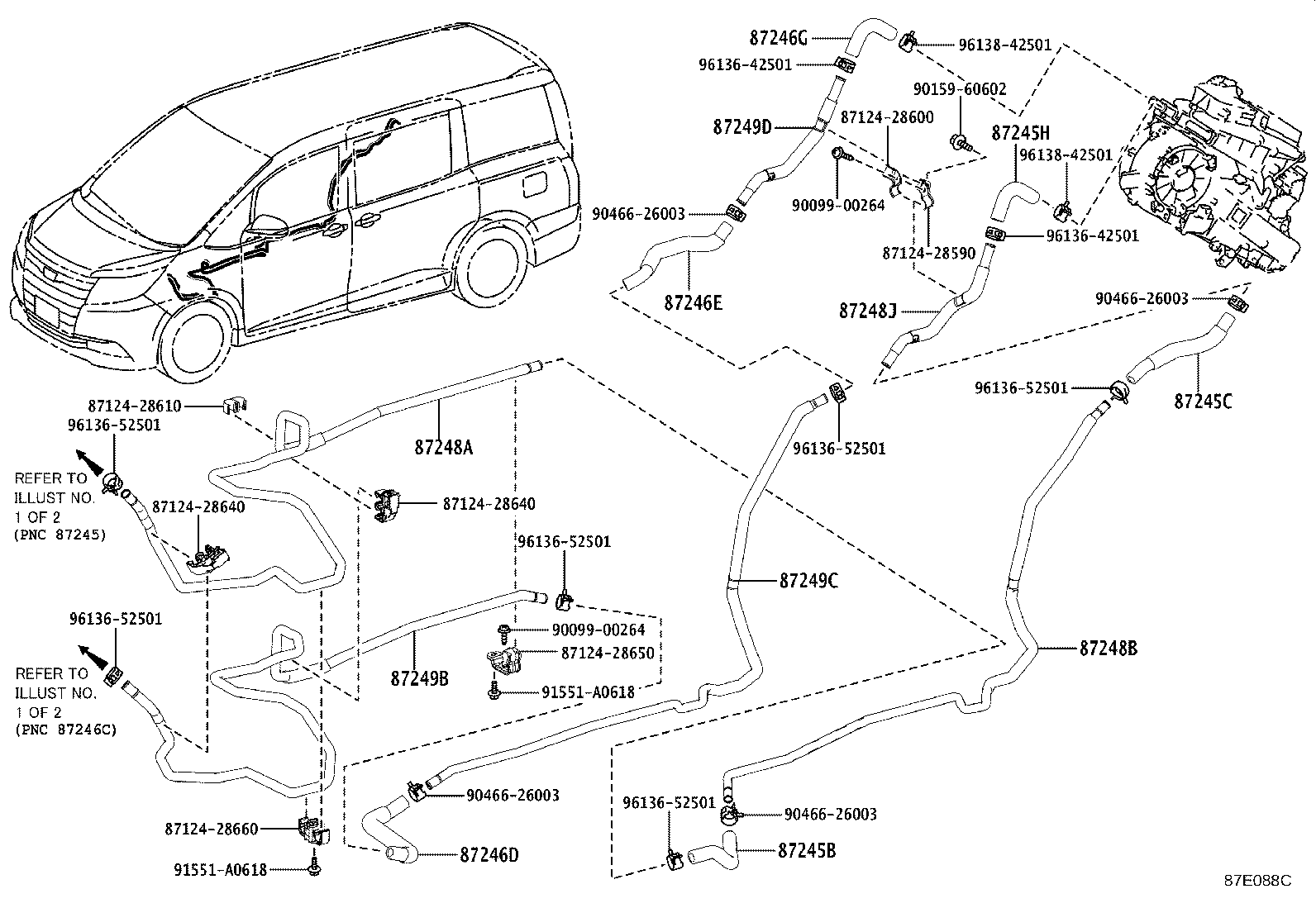

ILLUST NO. 2 OF 2(1706- )

Click highlighted areas on diagram

REAR

diagram 8712428590 8712428600 8712428610 8712428640 8712428640 8712428650 8712428660 87245B 87245C 87245H 87246D 87246E 87246G 87248A 87248B 87248J 87249B 87249C 87249D 9009900264 9009900264 9015960602 9046626003 9046626003 9046626003 9046626003 91551A0618 91551A0618 9613642501 9613642501 9613652501 9613652501 9613652501 9613652501 9613652501 9613652501 9613842501 9613842501
Part # Description Qty Price
Common parts
87124-28590
87124-28600
87124-28610
87124-28640
87124-28650
87124-28660
90099-00264
90159-60602
90466-26003
91551-A0618
96136-42501
96136-52501
96138-42501
