ZRR80R-APXSP (2017)

Toyota Noah/Voxy

Production Jun 2017 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1706- )

Click highlighted areas on diagram

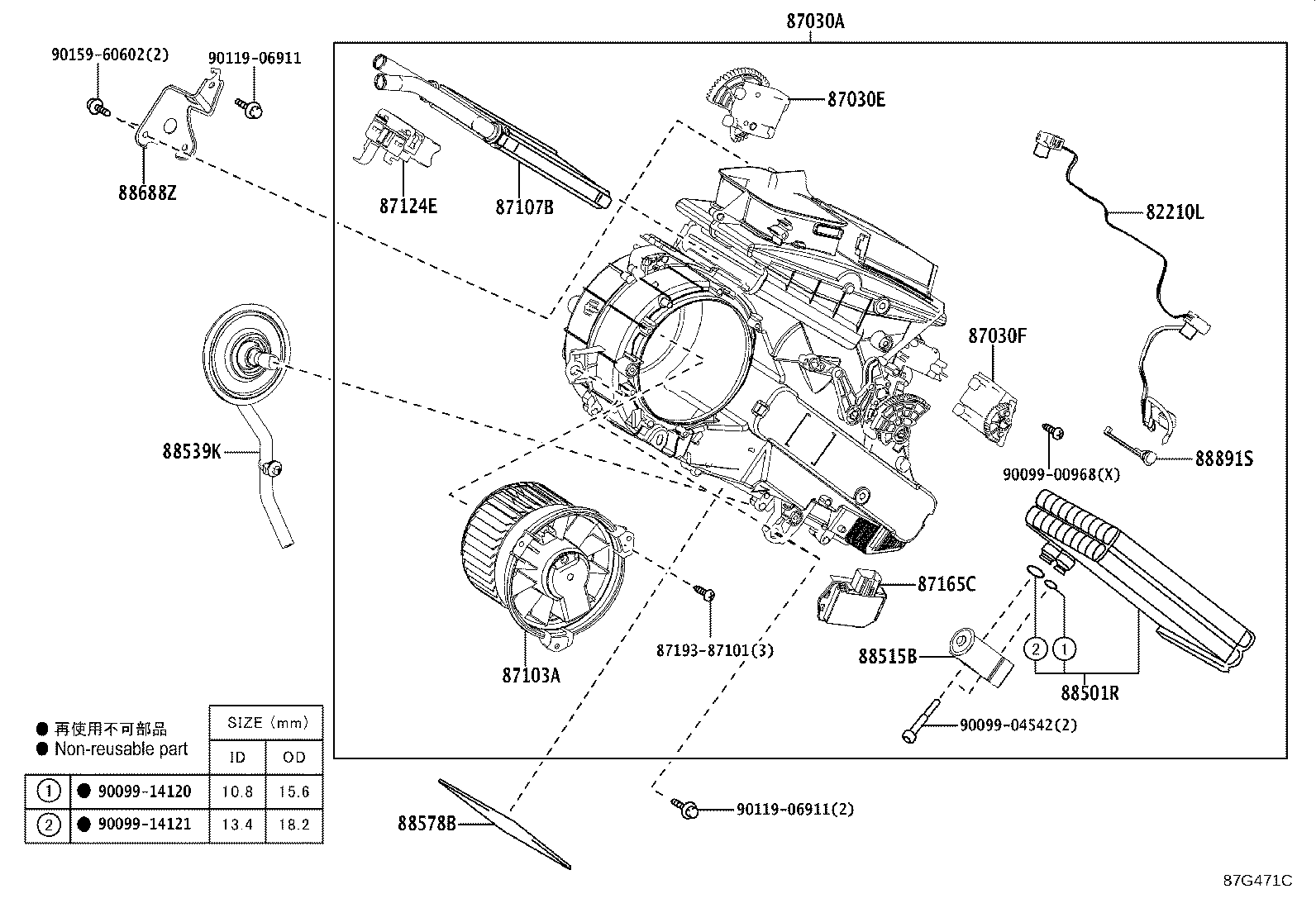

REAR,W(HEATER)

diagram 82210L 87030A 87030E 87030F 87103A 87107B 87124E 87165C 8719387101 88501R 88515B 88539K 88578B 88688Z 88891S 9009900968 9009904542 9009914120 9009914121 9011906911 9011906911 9015960602
Part # Description Qty Price
87030A - UNIT ASSY, COOLING, REAR
88500-28060

ZRR80..NOAH

 1
87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN
87103-28111

ZRR80

 1
87165C - CONTROL, BLOWER MOTOR
87165-36010

ZRR80

 1
87165-28020

ZRR80

 1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-28370

ZRR80

 1
88515B - VALVE, REAR COOLING UNIT EXPANSION
88515-28210

ZRR80

 1
88539K - HOSE, DRAIN COOLER
88539-28380

ZRR80

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-28490

ZRR80

 1
88688Z - BRACKET
88688-28A30

ZRR80

 1
Common parts
87193-87101
90099-00968
90099-04542
90099-14120
90099-14121
90119-06911
90159-60602
