ZRR80R-APXSP (2017)
Toyota Noah/Voxy
Production
Jun 2017
-
Sep 9999
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1401-2005)

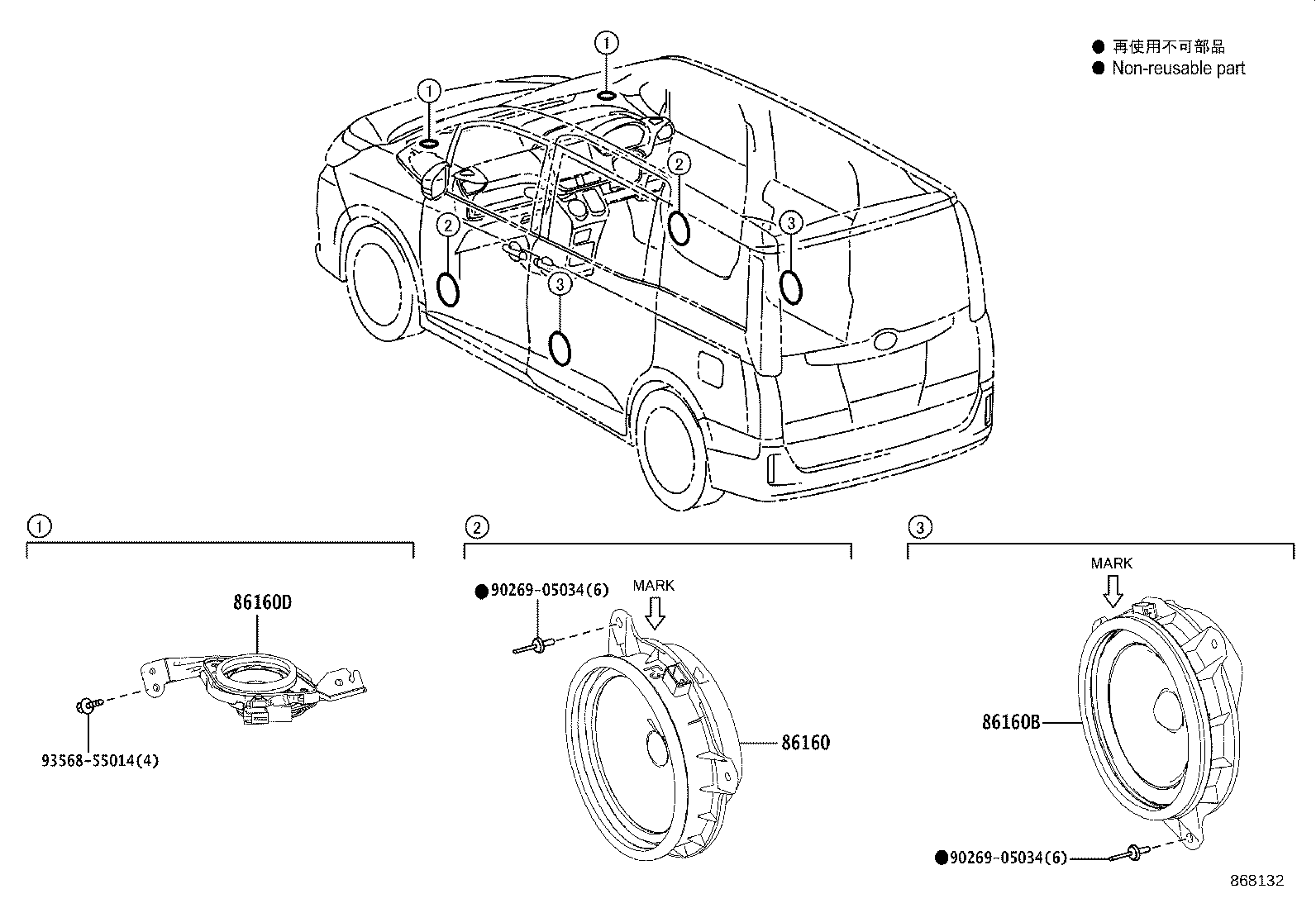

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-52300 |
ZRR80 MARK = F5 |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-52300 |
ZRR80 MARK = F5 |
2 | ||
| 86150-28170 |
ZRR80 |
2 | ||
| 86160Q - SPEAKER ASSY, ROOF | ||||
| 86150-28161 |
ZRR80 |
2 | ||
| Common parts | ||||
| 90159-50032 | ||||
| 90269-05034 | ||||
(2005- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-52300 |
ZRR80 MARK = F5 |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-52300 |
ZRR80 MARK = F5 |
2 | ||
| 86150-28170 |
ZRR80 |
2 | ||
| 86160D - SPEAKER ASSY, STEREO COMPONENT, FRONT | ||||
| 86150-28140 |
ZRR80 RH |
1 | ||
| 86150-28150 |
ZRR80 LH |
1 | ||
| Common parts | ||||
| 90269-05034 | ||||
| 93568-55014 | ||||
