ZRR80R-APXSP (2017)
Toyota Noah/Voxy
Production
Jun 2017
-
Sep 9999
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1706- )

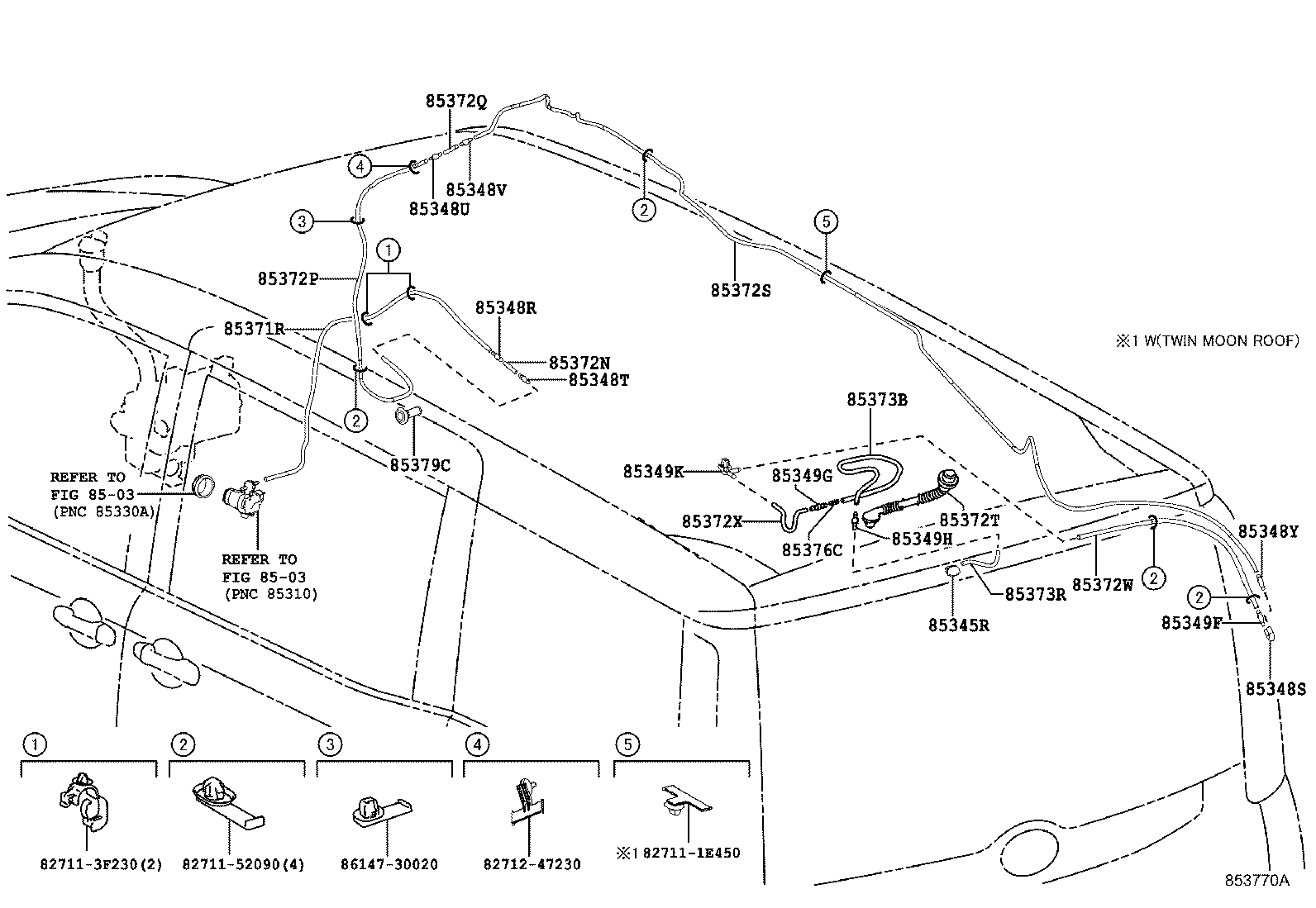

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85345R - NOZZLE, REAR WASHER | ||||
| 85391-28170 |
ZRR80 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
ZRR80 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85375-33040 |
ZRR80 |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
ZRR80 |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
ZRR80 |
1 | ||
| 85348V - JOINT, REAR WASHER HOSE, NO.4 | ||||
| 85349-89122 |
ZRR80 |
1 | ||
| 85348Y - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
ZRR80 |
1 | ||
| 85349F - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
ZRR80 |
1 | ||
| 85349G - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85375-10260 |
ZRR80 |
1 | ||
| 85349H - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85375-10260 |
ZRR80 |
1 | ||
| 85349K - JOINT, REAR WASHER ELBOW, NO.2 | ||||
| 85377-35160 |
ZRR80 |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
ZRR80 *H,L=930 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
ZRR80 *H,L=30 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90446-07001 |
ZRR80 *H,L=980 |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
ZRR80 *H,L=60 |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-59392 |
ZRR80 L=3593 |
1 | ||
| 85372T - GROMMET, WASHER | ||||
| 85373-28080 |
ZRR80 |
1 | ||
| 85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90446-07001 |
ZRR80 *H,L=450 |
1 | ||
| 85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90099-33299 |
ZRR80 *H,L=140 |
1 | ||
| 85373B - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33299 |
ZRR80 *H,L=530 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
ZRR80 *H,L=105 |
1 | ||
| 85376C - SPRING, WASHER HOSE | ||||
| 85376-33050 |
ZRR80 |
1 | ||
| 85379C - GROMMET, REAR WASHER HOSE NO.1 | ||||
| 85379-16180 |
ZRR80 |
1 | ||
| Common parts | ||||
| 82711-1E450 | ||||
| 82711-3F230 | ||||
| 82711-52090 | ||||
| 82712-47230 | ||||
| 86147-30020 | ||||
| Linked diagrams | ||||
| 8503 | ||||
