ZRR80R-APXSP (2017)

Toyota Noah/Voxy

Production Jun 2017 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1706- )NOAH

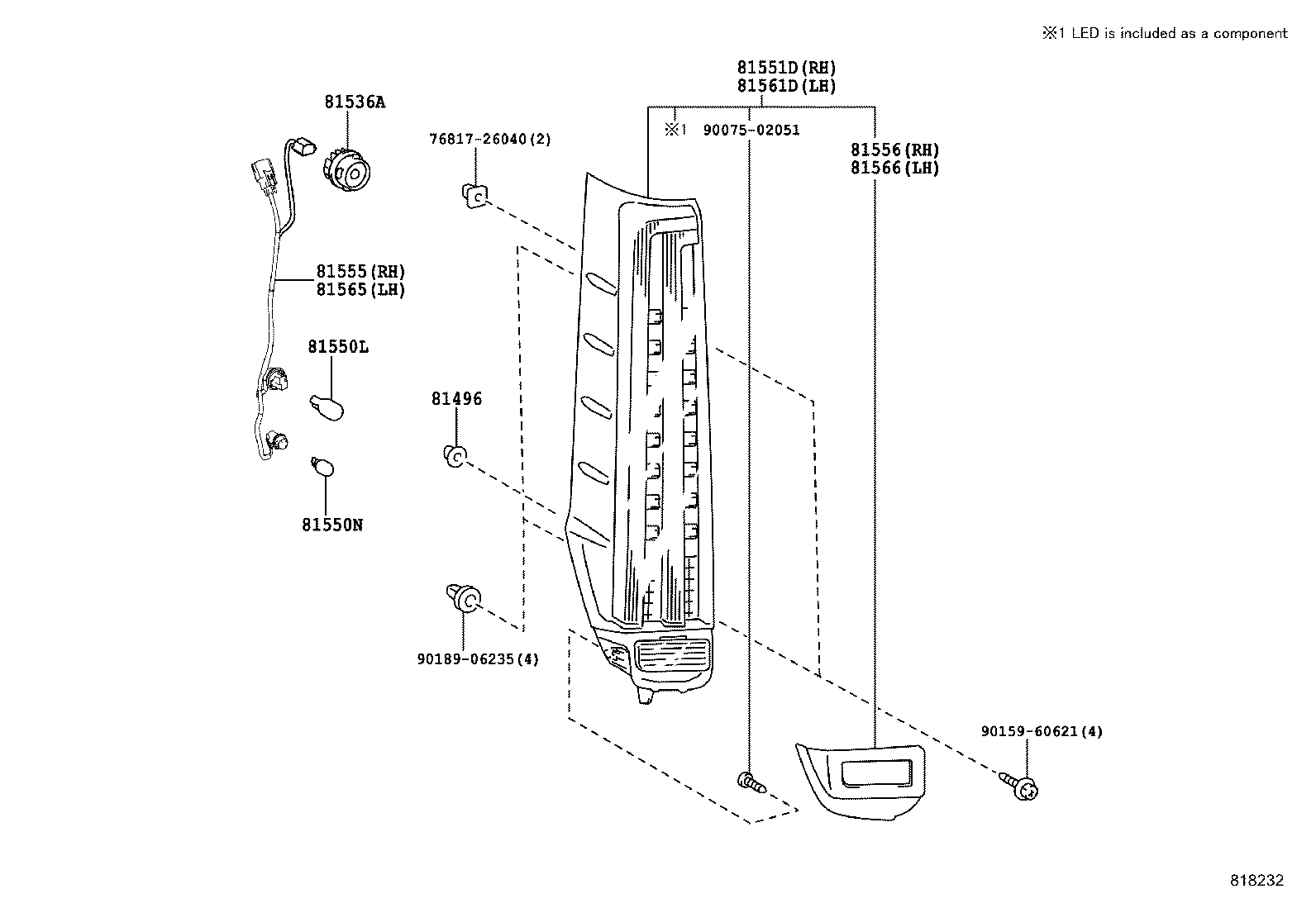

Click highlighted areas on diagram

diagram 7681726040 81496 81536A 81550L 81550N 81551D 81555 81556 81561D 81565 81566 9007502051 9015960621 9018906235
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-52020

ZRR80

 2
81536A - LED, REAR COMBINATION LAMP
81536-15120

ZRR80..NOAH

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15021

ZRR80

12V 21W,AMBER

 2
81550N - BULB, BACK UP LAMP
90981-11059

ZRR80

12V 16W

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-V1030

ZRR80..NOAH

 1
81551-28691

ZRR80..NOAH

 1
81551-V1031

ZRR80..NOAH

 1
81551-28690

ZRR80..NOAH

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-28690

ZRR80..NOAH

 1
81556 - RIM, REAR COMBINATION LAMP, RH
81556-28690

ZRR80..NOAH

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-28690

ZRR80..NOAH

 1
81561-V1031

ZRR80..NOAH

 1
81561-V1030

ZRR80..NOAH

 1
81561-28691

ZRR80..NOAH

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-28690

ZRR80..NOAH

 1
81566 - RIM, REAR COMBINATION LAMP, LH
81566-28690

ZRR80..NOAH

 1
Common parts
76817-26040
90075-02051
90159-60621
90189-06235
