ZRR80R-APXSP (2017)
Toyota Noah/Voxy
Production
Jun 2017
-
Sep 9999
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1706- )NOAH

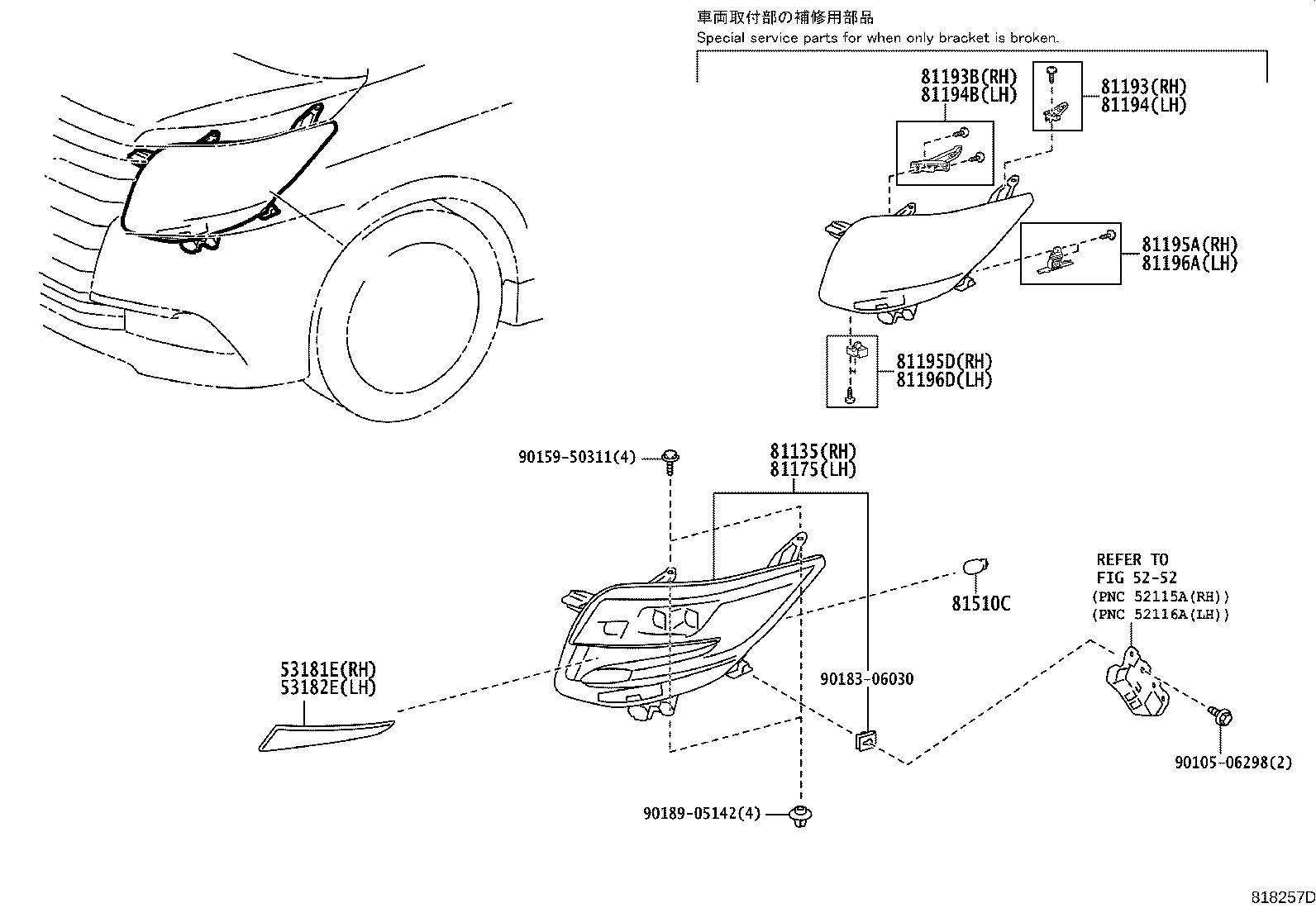

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53181E - COVER, HEADLAMP, RH | ||||
| 53181-28130B0 |
ZRR80..X SILVER ME.,1F7 |
1 | ||
| 53181-28130A1 |
ZRR80..X LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 53181-28130D0 |
ZRR80..X DEEP RED M.M.,3R9 |
1 | ||
| 53181-28130A0 |
ZRR80..X WHITE PEARL CS.,070 |
1 | ||
| 53181-28130C0 |
ZRR80..X BLACK,202 |
1 | ||
| 53181-28140 |
ZRR80..SI PLATING |
1 | ||
| 53181-28130E0 |
ZRR80..X AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 53182E - COVER, HEADLAMP, LH | ||||
| 53182-28130C0 |
ZRR80..X BLACK,202 |
1 | ||
| 53182-28140 |
ZRR80..SI PLATING |
1 | ||
| 53182-28130A0 |
ZRR80..X WHITE PEARL CS.,070 |
1 | ||
| 53182-28130D0 |
ZRR80..X DEEP RED M.M.,3R9 |
1 | ||
| 53182-28130A1 |
ZRR80..X LUXURY WHITE PEARL CS.GF.,086 |
1 | ||
| 53182-28130E0 |
ZRR80..X AVANT-GARDE BRONZE ME.,4V8 |
1 | ||
| 53182-28130B0 |
ZRR80..X SILVER ME.,1F7 |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-28G40 |
ZRR80..X |
1 | ||
| 81130-28G50 |
ZRR80..SI |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-28G40 |
ZRR80..X |
1 | ||
| 81170-28G50 |
ZRR80..SI |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-28170 |
ZRR80..NOAH |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-28180 |
ZRR80..NOAH |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-28170 |
ZRR80..NOAH |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-28180 |
ZRR80..NOAH |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-28050 |
ZRR80..NOAH |
1 | ||
| 81195D - RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2 | ||||
| 81195-28060 |
ZRR80..NOAH |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-28050 |
ZRR80..NOAH |
1 | ||
| 81196D - RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2 | ||||
| 81196-28060 |
ZRR80..NOAH |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
ZRR80 12V 21W,AMBER |
2 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 90159-50311 | ||||
| 90183-06030 | ||||
| 90189-05142 | ||||
| Linked diagrams | ||||
| 5252 | ||||
