ZRR80R-APXSP (2017)
Toyota Noah/Voxy
Production
Jun 2017
-
Sep 9999
Engine
3ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

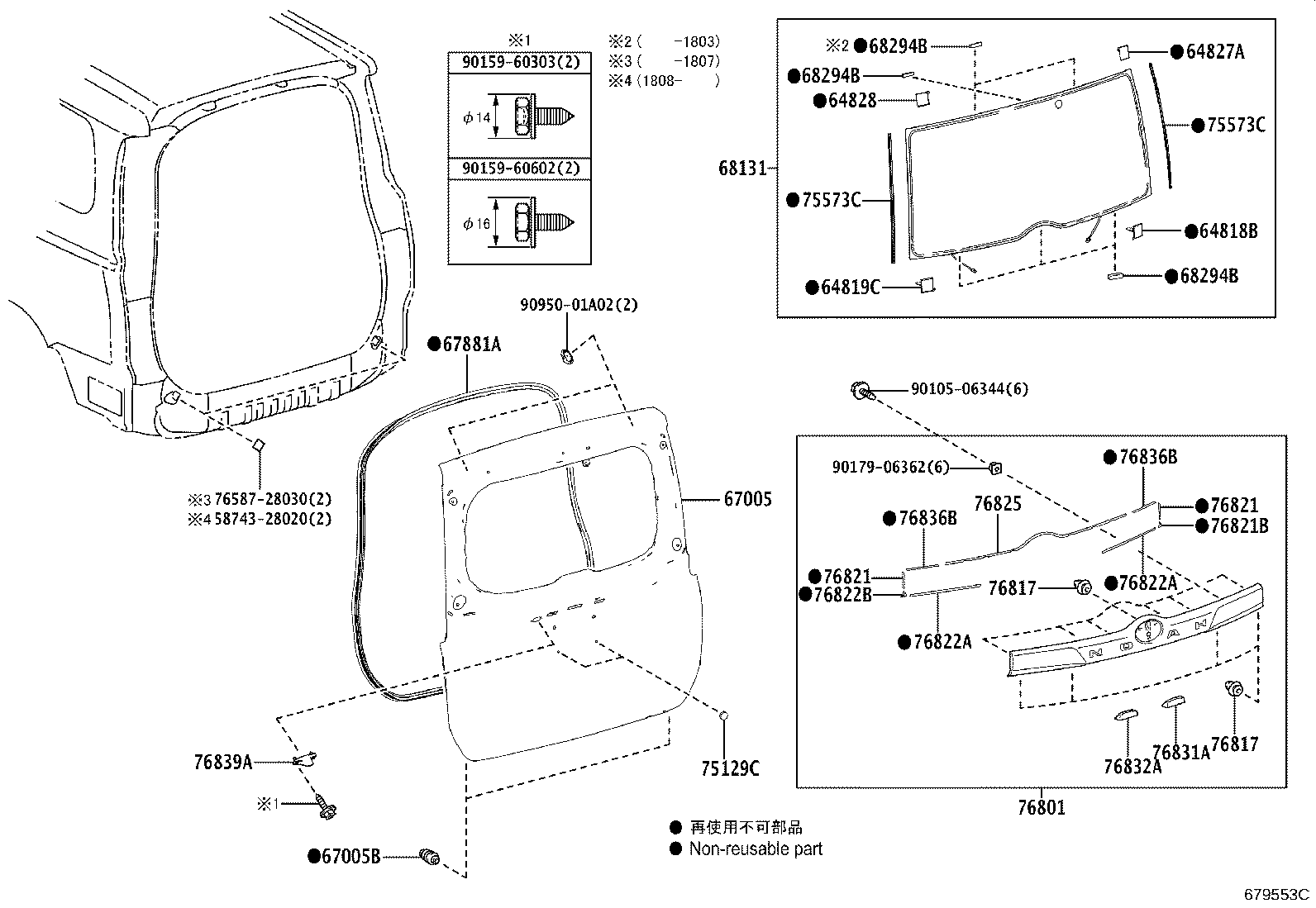

ILLUST NO. 1 OF 2(1706- )NOAH
Click highlighted areas on diagram
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-28040 |
ZRR80 |
1 | ||
| 64819C - SPACER, BACK DOOR GLASS, NO.2 | ||||
| 64819-28040 |
ZRR80 |
1 | ||
| 64827A - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-28060 |
ZRR80 |
1 | ||
| 64828 - CLIP, BACK WINDOW GLASS, LH | ||||
| 64828-28050 |
ZRR80 |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-28E50 |
ZRR80..X |
1 | ||
| 67005-28E60 |
ZRR80..07S |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-10042 |
ZRR80 |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-28140 |
ZRR80 |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-28720 |
ZRR80..NOAH |
1 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
ZRR80 |
4 | ||
| 68294-26030 |
ZRR80 |
6 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
ZRR80 |
4 | ||
| 68294-26030 |
ZRR80 |
6 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
ZRR80 |
4 | ||
| 68294-26030 |
ZRR80 |
6 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-26010 |
ZRR80 |
2 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-28050 |
ZRR80 |
2 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-28050 |
ZRR80 |
2 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-28611 |
ZRR80..NOAH PLATED |
1 | ||
| 76801-28610 |
ZRR80..NOAH PLATED |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 90467-09206 |
ZRR80 |
11 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 90467-09206 |
ZRR80 |
11 | ||
| 76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER | ||||
| 76825-28130 |
ZRR80..NOAH |
2 | ||
| 76822-28050 |
ZRR80..NOAH LH |
1 | ||
| 76821-28050 |
ZRR80..NOAH RH |
1 | ||
| 76821 - PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER | ||||
| 76825-28130 |
ZRR80..NOAH |
2 | ||
| 76822-28050 |
ZRR80..NOAH LH |
1 | ||
| 76821-28050 |
ZRR80..NOAH RH |
1 | ||
| 76821B - PROTECTOR, BACK DOOR GARNISH SIDE, RH | ||||
| 76821-28060 |
ZRR80..NOAH |
1 | ||
| 76822A - PROTECTOR, BACK DOOR GARNISH MOULDING, LWR | ||||
| 76836-28060 |
ZRR80..NOAH |
2 | ||
| 76822A - PROTECTOR, BACK DOOR GARNISH MOULDING, LWR | ||||
| 76836-28060 |
ZRR80..NOAH |
2 | ||
| 76822B - PROTECTOR, BACK DOOR GARNISH SIDE, LH | ||||
| 76822-28060 |
ZRR80..NOAH |
1 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76835-28070 |
ZRR80..NOAH |
1 | ||
| 76831A - COVER, BACK DOOR FINISH PANEL, RH | ||||
| 76831-28010 |
ZRR80 |
1 | ||
| 76832A - COVER, BACK DOOR FINISH PANEL, LH | ||||
| 76832-28010 |
ZRR80 |
1 | ||
| 76836B - PROTECTOR, BACK DOOR FINISH PANEL, NO.2 | ||||
| 76836-28040 |
ZRR80 |
2 | ||
| 76836B - PROTECTOR, BACK DOOR FINISH PANEL, NO.2 | ||||
| 76836-28040 |
ZRR80 |
2 | ||
| 76839A - COVER, BACK DOOR GARNISH | ||||
| 76839-28060 |
ZRR80 |
1 | ||
| Common parts | ||||
| 58743-28020 | ||||
| 76587-28030 | ||||
| 90105-06344 | ||||
| 90159-60303 | ||||
| 90159-60602 | ||||
| 90179-06362 | ||||
| 90950-01A02 | ||||
