ZZW30R-AKMQHW (1999)

Toyota Mr2

Production Dec 1999 - Aug 2002
Engine 1ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9912-0208)RHD

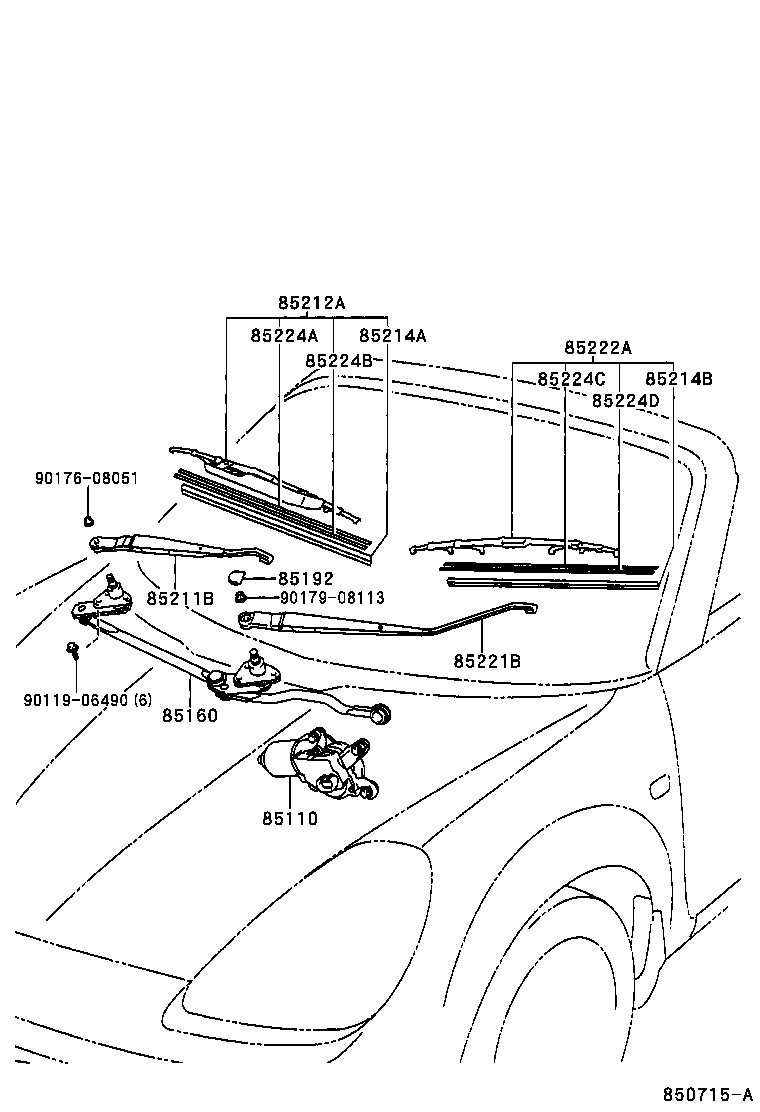

Click highlighted areas on diagram

diagram 85110 85160 85192 85211B 85212A 85214A 85214B 85221B 85222A 85224A 85224B 85224C 85224D 9011906490 9017608051 9017908113
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-17030

ZZW30..RHD..EUR

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-17080

ZZW30..RHD..EUR

 1
85192 - COVER, WINDSHIELD WIPER ARM
85292-12020

ZZW30

 1
85211B - ARM, FRONT WIPER, RH
85211-17090

ZZW30..RHD..EUR

 1
85212A - BLADE, FR WIPER, RH
85212-17130

ZZW30..RHD..EUR

 1
85214A - RUBBER, WIPER, RH
85214-30340

ZZW30..RHD..EUR

 1
85214B - RUBBER, WIPER, LH
85214-17050

ZZW30..RHD..EUR

 1
85221B - ARM, FRONT WIPER, LH
85221-17080

ZZW30..RHD..EUR

 1
85222A - BLADE, FR WIPER, LH
85222-17050

ZZW30..RHD..EUR

 1
85224A - PLATE, WIPER RUBBER BACKING, NO.1
85224-10180

ZZW30..RHD

 1
85224B - PLATE, WIPER RUBBER BACKING, NO.2
85224-10180

ZZW30..RHD

 1
85224C - PLATE, WIPER RUBBER BACKING, NO.3
85224-35040

ZZW30..RHD

 1
85224D - PLATE, WIPER RUBBER BACKING, NO.4
85224-35040

ZZW30..RHD

 1
Common parts
90119-06490
90176-08051
90179-08113
