ZZW30R-AKMQHW (1999)
Toyota Mr2
Production
Dec 1999
-
Aug 2002
Engine
1ZZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9912- )RHD

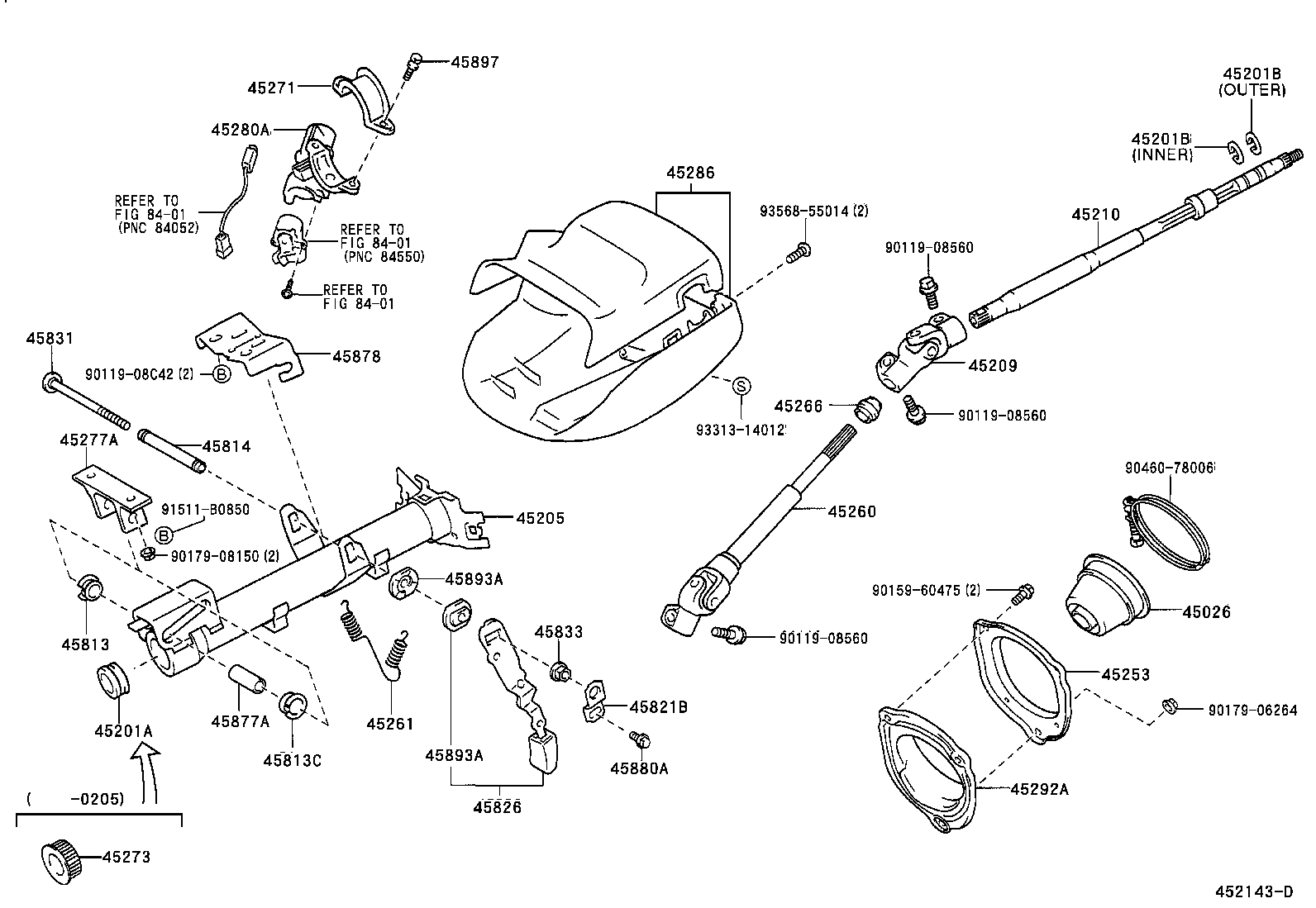

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-17010 |
ZZW30 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 45274-42010 |
ZZW30 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
ZZW30 T=1.20,OUTER |
1 | ||
| 90520-17042 |
ZZW30 T=1.20,INNER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17269 |
ZZW30 T=1.20,OUTER |
1 | ||
| 90520-17042 |
ZZW30 T=1.20,INNER |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-20351 |
ZZW30 |
1 | ||
| 45205-20350 |
ZZW30 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-17020 |
ZZW30 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-20340 |
ZZW30 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45253-17010 |
ZZW30 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-17140 |
ZZW30..RHD |
1 | ||
| 45260-17141 |
ZZW30..RHD |
1 | ||
| 45261 - SPRING, TILT STEERING JUMP UP | ||||
| 45261-20010 |
ZZW30 |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-30010 |
ZZW30 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-16020 |
ZZW30 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-20060 |
ZZW30 |
1 | ||
| 45277A - SUPPORT, TILT STEERING | ||||
| 45277-28030 |
ZZW30 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-17040 |
ZZW30 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-17902C0 |
ZZW30 BLACK,TRIM2#,3#,5# |
1 | ||
| 45292A - COVER, MAIN SHAFT LOWER DUST | ||||
| 45292-17020 |
ZZW30..RHD |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-52010 |
ZZW30 OD=24 |
1 | ||
| 45813C - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-52020 |
ZZW30 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-52010 |
ZZW30 OD=8 |
1 | ||
| 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 | ||||
| 45821-52010 |
ZZW30 |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-20170 |
ZZW30 |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-52010 |
ZZW30 |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-52010 |
ZZW30 |
1 | ||
| 45877A - SPACER, STEERING COLUMN BRACKET | ||||
| 45877-52010 |
ZZW30 |
1 | ||
| 45878 - BRACKET, STEERING COLUMN UPPER SUPPORT | ||||
| 45878-52010 |
ZZW30 |
1 | ||
| 45880A - BOLT(FOR STEERING TILT LEVER) | ||||
| 45832-12010 |
ZZW30 |
1 | ||
| 45893A - STOPPER, TILT STEERING PAWL | ||||
| 45893-52010 |
ZZW30 |
2 | ||
| 45893A - STOPPER, TILT STEERING PAWL | ||||
| 45893-52010 |
ZZW30 |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ZZW30 |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-08C42 | ||||
| 90159-60475 | ||||
| 90179-06264 | ||||
| 90179-08150 | ||||
| 90460-78006 | ||||
| 91511-B0850 | ||||
| 93313-14012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
