ZZW30L-AKGQHW (2000)
Toyota Mr2
Production
Aug 2000
-
Aug 2002
Engine
1ZZFE
Transmission
5FS MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9912-0509)

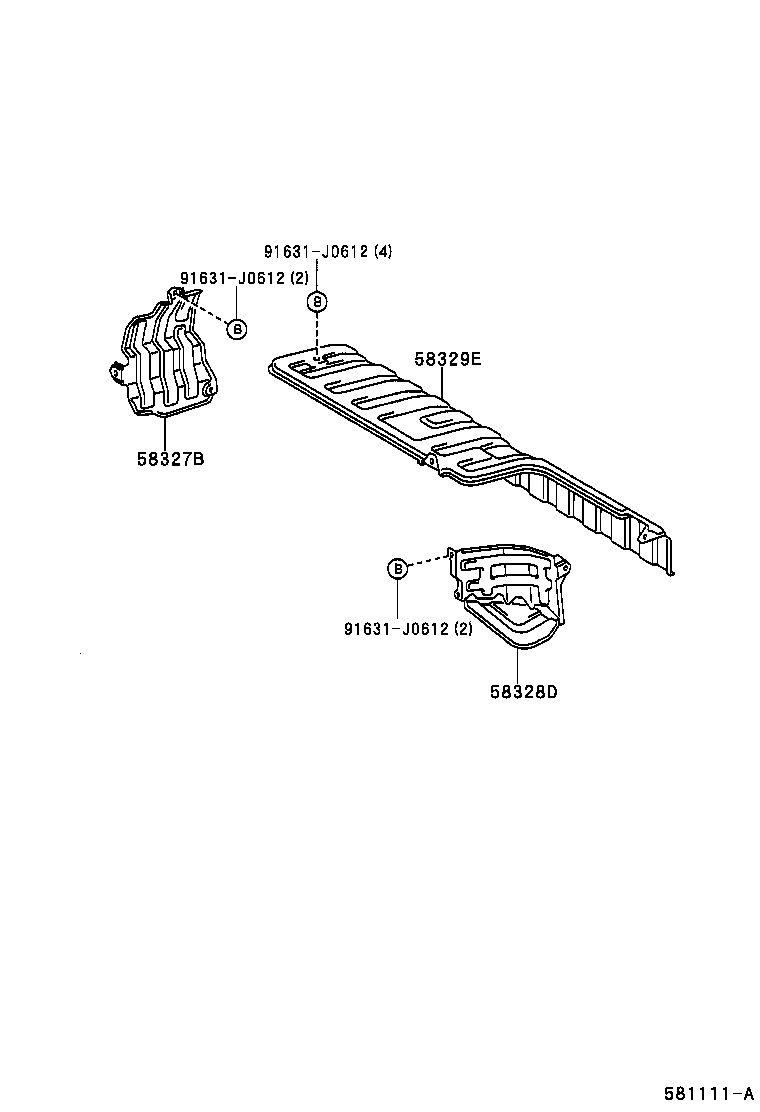

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58327B - INSULATOR, MAIN MUFFLER HEAT | ||||
| 58327-17030 |
ZZW30 |
1 | ||
| 58328D - INSULATOR, MAIN MUFFLER HEAT, LH | ||||
| 58328-17020 |
ZZW30 |
1 | ||
| 58329E - INSULATOR, MAIN MUFFLER HART, REAR UPPER | ||||
| 58329-17010 |
ZZW30 |
1 | ||
| Common parts | ||||
| 91631-J0612 | ||||
