ZZW30L-AKGQHW (2000)
Toyota Mr2
Production
Aug 2000
-
Aug 2002
Engine
1ZZFE
Transmission
5FS MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9912- )

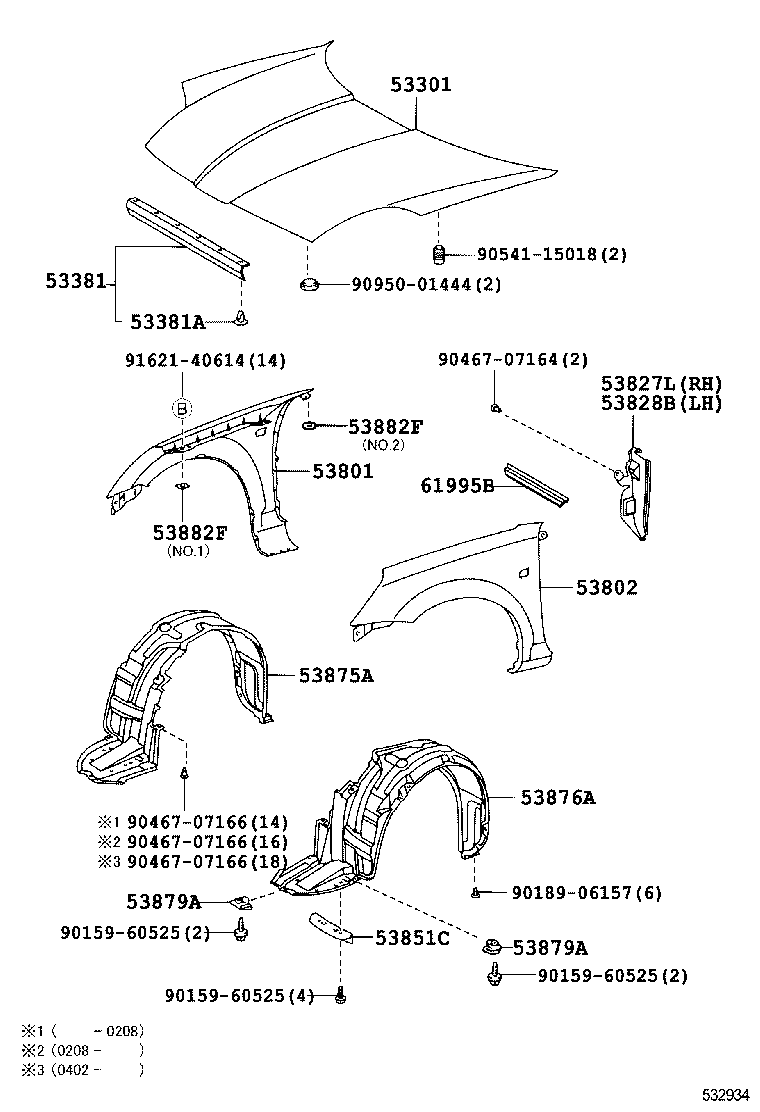

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-17040 |
ZZW30 |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-17020 |
ZZW30 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
ZZW30 |
6 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-17090 |
ZZW30 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-17100 |
ZZW30 |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-17030 |
ZZW30..LHD |
1 | ||
| 53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-17030 |
ZZW30..LHD |
1 | ||
| 53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-47010 |
ZZW30 |
2 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53805-17020 |
ZZW30 |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53806-17020 |
ZZW30 |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-16010 |
ZZW30 |
4 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-16010 |
ZZW30 |
4 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
ZZW30 NO.1 |
4 | ||
| 61667-12100 |
ZZW30 NO.2 |
2 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-16030 |
ZZW30 NO.1 |
4 | ||
| 61667-12100 |
ZZW30 NO.2 |
2 | ||
| 61995B - DAM, FRONT BODY PILLAR, OUTER | ||||
| 61995-17010 |
ZZW30..LHD |
2 | ||
| Common parts | ||||
| 90159-60525 | ||||
| 90189-06157 | ||||
| 90467-07164 | ||||
| 90467-07166 | ||||
| 90541-15018 | ||||
| 90950-01444 | ||||
| 91621-40614 | ||||
