ZZW30L-AKGQHW (2000)

Toyota Mr2

Production Aug 2000 - Aug 2002
Engine 1ZZFE
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )5FS,6FS

Click highlighted areas on diagram

W(STEER SHIFTMATIC)

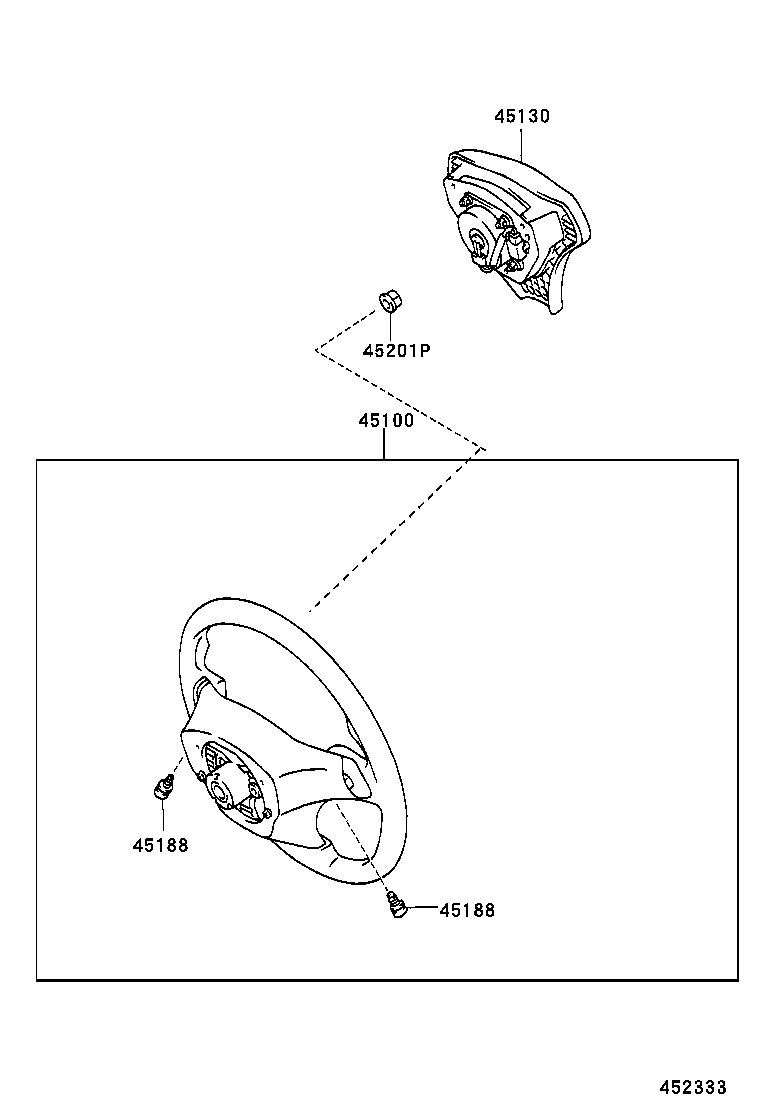

diagram 45100 45130 45188 45188 45201P 8410
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2B690C0

ZZW30

3-SPOKE,LEATHER,BLACK,TRIM2#,3#,4#,5#

 1
45100-2B700C0

ZZW30

3-SPOKE,URETHANE,BLACK,TRIM2#,3#,5#

 1
45100-2B690C0

ZZW30

3-SPOKE,LEATHER,BLACK,TRIM2#,3#,5#

 1
45100-2B710C0

ZZW30..5FS

3-SPOKE,LEATHER,W(STEER SHIFTMATIC),BLACK,TRIM2#,3#,4#,5#

 1
45100-2B700C0

ZZW30..EUR

3-SPOKE,URETHANE,BLACK,TRIM2#,3#,4#,5#

 1
45130 - BUTTON ASSY, HORN
45130-2B430C0

ZZW30

BLACK,TRIM2#,3#,4#,5#

 1
45130-2B430C0

ZZW30

BLACK,TRIM2#,3#,5#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

ZZW30

L=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

ZZW30

L=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

ZZW30

 1
Linked diagrams
8410

(9912- )

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45130 45188 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-2B690C0

ZZW30

3-SPOKE,LEATHER,BLACK,TRIM2#,3#,4#,5#

 1
45100-2B700C0

ZZW30

3-SPOKE,URETHANE,BLACK,TRIM2#,3#,5#

 1
45100-2B690C0

ZZW30

3-SPOKE,LEATHER,BLACK,TRIM2#,3#,5#

 1
45100-2B710C0

ZZW30..5FS

3-SPOKE,LEATHER,W(STEER SHIFTMATIC),BLACK,TRIM2#,3#,4#,5#

 1
45100-2B700C0

ZZW30..EUR

3-SPOKE,URETHANE,BLACK,TRIM2#,3#,4#,5#

 1
45130 - BUTTON ASSY, HORN
45130-2B430C0

ZZW30

BLACK,TRIM2#,3#,4#,5#

 1
45130-2B430C0

ZZW30

BLACK,TRIM2#,3#,5#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

ZZW30

L=18

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60007

ZZW30

L=18

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

ZZW30

 1
