ZZW30L-AKGQHW (2000)
Toyota Mr2
(9912- )
C52,C52M,C56M,C65M,C66,C66M
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31115 - CASE, TRANSAXLE | ||||
| 31115-20040 |
ZZW30 |
1 | ||
| 31115A - SEAL, OIL(FOR TRANSAXLE CASE) | ||||
| 90311-25016 |
ZZW30 |
1 | ||
| 90311-25011 |
ZZW30 |
1 | ||
| 31115B - PLUG, TIGHT(FOR REAR TRANSAXLE CASE) | ||||
| 90331-08002 |
ZZW30 |
1 | ||
| 33449A - MAGNET, TRANSMISSION | ||||
| 33449-12020 |
ZZW30 |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-20160 |
ZZW30 N=35 |
1 | ||
| 41221A - GEAR, REAR DIFFERENTIAL RING | ||||
| 41221-17040 |
ZZW30..EUR |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90105-11040 |
ZZW30 |
8 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-32061 |
ZZW30..EUR |
1 | ||
| 41301-20230 |
ZZW30 W(LSD) |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-32061 |
ZZW30..EUR |
1 | ||
| 41301-20230 |
ZZW30 W(LSD) |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-40094 |
ZZW30 LH |
1 | ||
| 90366-40097 |
ZZW30 RH |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-40094 |
ZZW30 LH |
1 | ||
| 90366-40097 |
ZZW30 RH |
1 | ||
| 41301F - SHIM(FOR REAR DIFFERENTIAL CASE) | ||||
| 90560-41003 |
ZZW30 |
1 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-32010 |
ZZW30..EUR |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-32010 |
ZZW30..EUR |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90564-41018 |
ZZW30 T=2.30,MARK EE |
1 | ||
| 90564-41014 |
ZZW30 T=2.10,MARK AA |
1 | ||
| 90564-41017 |
ZZW30 T=2.25,MARK DD |
1 | ||
| 90564-41016 |
ZZW30 T=2.20,MARK CC |
1 | ||
| 90564-41021 |
ZZW30 T=2.45,MARK HH |
1 | ||
| 90564-41025 |
ZZW30 T=2.65,MARK MM |
1 | ||
| 90564-41015 |
ZZW30 T=2.15,MARK BB |
1 | ||
| 90564-41029 |
ZZW30 T=2.85,MARK RR |
1 | ||
| 90564-41022 |
ZZW30 T=2.50,MARK JJ |
1 | ||
| 90564-41020 |
ZZW30 T=2.40,MARK GG |
1 | ||
| 90564-41023 |
ZZW30 T=2.55,MARK KK |
1 | ||
| 90564-41026 |
ZZW30 T=2.70,MARK NN |
1 | ||
| 90564-41028 |
ZZW30 T=2.80,MARK QQ |
1 | ||
| 90564-41030 |
ZZW30 T=2.90,MARK SS |
1 | ||
| 90564-41024 |
ZZW30 T=2.60,MARK LL |
1 | ||
| 90564-41032 |
ZZW30 T=3.00,MARK UU |
1 | ||
| 90564-41019 |
ZZW30 T=2.35,MARK FF |
1 | ||
| 90564-41027 |
ZZW30 T=2.75,MARK PP |
1 | ||
| 90564-41031 |
ZZW30 T=2.95,MARK TT |
1 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30011 |
ZZW30..EUR |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30011 |
ZZW30..EUR |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-32020 |
ZZW30..EUR |
1 | ||
| 41342B - PIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
ZZW30..EUR |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
ZZW30..EUR |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
ZZW30..EUR |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22020 |
ZZW30..EUR T=1.00,MARK 02 |
2 | ||
| 41361-22150 |
ZZW30..EUR T=1.05,MARK 15 |
2 | ||
| 41361-22040 |
ZZW30..EUR T=1.20,MARK 04 |
2 | ||
| 41361-22160 |
ZZW30..EUR T=1.15,MARK 16 |
2 | ||
| 41361-22030 |
ZZW30..EUR T=1.10,MARK 03 |
2 | ||
| 41361-22140 |
ZZW30..EUR T=0.95,MARK 14 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22020 |
ZZW30..EUR T=1.00,MARK 02 |
2 | ||
| 41361-22150 |
ZZW30..EUR T=1.05,MARK 15 |
2 | ||
| 41361-22040 |
ZZW30..EUR T=1.20,MARK 04 |
2 | ||
| 41361-22160 |
ZZW30..EUR T=1.15,MARK 16 |
2 | ||
| 41361-22030 |
ZZW30..EUR T=1.10,MARK 03 |
2 | ||
| 41361-22140 |
ZZW30..EUR T=0.95,MARK 14 |
2 | ||

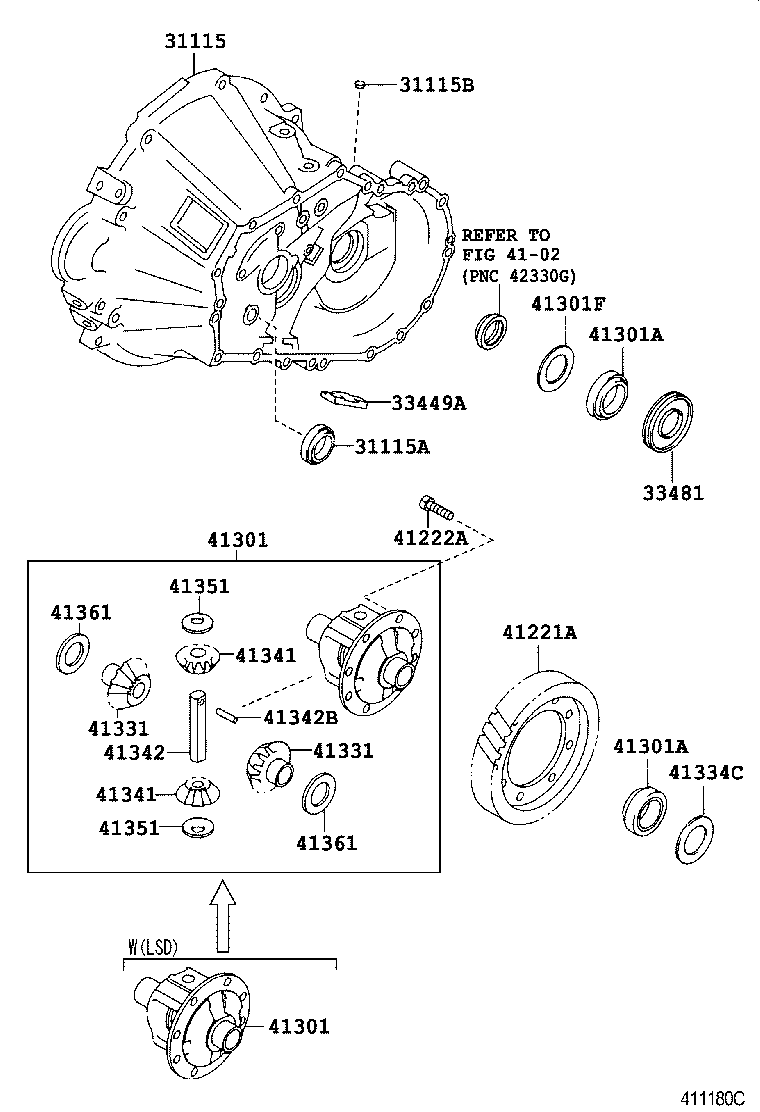

| Linked diagrams | ||||
| 4102 | ||||
