ZZW30L-AKGQHW (2000)

Toyota Mr2

Production Aug 2000 - Aug 2002
Engine 1ZZFE
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9912-0509)5F,6F

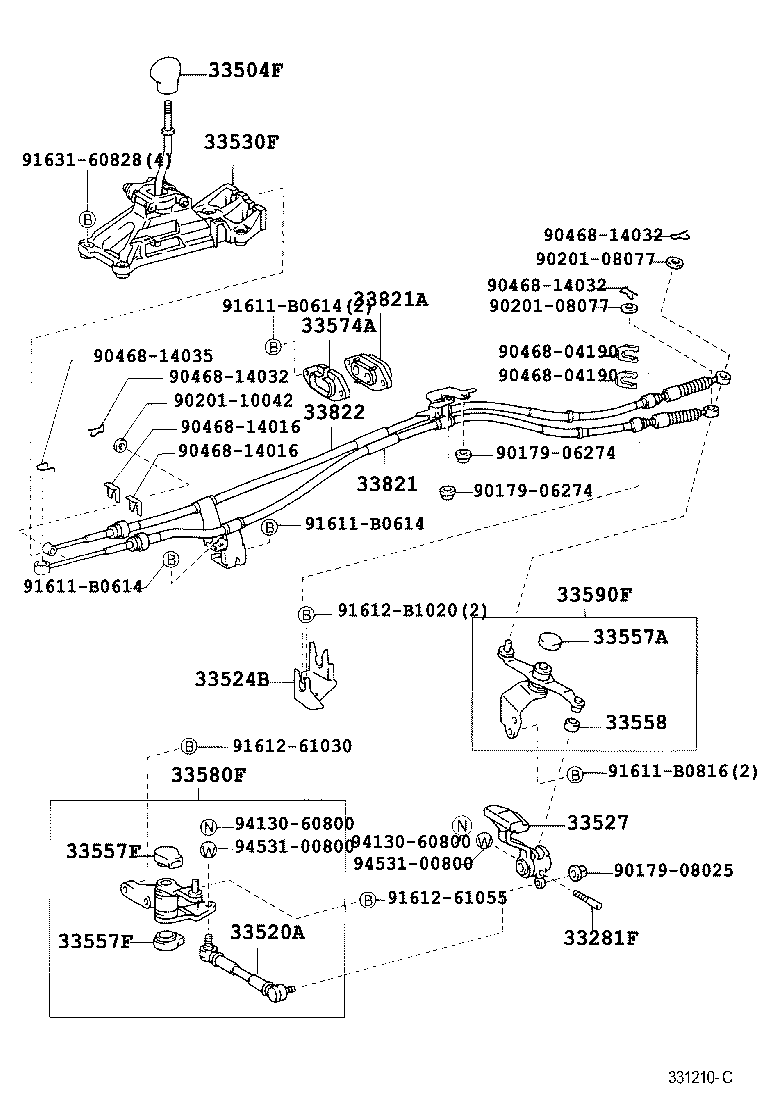

Click highlighted areas on diagram

diagram 33281F 33504F 33520A 33524B 33527 33530F 33557A 33557F 33557F 33558 33574A 33580F 33590F 33821 33821A 33822 9017906274 9017906274 9017908025 9020108077 9020108077 9020110042 9046804190 9046804190 9046814016 9046814016 9046814032 9046814032 9046814032 9046814035 91611B0614 91611B0614 91611B0614 91611B0816 9161261030 9161261055 91612B1020 9163160828 9413060800 9413060800 9453100800 9453100800
Part # Description Qty Price
33281F - PIN, LEVER LOCK (FOR FLOOR SHIFT)
33281-16020

ZZW30..5F

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-14140C1

ZZW30

BLACK,TRIM2#,3#,5#

 1
33504-14120C1

ZZW30

LEATHER,BLACK,TRIM2#,3#,5#

 1
33504-14120C1

ZZW30..5F

LEATHER,BLACK,TRIM2#,3#,4#,5#

 1
33504-14140C1

ZZW30..5F

BLACK,TRIM2#,3#,4#,5#

 1
33504-53020

ZZW30..5FS

 1
33520A - SHAFT ASSY, FLOOR SHIFT CONTROL
33520-17010

ZZW30..5F

 1
33524B - BRACKET, CONTROL CABLE
33524-17010

ZZW30..5F

 1
33527 - LEVER, CONTROL SHIFT (FOR FLOOR SHIFT)
33527-17110

ZZW30..5F

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-17110

ZZW30..5FS

 1
33530-17100

ZZW30..5F

 1
33557A - COVER, SELECTING BELLCRANK DUST, NO.1
33557-20010

ZZW30..5F

 1
33557F - COVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)
33557-17020

ZZW30..5F

 2
33557F - COVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)
33557-17020

ZZW30..5F

 2
33558 - COVER, SELECTING BELLCRANK DUST, NO.2
33557-17010

ZZW30..5F

 1
33574A - RETAINER, SHIFT CABLE GROMMET, NO.1
33574-17030

ZZW30..5F

 1
33580F - BELLCRANK ASSY, SHIFTING (FOR FLOOR SHIFT)
33580-17010

ZZW30..5F

 1
33590F - CRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)
33590-17060

ZZW30..5F

 1
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33821-17100

ZZW30..5F

 1
33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33577-17010

ZZW30..5F

 1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33822-17070

ZZW30..5F

 1
Common parts
90179-06274
90179-08025
90201-08077
90201-10042
90468-04190
90468-14016
90468-14032
90468-14035
91611-B0614
91611-B0816
91612-61030
91612-61055
91612-B1020
91631-60828
94130-60800
94531-00800
