ZZW30L-AKGQHW (2000)
Toyota Mr2
Production
Aug 2000
-
Aug 2002
Engine
1ZZFE
Transmission
5FS MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9912-0509)5F,6F

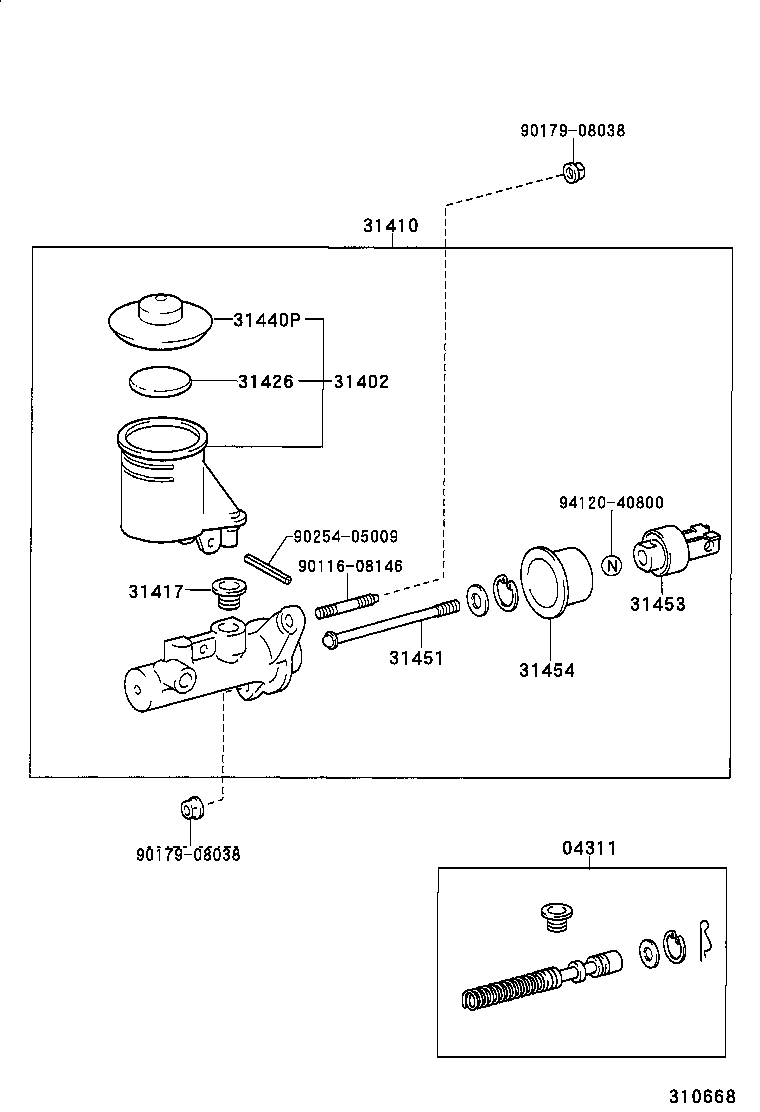

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-12110 |
ZZW30..5F |
1 | ||
| 31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER | ||||
| 31402-35030 |
ZZW30..LHD..5F |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31410-17120 |
ZZW30..LHD..5F |
1 | ||
| 31417 - GROMMET, CLUTCH RESERVOIR | ||||
| 31417-35010 |
ZZW30..5F |
1 | ||
| 31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR | ||||
| 31426-30011 |
ZZW30..5F |
1 | ||
| 31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20040 |
ZZW30..5F |
1 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-24030 |
ZZW30..LHD..5F |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-17010 |
ZZW30..5F |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-16010 |
ZZW30..5F |
1 | ||
| Common parts | ||||
| 90116-08146 | ||||
| 90179-08038 | ||||
| 90254-05009 | ||||
| 94120-40800 | ||||
