ZZW30L-AKGQHW (2000)

Toyota Mr2

Production Aug 2000 - Aug 2002
Engine 1ZZFE
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9912-0208)

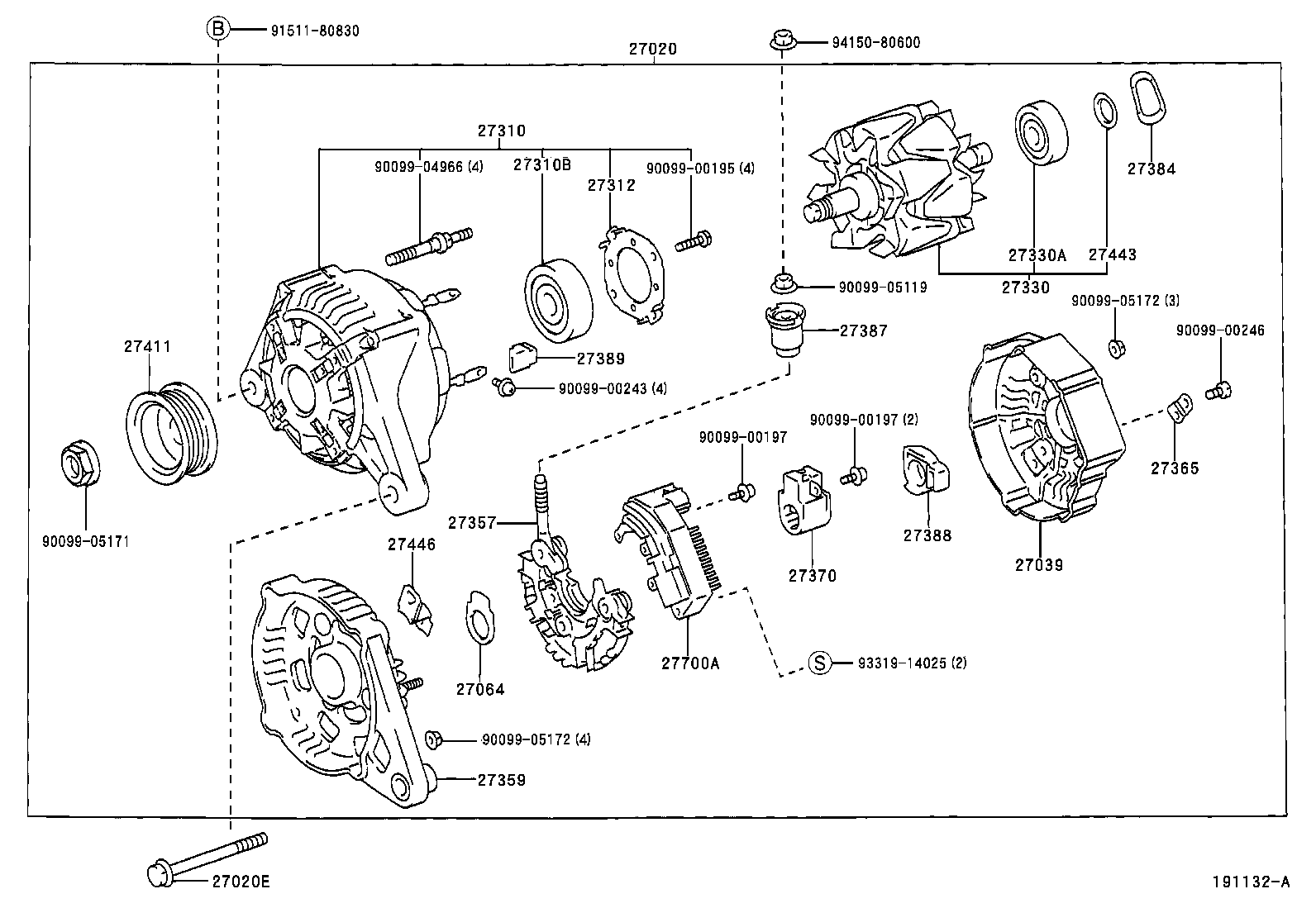

Click highlighted areas on diagram

12V 80A

diagram 27020 27020E 27039 27064 27310 27310B 27312 27330 27330A 27357 27359 27365 27370 27384 27387 27388 27389 27411 27443 27446 27700A 9009900195 9009900197 9009900197 9009900243 9009900246 9009904966 9009905119 9009905171 9009905172 9009905172 9151180830 9331914025 9415080600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-22100

1ZZFE..ZZW30..EUR

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10075

1ZZFE..ZZW30

 1
27039 - COVER, ALTERNATOR REAR END
27039-46190

1ZZFE..ZZW30

 1
27039-22050

1ZZFE..ZZW30

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

1ZZFE..ZZW30

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-22060

1ZZFE..ZZW30

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10219

1ZZFE..ZZW30

 1
27312 - PLATE, RETAINER
27312-42010

1ZZFE..ZZW30

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-74550

1ZZFE..ZZW30

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

1ZZFE..ZZW30

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-22050

1ZZFE..ZZW30

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-22040

1ZZFE..ZZW30

 1
27365 - PLATE, TERMINAL
27365-55080

1ZZFE..ZZW30

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

1ZZFE..ZZW30

 1
27384 - WASHER
27384-50030

1ZZFE..ZZW30

 1
27387 - INSULATOR, TERMINAL
27387-42021

1ZZFE..ZZW30

 1
27388 - COVER, ALTERNATOR BRUSH
27388-42010

1ZZFE..ZZW30

 1
27389 - INSULATOR, TERMINAL
27389-42010

1ZZFE..ZZW30

 4
27411 - PULLEY, ALTERNATOR
27411-50050

1ZZFE..ZZW30

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

1ZZFE..ZZW30

 1
27446 - CLIP, ALTERNATOR CORD
27446-22040

1ZZFE..ZZW30

 1
27700A - REGULATOR ASSY, GENERATOR
27700-46060

1ZZFE..ZZW30..EUR

 1
Common parts
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05171
90099-05172
91511-80830
93319-14025
94150-80600
