ZZW30L-AKGQHW (2000)

Toyota Mr2

Production Aug 2000 - Aug 2002
Engine 1ZZFE
Transmission 5FS MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9912-0509)

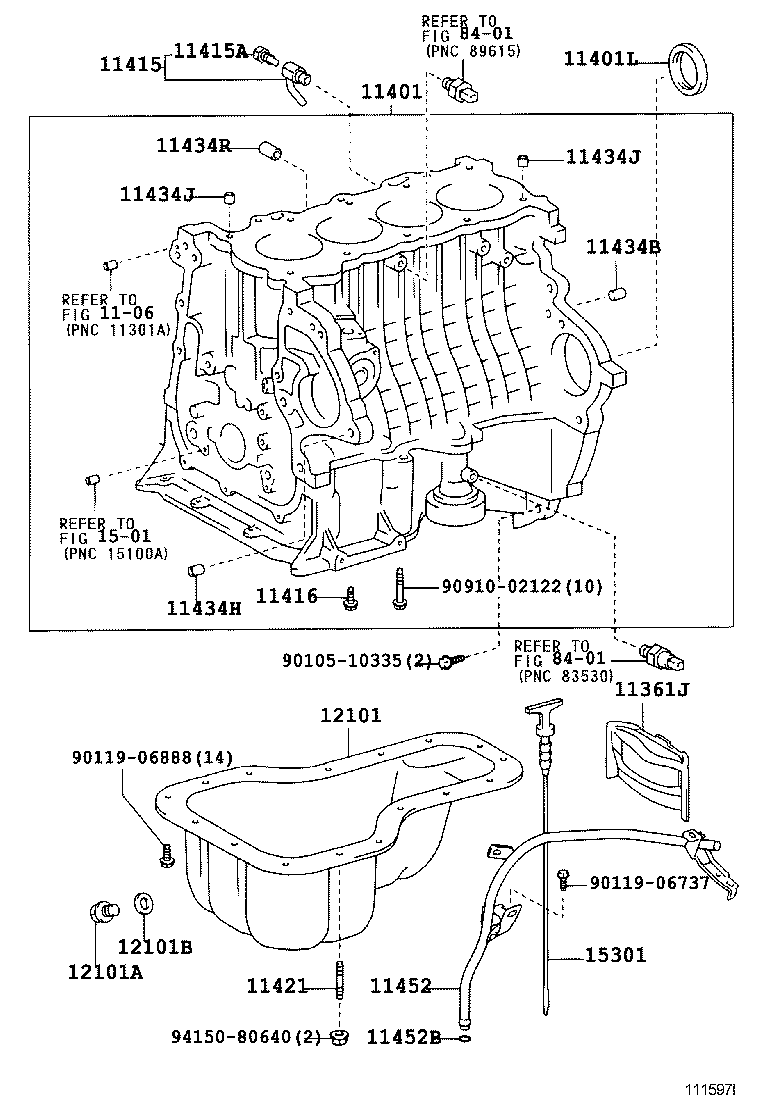

Click highlighted areas on diagram

diagram 1106 11361J 11401 11401L 11415 11415A 11416 11421 11434B 11434H 11434J 11434J 11434R 11452 11452B 12101 12101A 12101B 1501 15301 8401 8401 9010510335 9011906737 9011906888 9091002122 9415080640
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-22021

1ZZFE..ZZW30

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-29065

1ZZFE..ZZW30

 1
11410-29086

1ZZFE..ZZW30

 1
11401L - SEAL, ENGINE REAR OIL
90311-76001

1ZZFE..ZZW30

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09107

1ZZFE..ZZW30

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

1ZZFE..ZZW30

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-08363

1ZZFE..ZZW30

 10
11421 - BOLT, STUD(FOR OIL PAN)
90126-06010

1ZZFE..ZZW30

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

1ZZFE..ZZW30

L=22,OD=10

 2
11434H - PIN, RING (FOR TIMING BELT COVER SET)
90253-14003

1ZZFE..ZZW30

 1
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

1ZZFE..ZZW30

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

1ZZFE..ZZW30

 2
11434R - PIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)
90250-06003

1ZZFE..ZZW30

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-22040

1ZZFE..ZZW30

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010

1ZZFE..ZZW30

 1
12101 - PAN SUB-ASSY, OIL
12101-22024

1ZZFE..ZZW30

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12026

1ZZFE..ZZW30

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1ZZFE..ZZW30

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-22040

1ZZFE..ZZW30

 1
Common parts
90105-10335
90119-06737
90119-06888
90910-02122
94150-80640
Linked diagrams
1106
1501
8401
