ZZW30L-AKFQHW (2002)
Toyota Mr2

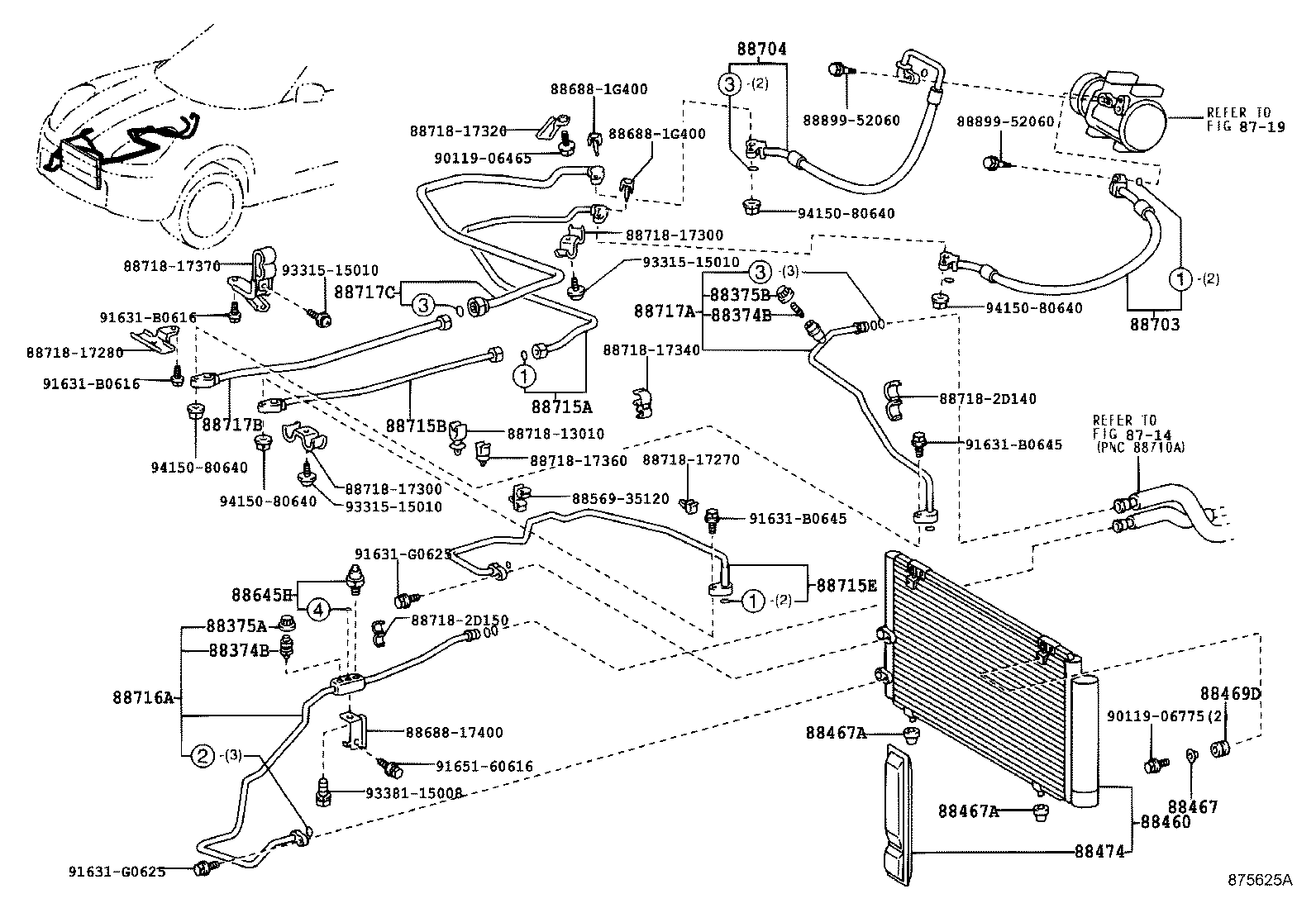

ILLUST NO. 2 OF 2(9912- )
O RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

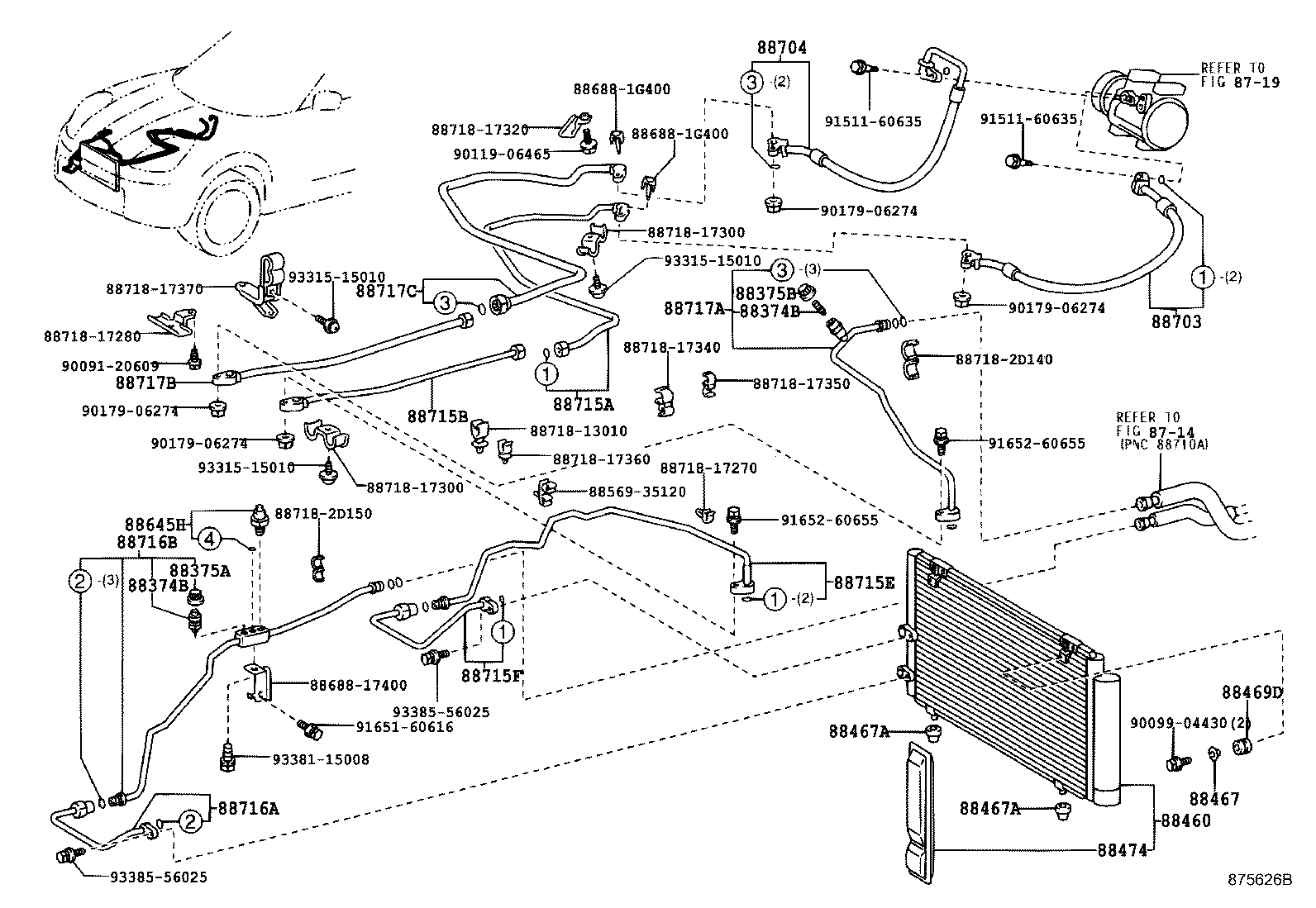

ILLUST NO. 1 OF 2(0208- )LHD
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ZZW30 |
1 | ||
| 88374-30010 |
ZZW30 |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ZZW30 |
1 | ||
| 88374-30010 |
ZZW30 |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
ZZW30 |
1 | ||
| 88375-30280 |
ZZW30 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
ZZW30 |
1 | ||
| 88375-30290 |
ZZW30 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-17140 |
ZZW30..LHD |
1 | ||
| 88460-17130 |
ZZW30..LHD |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-16100 |
ZZW30 |
2 | ||
| 88467-16100 |
ZZW30 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-20190 |
ZZW30 |
2 | ||
| 88467-20190 |
ZZW30 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-20190 |
ZZW30 |
2 | ||
| 88467-20190 |
ZZW30 |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-16020 |
ZZW30 |
2 | ||
| 88469-16020 |
ZZW30 |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
ZZW30 |
1 | ||
| 88474-47010 |
ZZW30 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-17020 |
ZZW30 |
1 | ||
| 88645-17020 |
ZZW30 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-17050 |
ZZW30 |
1 | ||
| 88703-17060 |
ZZW30 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-17050 |
ZZW30 |
1 | ||
| 88704-17060 |
ZZW30 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-17360 |
ZZW30 |
1 | ||
| 88715-17300 |
ZZW30 DEALER OPTION |
1 | ||
| 88715-17300 |
ZZW30 |
1 | ||
| 88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B | ||||
| 88715-17290 |
ZZW30 |
1 | ||
| 88715-17290 |
ZZW30 |
1 | ||
| 88715E - PIPE, COOLER REFRIGERANT DISCHARGE, E | ||||
| 88715-17350 |
ZZW30..LHD DEALER OPTION |
1 | ||
| 88715-17311 |
ZZW30..LHD MAKER OPTION |
1 | ||
| 88715-17310 |
ZZW30..LHD MAKER OPTION |
1 | ||
| 88715-17310 |
ZZW30..LHD MAKER OPTION |
1 | ||
| 88715-17350 |
ZZW30..LHD DEALER OPTION |
1 | ||
| 88715-17351 |
ZZW30..LHD DEALER OPTION |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-17260 |
ZZW30..LHD DEALER OPTION |
1 | ||
| 88716-17240 |
ZZW30..LHD MAKER OPTION |
1 | ||
| 88716-17240 |
ZZW30..LHD MAKER OPTION |
1 | ||
| 88716-17261 |
ZZW30..LHD DEALER OPTION |
1 | ||
| 88716-17260 |
ZZW30..LHD DEALER OPTION |
1 | ||
| 88716-17241 |
ZZW30..LHD MAKER OPTION |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-17230 |
ZZW30..LHD |
1 | ||
| 88717-17230 |
ZZW30..LHD |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-17240 |
ZZW30 |
1 | ||
| 88717-17240 |
ZZW30 |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-17260 |
ZZW30 |
1 | ||
| 88717-17250 |
ZZW30 DEALER OPTION |
1 | ||
| 88717-17250 |
ZZW30 |
1 | ||
| Common parts | ||||
| 88569-35120 | ||||
| 88688-17400 | ||||
| 88688-1G400 | ||||
| 88718-13010 | ||||
| 88718-17270 | ||||
| 88718-17280 | ||||
| 88718-17300 | ||||
| 88718-17320 | ||||
| 88718-17340 | ||||
| 88718-17360 | ||||
| 88718-17370 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88899-52060 | ||||
| 90119-06465 | ||||
| 90119-06775 | ||||
| 91631-B0616 | ||||
| 91631-B0645 | ||||
| 91631-G0625 | ||||
| 91651-60616 | ||||
| 93315-15010 | ||||
| 93381-15008 | ||||
| 94150-80640 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 1 OF 2(0208- )LHD
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ZZW30 |
1 | ||
| 88374-30010 |
ZZW30 |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ZZW30 |
1 | ||
| 88374-30010 |
ZZW30 |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
ZZW30 |
1 | ||
| 88375-30280 |
ZZW30 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
ZZW30 |
1 | ||
| 88375-30290 |
ZZW30 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-17140 |
ZZW30..LHD |
1 | ||
| 88460-17130 |
ZZW30..LHD |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-16100 |
ZZW30 |
2 | ||
| 88467-16100 |
ZZW30 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-20190 |
ZZW30 |
2 | ||
| 88467-20190 |
ZZW30 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-20190 |
ZZW30 |
2 | ||
| 88467-20190 |
ZZW30 |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88469-16020 |
ZZW30 |
2 | ||
| 88469-16020 |
ZZW30 |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
ZZW30 |
1 | ||
| 88474-47010 |
ZZW30 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-17020 |
ZZW30 |
1 | ||
| 88645-17020 |
ZZW30 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-17050 |
ZZW30 |
1 | ||
| 88703-17060 |
ZZW30 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-17050 |
ZZW30 |
1 | ||
| 88704-17060 |
ZZW30 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-17360 |
ZZW30 |
1 | ||
| 88715-17300 |
ZZW30 DEALER OPTION |
1 | ||
| 88715-17300 |
ZZW30 |
1 | ||
| 88715B - PIPE, COOLER REFRIGERANT DISCHARGE, B | ||||
| 88715-17290 |
ZZW30 |
1 | ||
| 88715-17290 |
ZZW30 |
1 | ||
| 88715E - PIPE, COOLER REFRIGERANT DISCHARGE, E | ||||
| 88715-17350 |
ZZW30..LHD DEALER OPTION |
1 | ||
| 88715-17311 |
ZZW30..LHD MAKER OPTION |
1 | ||
| 88715-17310 |
ZZW30..LHD MAKER OPTION |
1 | ||
| 88715-17310 |
ZZW30..LHD MAKER OPTION |
1 | ||
| 88715-17350 |
ZZW30..LHD DEALER OPTION |
1 | ||
| 88715-17351 |
ZZW30..LHD DEALER OPTION |
1 | ||
| 88715F - PIPE, COOLER REFRIGERANT DISCHARGE, F | ||||
| 88715-17341 |
ZZW30..LHD |
1 | ||
| 88715-17340 |
ZZW30..LHD |
1 | ||
| 88715-17340 |
ZZW30..LHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-17260 |
ZZW30..LHD DEALER OPTION |
1 | ||
| 88716-17240 |
ZZW30..LHD MAKER OPTION |
1 | ||
| 88716-17240 |
ZZW30..LHD MAKER OPTION |
1 | ||
| 88716-17261 |
ZZW30..LHD DEALER OPTION |
1 | ||
| 88716-17260 |
ZZW30..LHD DEALER OPTION |
1 | ||
| 88716-17241 |
ZZW30..LHD MAKER OPTION |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-17280 |
ZZW30..LHD |
1 | ||
| 88716-17280 |
ZZW30..LHD |
1 | ||
| 88716-17281 |
ZZW30..LHD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-17230 |
ZZW30..LHD |
1 | ||
| 88717-17230 |
ZZW30..LHD |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-17240 |
ZZW30 |
1 | ||
| 88717-17240 |
ZZW30 |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-17260 |
ZZW30 |
1 | ||
| 88717-17250 |
ZZW30 DEALER OPTION |
1 | ||
| 88717-17250 |
ZZW30 |
1 | ||
| Common parts | ||||
| 88569-35120 | ||||
| 88688-17400 | ||||
| 88688-1G400 | ||||
| 88718-13010 | ||||
| 88718-17270 | ||||
| 88718-17280 | ||||
| 88718-17300 | ||||
| 88718-17320 | ||||
| 88718-17340 | ||||
| 88718-17350 | ||||
| 88718-17360 | ||||
| 88718-17370 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 90091-20609 | ||||
| 90099-04430 | ||||
| 90119-06465 | ||||
| 90179-06274 | ||||
| 91511-60635 | ||||
| 91651-60616 | ||||
| 91652-60655 | ||||
| 93315-15010 | ||||
| 93381-15008 | ||||
| 93385-56025 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
