ZZW30L-AKFQHW (2002)
Toyota Mr2
Production
Aug 2002
-
Sep 2005
Engine
1ZZFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0208-0509)EUR

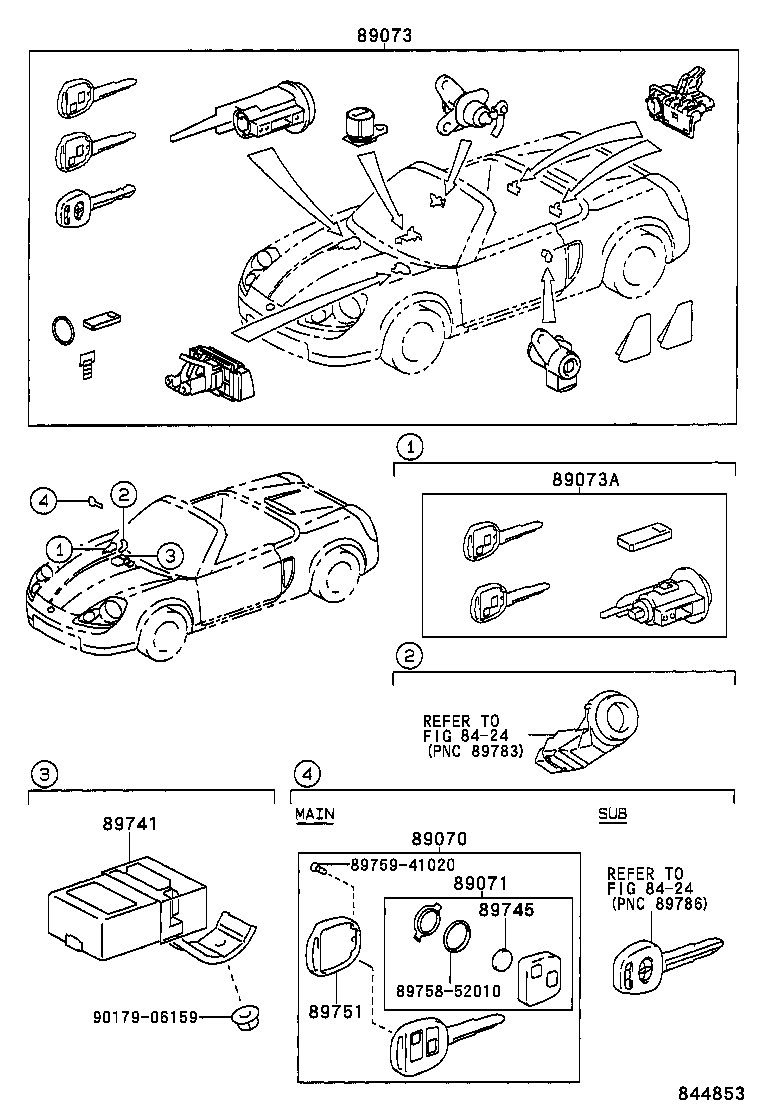

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89070 - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-52090 |
ZZW30..LHD |
1 | ||
| 89070-52100 |
ZZW30..LHD FRANCE SPEC |
1 | ||
| 89070-52160 |
ZZW30..LHD DENMARK OR SWITZERLAND SPEC |
1 | ||
| 89070-52150 |
ZZW30..LHD FINLAND OR ITALY SPEC |
1 | ||
| 89070-52081 |
ZZW30..EUR |
1 | ||
| 89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-52021 |
ZZW30..EUR |
2 | ||
| 89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE) | ||||
| 89073-17080 |
ZZW30..LHD FRANCE SPEC |
1 | ||
| 89073-17130 |
ZZW30..LHD DENMARK OR SWITZERLAND SPEC |
1 | ||
| 89073-17120 |
ZZW30..LHD FINLAND OR ITALY SPEC |
1 | ||
| 89073-17070 |
ZZW30..LHD |
1 | ||
| 69005-17650 |
ZZW30..EUR |
1 | ||
| 89073A - IGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY) | ||||
| 89073-17030 |
ZZW30..LHD FRANCE SPEC |
1 | ||
| 89073-17020 |
ZZW30..LHD |
1 | ||
| 89073-17100 |
ZZW30..LHD FINLAND OR ITALY SPEC |
1 | ||
| 89073-17110 |
ZZW30..LHD DENMARK OR SWITZERLAND SPEC |
1 | ||
| 69057-17180 |
ZZW30..EUR |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-17061 |
ZZW30..LHD |
1 | ||
| 89745 - BATTERY, TRANSMITTER | ||||
| 89745-52010 |
ZZW30..EUR |
2 | ||
| 89745-52010 |
ZZW30..EUR |
2 | ||
| 89751 - COVER, TRANSMITTER HOUSING | ||||
| 89751-17020 |
ZZW30..EUR |
2 | ||
| 89751-17020 |
ZZW30..EUR |
2 | ||
| Common parts | ||||
| 89758-52010 | ||||
| 89759-41020 | ||||
| 90179-06159 | ||||
| Linked diagrams | ||||
| 8424 | ||||
