ZZW30L-AKFQHW (2002)
Toyota Mr2
Production
Aug 2002
-
Sep 2005
Engine
1ZZFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0208-0509)LHD

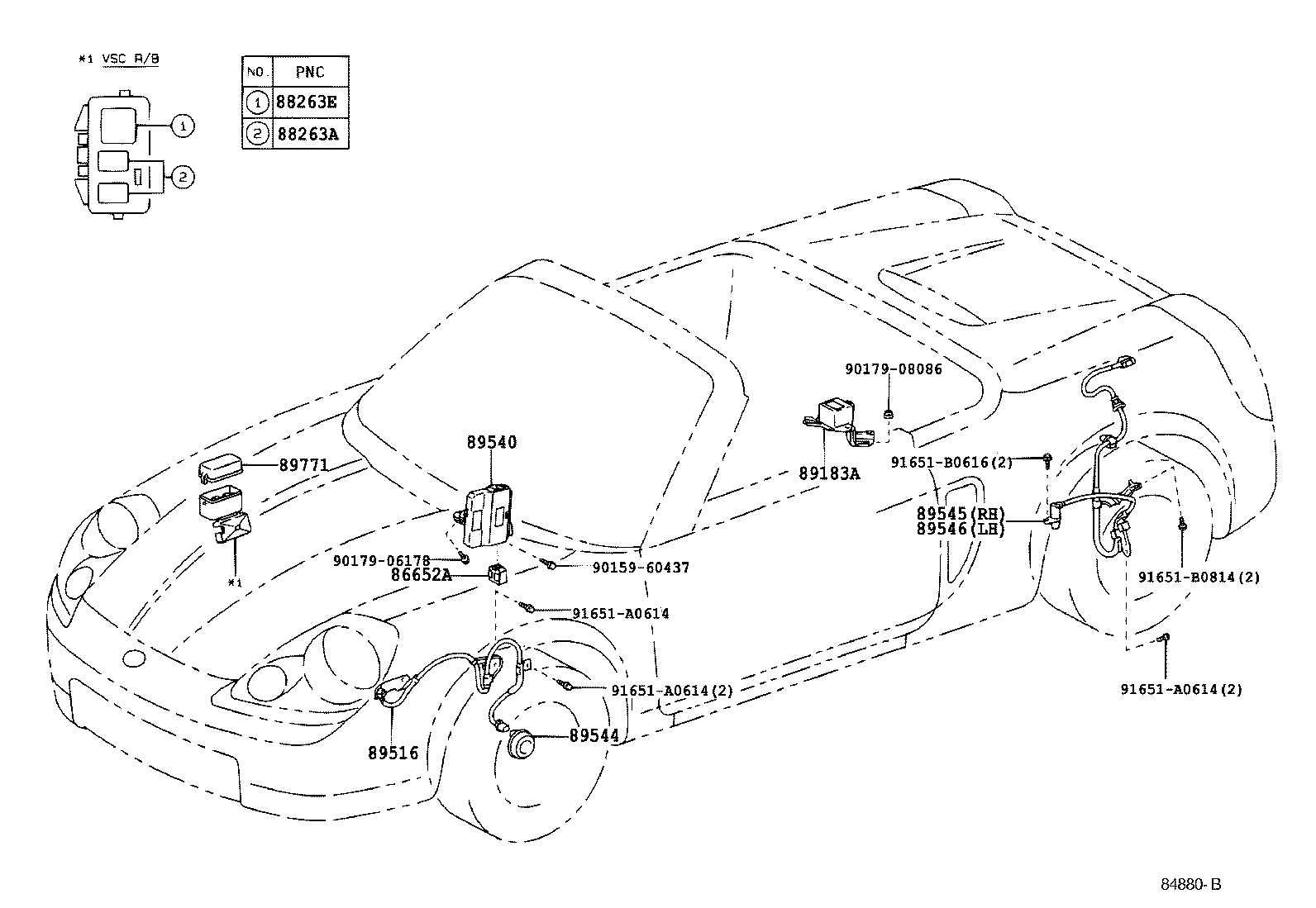

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88263A - RELAY, SKID CONTROL | ||||
| 88263-32070 |
ZZW30 |
1 | ||
| 88263E - RELAY, SKID CONTROL NO.2 | ||||
| 88263-32080 |
ZZW30 |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-17030 |
ZZW30 LH |
1 | ||
| 89516-17030 |
ZZW30 LH |
1 | ||
| 89516-17010 |
ZZW30 RH |
1 | ||
| 89516-17010 |
ZZW30 RH |
1 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89540-17160 |
ZZW30..LHD |
1 | ||
| 89544 - SENSOR, SKID CONTROL | ||||
| 89544-52010 |
ZZW30 |
2 | ||
| 89544-52010 |
ZZW30 |
2 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-17030 |
ZZW30 |
1 | ||
| 89545-17030 |
ZZW30 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-17030 |
ZZW30 |
1 | ||
| 89546-17030 |
ZZW30 |
1 | ||
| Common parts | ||||
| 90159-60437 | ||||
| 90179-06178 | ||||
| 90179-08086 | ||||
| 91651-A0614 | ||||
| 91651-B0616 | ||||
| 91651-B0814 | ||||
