ZZW30L-AKFQHW (2002)
Toyota Mr2
Production
Aug 2002
-
Sep 2005
Engine
1ZZFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0208-0509)

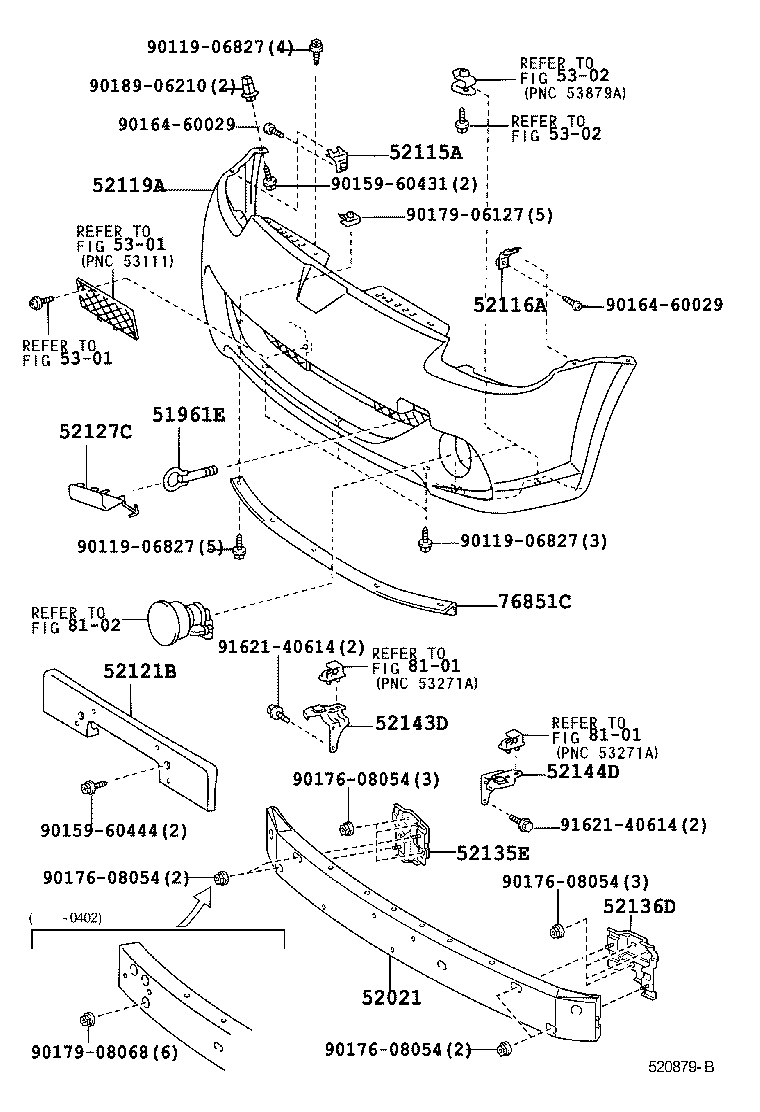

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51961E - HOOK, FRONT | ||||
| 51093-17021 |
ZZW30 |
1 | ||
| 51093-17021 |
ZZW30 |
1 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-17040 |
ZZW30 |
1 | ||
| 52021-17040 |
ZZW30 |
1 | ||
| 52131-17041 |
ZZW30 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-17020 |
ZZW30 |
1 | ||
| 52115-17020 |
ZZW30 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52115-17020 |
ZZW30 |
1 | ||
| 52115-17020 |
ZZW30 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-17912 |
ZZW30..EUR |
1 | ||
| 52119-17925 |
ZZW30 |
1 | ||
| 52121B - BRACKET, FRONT LICENCE PLATE MOUNTING | ||||
| 52121-17100 |
ZZW30 |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-17010 |
ZZW30 |
1 | ||
| 52127-17901 |
ZZW30..EUR UNPAINTED |
1 | ||
| 52127-17020A0 |
ZZW30 SUPER WHITE 2,040 |
1 | ||
| 52127-17020C0 |
ZZW30 BLACK,202 |
1 | ||
| 52127-17020D0 |
ZZW30 SUPER RED 5,3P0 |
1 | ||
| 52127-17020J0 |
ZZW30 BLUE MC.,8M6 |
1 | ||
| 52127-17020G0 |
ZZW30 DARK GREEN MC.,6R4 |
1 | ||
| 52127-17020B1 |
ZZW30 SILVER M.M.,1E7 |
1 | ||
| 52127-17020F0 |
ZZW30 SUPER BRIGHT YELLOW,576 |
1 | ||
| 52127-17020B0 |
ZZW30 GRAY M.M.,1E3 |
1 | ||
| 52135E - REINFORCEMENT, FRONT BUMPER ARM MOUNTING, RH | ||||
| 52135-17010 |
ZZW30 |
1 | ||
| 52136D - REINFORCEMENT, FRONT BUMPER ARM MOUNTING, LH | ||||
| 52136-17010 |
ZZW30 |
1 | ||
| 52143D - BRACKET, FRONT BUMPER SIDE, RH | ||||
| 52143-17020 |
ZZW30 |
1 | ||
| 52143-17020 |
ZZW30 |
1 | ||
| 52144D - BRACKET, FRONT BUMPER SIDE, LH | ||||
| 52144-17010 |
ZZW30 |
1 | ||
| 52144-17010 |
ZZW30 |
1 | ||
| 76851C - FRONT SPOILER | ||||
| 76851-17070 |
ZZW30 |
1 | ||
| Common parts | ||||
| 90119-06827 | ||||
| 90159-60431 | ||||
| 90159-60444 | ||||
| 90164-60029 | ||||
| 90176-08054 | ||||
| 90179-06127 | ||||
| 90179-08068 | ||||
| 90189-06210 | ||||
| 91621-40614 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 5302 | ||||
| 8101 | ||||
| 8102 | ||||
