ZZW30L-AKFQHW (2002)
Toyota Mr2
Production
Aug 2002
-
Sep 2005
Engine
1ZZFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9912-0401)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31369C - INSULATOR, TRANSAXLE HEAT | ||||
| 31369-17010 |
ZZW30 |
1 | ||
| 31369-17010 |
ZZW30 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-17040 |
ZZW30 |
1 | ||
| 51206-17030 |
ZZW30 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51405-17030 |
ZZW30 |
1 | ||
| 51405-17020 |
ZZW30 |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51406-17010 |
ZZW30 |
1 | ||
| 51406-17020 |
ZZW30 |
1 | ||
| 51445 - BRACKET, ENGINE UNDER COVER | ||||
| 51445-17020 |
ZZW30 |
2 | ||
| 51445-17020 |
ZZW30 |
2 | ||
| 51446B - BRACKET, ENGINE UNDER COVER, NO.2 | ||||
| 51446-17020 |
ZZW30 |
1 | ||
| 51446-17020 |
ZZW30 |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51962-17031 |
ZZW30 |
1 | ||
| 51962-17031 |
ZZW30 |
1 | ||
| 52255 - BRACE, FRONT SUSPENSION MEMBER, FRONT RH | ||||
| 52255-17010 |
ZZW30 |
1 | ||
| 52256 - BRACE, FRONT SUSPENSION MEMBER, FRONT LH | ||||
| 52256-17010 |
ZZW30 |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 52257-17010 |
ZZW30 |
1 | ||
| 52257-17010 |
ZZW30 |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 52258-17010 |
ZZW30 |
1 | ||
| 52258-17010 |
ZZW30 |
1 | ||
| 53687A - BRACE, FRONT SUSPENSION LOWER TO CROSS MEMBER, RH | ||||
| 53687-17020 |
ZZW30 |
1 | ||
| 51403-17020 |
ZZW30 |
1 | ||
| 53688A - BRACE, FRONT SUSPENSION LOWER TO CROSS MEMBER, LH | ||||
| 53688-17020 |
ZZW30 |
1 | ||
| 51404-17010 |
ZZW30 |
1 | ||
| 57381A - COVER, FRONT LUGGAGE UNDER | ||||
| 57381-17030 |
ZZW30..LHD COLD SPEC |
1 | ||
| 57381-17030 |
ZZW30..LHD COLD SPEC |
1 | ||
| 57381-17020 |
ZZW30 |
1 | ||
| 57381-17050 |
ZZW30..LHD COLD SPEC |
1 | ||
| 57381-17040 |
ZZW30 |
1 | ||
| 57381-17020 |
ZZW30 |
1 | ||
| Common parts | ||||
| 90105-10314 | ||||
| 90119-06352 | ||||
| 90119-06403 | ||||
| 90119-08622 | ||||
| 90119-10915 | ||||
| 90119-12325 | ||||
| 90119-12348 | ||||
| 90159-60383 | ||||
| 90159-60395 | ||||
| 90183-06065 | ||||
| 90467-05114 | ||||
| 90467-07164 | ||||
| 90467-07166 | ||||
| 90950-01826 | ||||
| 91642-K1020 | ||||
(0401- )

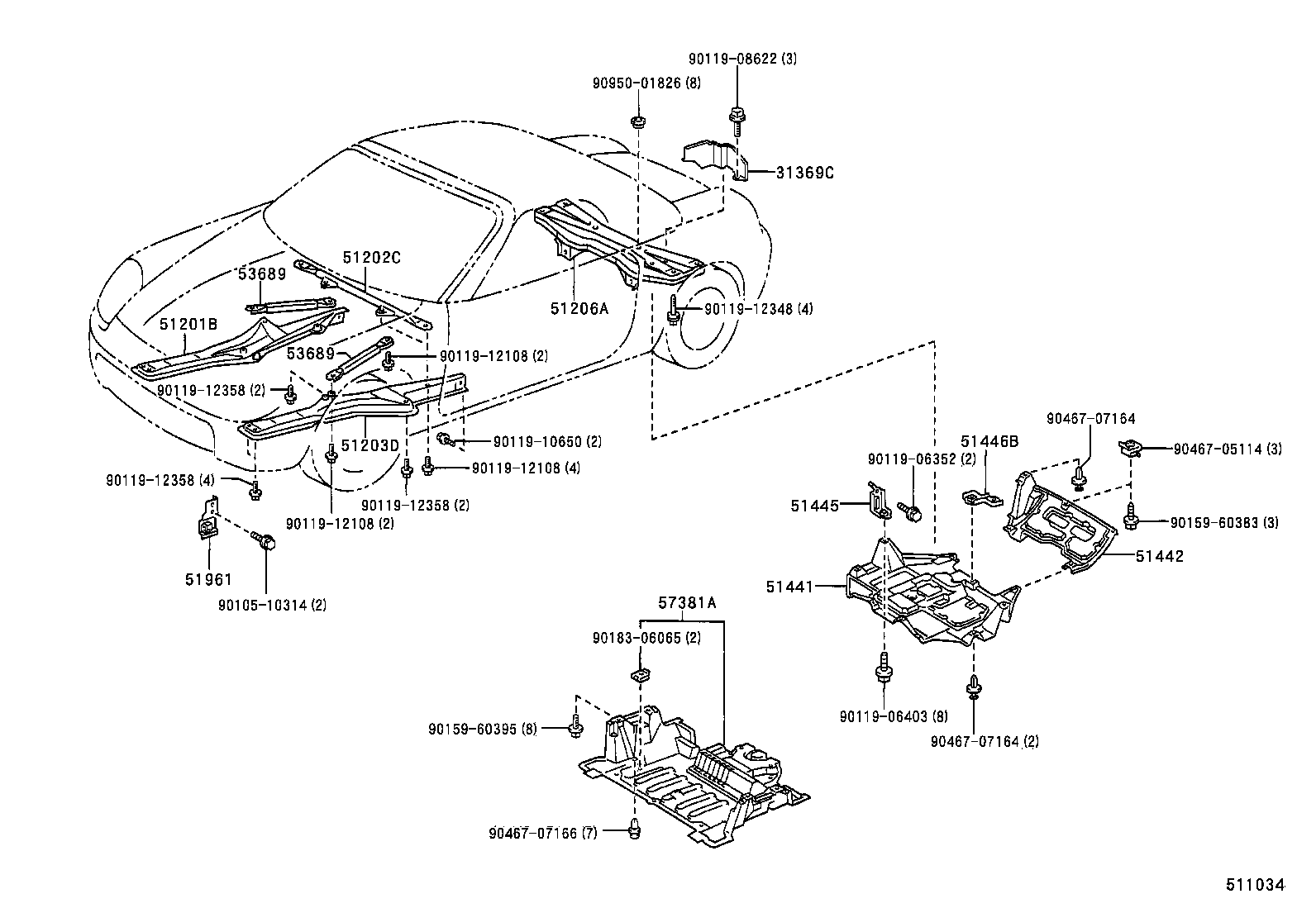

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31369C - INSULATOR, TRANSAXLE HEAT | ||||
| 31369-17010 |
ZZW30 |
1 | ||
| 31369-17010 |
ZZW30 |
1 | ||
| 51201B - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 51205-17010 |
ZZW30 |
1 | ||
| 51202C - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION, LOWER | ||||
| 51202-17010 |
ZZW30 |
1 | ||
| 51203D - CROSSMENBER SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 51206-17050 |
ZZW30 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-17040 |
ZZW30 |
1 | ||
| 51206-17030 |
ZZW30 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51405-17030 |
ZZW30 |
1 | ||
| 51405-17020 |
ZZW30 |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51406-17010 |
ZZW30 |
1 | ||
| 51406-17020 |
ZZW30 |
1 | ||
| 51445 - BRACKET, ENGINE UNDER COVER | ||||
| 51445-17020 |
ZZW30 |
2 | ||
| 51445-17020 |
ZZW30 |
2 | ||
| 51446B - BRACKET, ENGINE UNDER COVER, NO.2 | ||||
| 51446-17020 |
ZZW30 |
1 | ||
| 51446-17020 |
ZZW30 |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51962-17031 |
ZZW30 |
1 | ||
| 51962-17031 |
ZZW30 |
1 | ||
| 53689 - BRACE, FRONT SUSPENSION, LOWER CENTER | ||||
| 53689-17010 |
ZZW30 |
2 | ||
| 53689 - BRACE, FRONT SUSPENSION, LOWER CENTER | ||||
| 53689-17010 |
ZZW30 |
2 | ||
| 57381A - COVER, FRONT LUGGAGE UNDER | ||||
| 57381-17030 |
ZZW30..LHD COLD SPEC |
1 | ||
| 57381-17030 |
ZZW30..LHD COLD SPEC |
1 | ||
| 57381-17020 |
ZZW30 |
1 | ||
| 57381-17050 |
ZZW30..LHD COLD SPEC |
1 | ||
| 57381-17040 |
ZZW30 |
1 | ||
| 57381-17020 |
ZZW30 |
1 | ||
| Common parts | ||||
| 90105-10314 | ||||
| 90119-06352 | ||||
| 90119-06403 | ||||
| 90119-08622 | ||||
| 90119-10650 | ||||
| 90119-12108 | ||||
| 90119-12348 | ||||
| 90119-12358 | ||||
| 90159-60383 | ||||
| 90159-60395 | ||||
| 90183-06065 | ||||
| 90467-05114 | ||||
| 90467-07164 | ||||
| 90467-07166 | ||||
| 90950-01826 | ||||
