ZZW30L-AKFQHW (2002)
Toyota Mr2

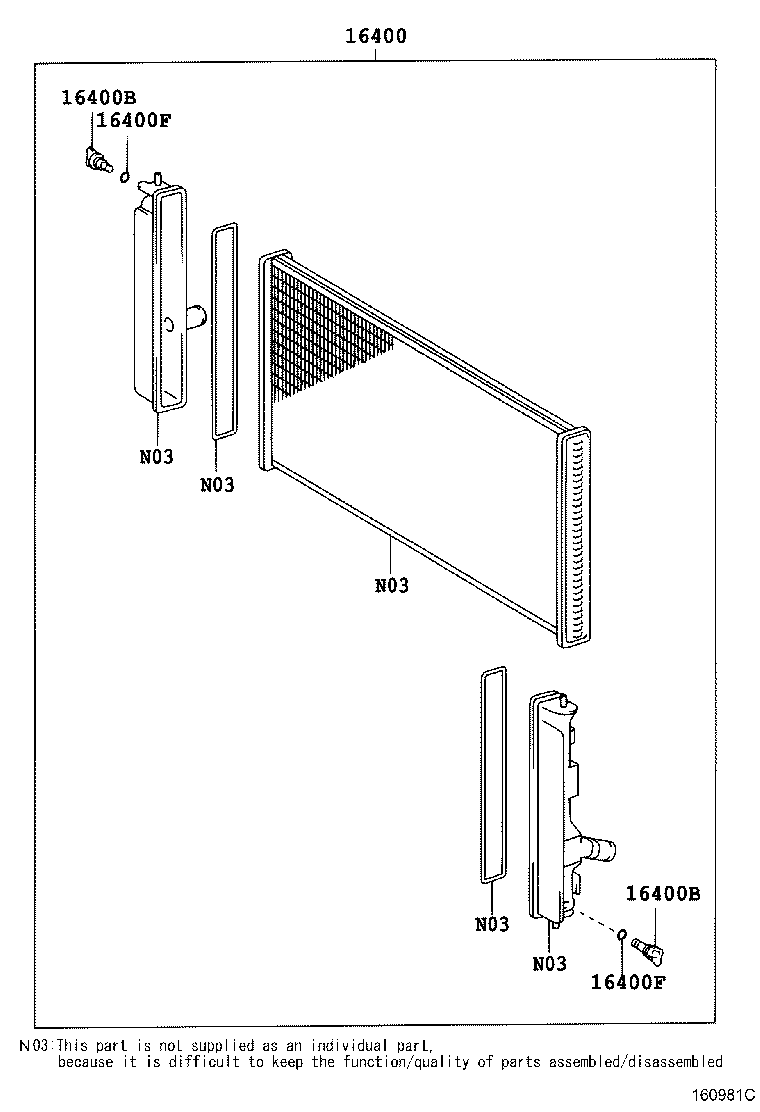

ILLUST NO. 2 OF 2(9912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-22110 |
1ZZFE..ZZW30 |
1 | ||
| 16400-22110 |
1ZZFE..ZZW30 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1ZZFE..ZZW30 |
2 | ||
| 23322-54010 |
1ZZFE..ZZW30 |
2 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1ZZFE..ZZW30 |
2 | ||
| 23322-54010 |
1ZZFE..ZZW30 |
2 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1ZZFE..ZZW30 |
2 | ||
| 16492-21050 |
1ZZFE..ZZW30 |
2 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1ZZFE..ZZW30 |
2 | ||
| 16492-21050 |
1ZZFE..ZZW30 |
2 | ||
ILLUST NO. 1 OF 2(9912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-22080 |
1ZZFE..ZZW30..6F (J) |
1 | ||
| 16261-22080 |
1ZZFE..ZZW30..6F |
1 | ||
| 16261-0D030 |
1ZZFE..ZZW30..6F (L) |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-22080 |
1ZZFE..ZZW30..6F (J) |
1 | ||
| 16261-22080 |
1ZZFE..ZZW30..6F |
1 | ||
| 16261-0D030 |
1ZZFE..ZZW30..6F (L) |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1ZZFE..ZZW30 |
2 | ||
| 96135-41300 |
1ZZFE..ZZW30 |
2 | ||
| 96135-51300 |
1ZZFE..ZZW30 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1ZZFE..ZZW30 |
2 | ||
| 96135-41300 |
1ZZFE..ZZW30 |
2 | ||
| 96135-51300 |
1ZZFE..ZZW30 |
2 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-22070 |
1ZZFE..ZZW30 |
1 | ||
| 16261-22070 |
1ZZFE..ZZW30 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-22090 |
1ZZFE..ZZW30..6F NO.2 |
1 | ||
| 16264-22080 |
1ZZFE..ZZW30 NO.1 |
1 | ||
| 16264-22090 |
1ZZFE..ZZW30..6F (J),NO.2 |
1 | ||
| 16264-0D020 |
1ZZFE..ZZW30..6F (L),NO.2 |
1 | ||
| 16264-22080 |
1ZZFE..ZZW30 NO.1 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-22090 |
1ZZFE..ZZW30..6F NO.2 |
1 | ||
| 16264-22080 |
1ZZFE..ZZW30 NO.1 |
1 | ||
| 16264-22090 |
1ZZFE..ZZW30..6F (J),NO.2 |
1 | ||
| 16264-0D020 |
1ZZFE..ZZW30..6F (L),NO.2 |
1 | ||
| 16264-22080 |
1ZZFE..ZZW30 NO.1 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-22090 |
1ZZFE..ZZW30..6F NO.2 |
1 | ||
| 16264-22080 |
1ZZFE..ZZW30 NO.1 |
1 | ||
| 16264-22090 |
1ZZFE..ZZW30..6F (J),NO.2 |
1 | ||
| 16264-0D020 |
1ZZFE..ZZW30..6F (L),NO.2 |
1 | ||
| 16264-22080 |
1ZZFE..ZZW30 NO.1 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1ZZFE..ZZW30 |
2 | ||
| 96135-51300 |
1ZZFE..ZZW30 |
2 | ||
| 96135-41300 |
1ZZFE..ZZW30 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1ZZFE..ZZW30 |
2 | ||
| 96135-51300 |
1ZZFE..ZZW30 |
2 | ||
| 96135-41300 |
1ZZFE..ZZW30 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-22070 |
1ZZFE..ZZW30 |
1 | ||
| 16268-22070 |
1ZZFE..ZZW30 |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-22010 |
1ZZFE..ZZW30 |
1 | ||
| 16258-22010 |
1ZZFE..ZZW30 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-22040 |
1ZZFE..ZZW30 |
1 | ||
| 16281-22040 |
1ZZFE..ZZW30 |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-22020 |
1ZZFE..ZZW30 |
1 | ||
| 16282-22020 |
1ZZFE..ZZW30 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96134-41900 |
1ZZFE..ZZW30 |
4 | ||
| 90467-20005 |
1ZZFE..ZZW30 |
4 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96134-41900 |
1ZZFE..ZZW30 |
4 | ||
| 90467-20005 |
1ZZFE..ZZW30 |
4 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96134-41900 |
1ZZFE..ZZW30 |
4 | ||
| 90467-20005 |
1ZZFE..ZZW30 |
4 | ||
| 16321 - INLET, WATER | ||||
| 16321-22050 |
1ZZFE..ZZW30 |
1 | ||
| 16321-22070 |
1ZZFE..ZZW30 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1ZZFE..ZZW30 |
1 | ||
| 16325-0H020 |
1ZZFE..ZZW30 (L) |
1 | ||
| 16325-62010 |
1ZZFE..ZZW30 (J) |
1 | ||
| 16325-62010 |
1ZZFE..ZZW30 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03084 |
1ZZFE..ZZW30 *WAX 82-95 |
1 | ||
| 90916-03129 |
1ZZFE..ZZW30 *WAX 82-95 |
1 | ||
| 16361 - FAN | ||||
| 16361-22050 |
1ZZFE..ZZW30 |
1 | ||
| 16361-22050 |
1ZZFE..ZZW30 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-22060 |
1ZZFE..ZZW30 |
1 | ||
| 16361-22060 |
1ZZFE..ZZW30 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-22050 |
1ZZFE..ZZW30 |
1 | ||
| 16363-22050 |
1ZZFE..ZZW30 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-22060 |
1ZZFE..ZZW30 |
1 | ||
| 16363-22060 |
1ZZFE..ZZW30 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-22110 |
1ZZFE..ZZW30 |
1 | ||
| 16400-22110 |
1ZZFE..ZZW30 |
1 | ||
| 16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK | ||||
| 16401-53010 |
1ZZFE..ZZW30 |
1 | ||
| 16401-53010 |
1ZZFE..ZZW30 |
1 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90480-18010 |
1ZZFE..ZZW30 |
1 | ||
| 90480-18010 |
1ZZFE..ZZW30 |
1 | ||
| 16482 - TANK SUB-ASSY, RADIATOR RESERVE | ||||
| 16480-22050 |
1ZZFE..ZZW30 |
1 | ||
| 16480-22050 |
1ZZFE..ZZW30 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-74010 |
1ZZFE..ZZW30 |
2 | ||
| 16523-74010 |
1ZZFE..ZZW30 |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-22020 |
1ZZFE..ZZW30 |
1 | ||
| 16533-22020 |
1ZZFE..ZZW30 |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-22010 |
1ZZFE..ZZW30 |
1 | ||
| 16534-22010 |
1ZZFE..ZZW30 |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90916-04004 |
1ZZFE..ZZW30 |
2 | ||
| 90916-04004 |
1ZZFE..ZZW30 |
2 | ||
| 16559 - PIPE, RADIATOR, NO.4 | ||||
| 16559-22010 |
1ZZFE..ZZW30 |
1 | ||
| 16559-22010 |
1ZZFE..ZZW30 |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-22040 |
1ZZFE..ZZW30 |
1 | ||
| 16571-22040 |
1ZZFE..ZZW30 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-37002 |
1ZZFE..ZZW30 |
2 | ||
| 90467-37005 |
1ZZFE..ZZW30 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-37002 |
1ZZFE..ZZW30 |
2 | ||
| 90467-37005 |
1ZZFE..ZZW30 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-22040 |
1ZZFE..ZZW30 |
1 | ||
| 16572-22040 |
1ZZFE..ZZW30 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-37002 |
1ZZFE..ZZW30 |
2 | ||
| 90467-37005 |
1ZZFE..ZZW30 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-37002 |
1ZZFE..ZZW30 |
2 | ||
| 90467-37005 |
1ZZFE..ZZW30 |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-22010 |
1ZZFE..ZZW30 |
1 | ||
| 16573-22010 |
1ZZFE..ZZW30 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-37005 |
1ZZFE..ZZW30 |
2 | ||
| 90466-37002 |
1ZZFE..ZZW30 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-37005 |
1ZZFE..ZZW30 |
2 | ||
| 90466-37002 |
1ZZFE..ZZW30 |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-22010 |
1ZZFE..ZZW30 |
1 | ||
| 16574-22010 |
1ZZFE..ZZW30 |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90467-37005 |
1ZZFE..ZZW30 |
2 | ||
| 90466-37002 |
1ZZFE..ZZW30 |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90467-37005 |
1ZZFE..ZZW30 |
2 | ||
| 90466-37002 |
1ZZFE..ZZW30 |
2 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16575-22010 |
1ZZFE..ZZW30 |
1 | ||
| 16575-22010 |
1ZZFE..ZZW30 |
1 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 90466-37002 |
1ZZFE..ZZW30 NO.2 |
1 | ||
| 90467-37005 |
1ZZFE..ZZW30 NO.1 |
1 | ||
| 90466-37002 |
1ZZFE..ZZW30 NO.1 & NO.2 |
2 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 90466-37002 |
1ZZFE..ZZW30 NO.2 |
1 | ||
| 90467-37005 |
1ZZFE..ZZW30 NO.1 |
1 | ||
| 90466-37002 |
1ZZFE..ZZW30 NO.1 & NO.2 |
2 | ||
| 16576 - HOSE, RADIATOR, NO.6 | ||||
| 16576-22010 |
1ZZFE..ZZW30 |
1 | ||
| 16576-22010 |
1ZZFE..ZZW30 |
1 | ||
| 16576A - CLIP, RADIATOR HOSE, NO.6 | ||||
| 90467-34003 |
1ZZFE..ZZW30 NO.1 |
1 | ||
| 90466-37002 |
1ZZFE..ZZW30 NO.2 |
1 | ||
| 90466-37002 |
1ZZFE..ZZW30 NO.2 |
1 | ||
| 90467-34004 |
1ZZFE..ZZW30 NO.1 |
1 | ||
| 16576A - CLIP, RADIATOR HOSE, NO.6 | ||||
| 90467-34003 |
1ZZFE..ZZW30 NO.1 |
1 | ||
| 90466-37002 |
1ZZFE..ZZW30 NO.2 |
1 | ||
| 90466-37002 |
1ZZFE..ZZW30 NO.2 |
1 | ||
| 90467-34004 |
1ZZFE..ZZW30 NO.1 |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-22010 |
1ZZFE..ZZW30 |
1 | ||
| 16577-22010 |
1ZZFE..ZZW30 |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-22010 |
1ZZFE..ZZW30 |
1 | ||
| 16578-22010 |
1ZZFE..ZZW30 |
1 | ||
| 16579 - PIPE, RADIATOR, NO.3 | ||||
| 16579-22010 |
1ZZFE..ZZW30 |
1 | ||
| 16579-22010 |
1ZZFE..ZZW30 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-22060 |
1ZZFE..ZZW30 |
1 | ||
| 16711-22060 |
1ZZFE..ZZW30 |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90105-08088 | ||||
| 90126-06009 | ||||
| 90126-06012 | ||||
| 90179-06274 | ||||
| 90430-08008 | ||||
| 90467-15022 | ||||
| 91511-80614 | ||||
| 91621-B0816 | ||||
| 91631-B0625 | ||||
| 91631-J0612 | ||||
| 91651-B0616 | ||||
| 94150-10641 | ||||
| 94150-80640 | ||||
| 96134-51700 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 2211 | ||||
| 8716 | ||||
