SW20R-AJMZFQ (1989)
Toyota Mr2
Production
Dec 1989
-
Aug 1999
Engine
3SGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8912- )TWC

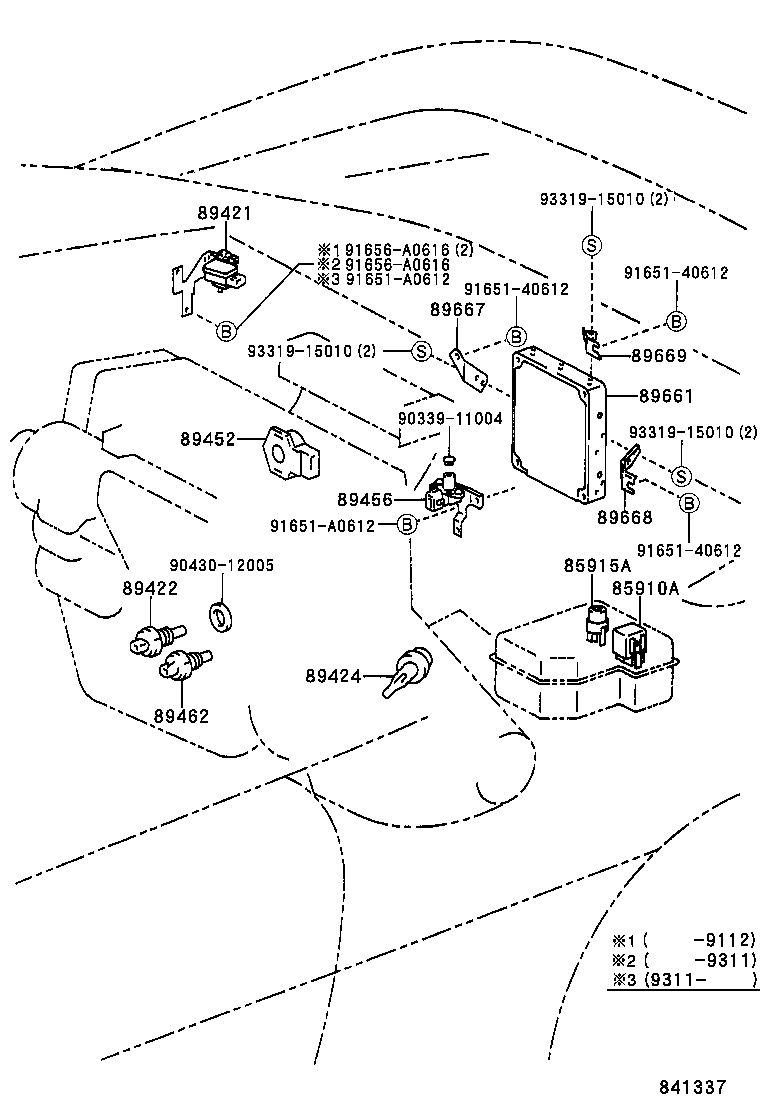

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-30050 |
SW20 |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 90987-02004 |
SW20 |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89420-17040 |
SW20..TWC |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-35010 |
SW20 |
1 | ||
| 89422-20010 |
SW20 |
1 | ||
| 89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.) | ||||
| 89424-12010 |
SW20..TWC |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-12040 |
SW20..TWC |
1 | ||
| 89452-22090 |
SW20 |
1 | ||
| 89456 - RESISTOR, VARIABLE | ||||
| 89450-17010 |
SW20..TWC..W |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-20040 |
SW20..ARL,G |
1 | ||
| 89462-20020 |
SW20..W |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-17370 |
SW20..TWC |
1 | ||
| 89661-17300 |
SW20..ARL,G |
1 | ||
| 89661-17310 |
SW20..TWC..W |
1 | ||
| 89661-17500 |
SW20 |
1 | ||
| 89661-17530 |
SW20..G |
1 | ||
| 89661-17550 |
SW20 |
1 | ||
| 89661-17580 |
SW20 |
1 | ||
| 89661-17540 |
SW20..ARL |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-17030 |
SW20 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-17060 |
SW20 |
1 | ||
| 89668-17050 |
SW20 |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-17060 |
SW20 |
1 | ||
| Common parts | ||||
| 90339-11004 | ||||
| 90430-12005 | ||||
| 91651-40612 | ||||
| 91651-A0612 | ||||
| 91656-A0616 | ||||
| 93319-15010 | ||||
