SW20R-AJMZFQ (1989)
Toyota Mr2

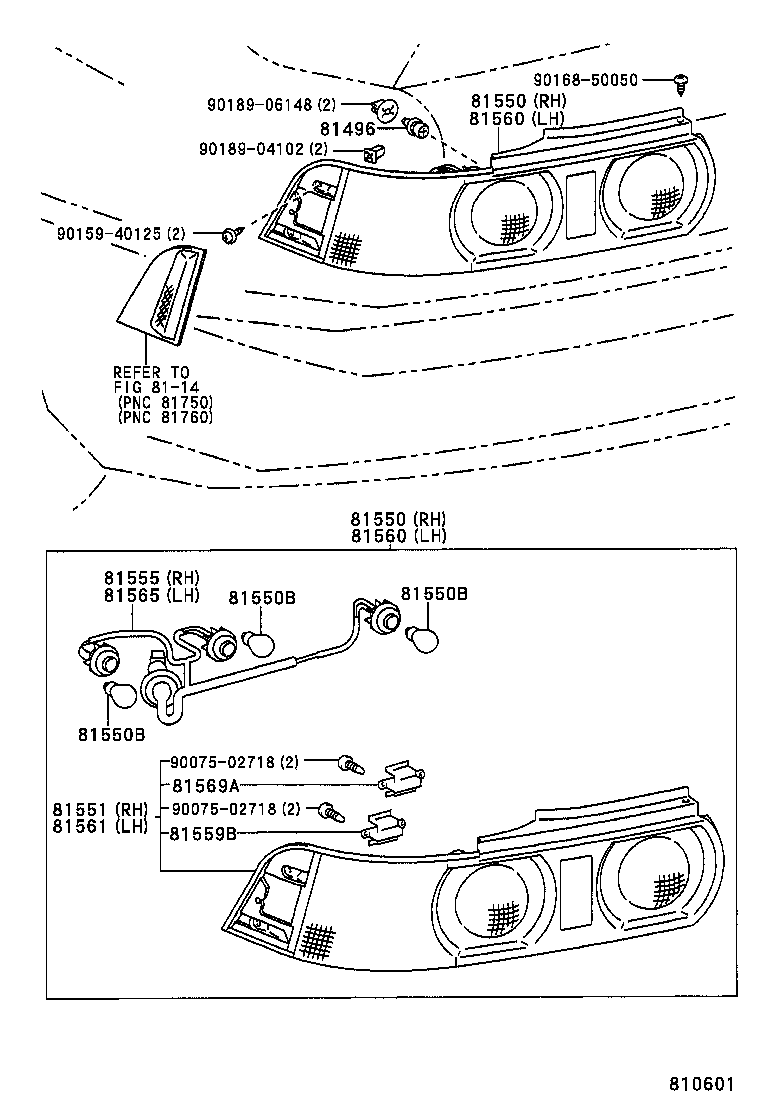

(9311- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-20010 |
SW20 |
4 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-17100 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81550-17080 |
SW20..G,W |
1 | ||
| 81550-17130 |
SW20..ARL |
1 | ||
| 81550-17060 |
SW20..RHD..TWC..W SINGAPORE SPEC OR *82 |
1 | ||
| 81550-17090 |
SW20..ARL |
1 | ||
| 81550-17081 |
SW20..G,W |
1 | ||
| 81550-17120 |
SW20..G |
1 | ||
| 81550-17060 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-17100 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81550-17080 |
SW20..G,W |
1 | ||
| 81550-17130 |
SW20..ARL |
1 | ||
| 81550-17060 |
SW20..RHD..TWC..W SINGAPORE SPEC OR *82 |
1 | ||
| 81550-17090 |
SW20..ARL |
1 | ||
| 81550-17081 |
SW20..G,W |
1 | ||
| 81550-17120 |
SW20..G |
1 | ||
| 81550-17060 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
SW20..RHD..G 12V 21W,HONG KONG SPEC |
4 | ||
| 99132-11210 |
SW20 12V 21W |
6 | ||
| 99132-11210 |
SW20..ARL 12V 21W |
4 | ||
| 99132-21210 |
SW20 12V 21/5W |
2 | ||
| 99132-21210 |
SW20..G,W 12V 21/5W |
2 | ||
| 99132-21210 |
SW20..TWC..W 12V 21/5W,SINGAPORE SPEC OR *82 |
4 | ||
| 99132-21210 |
SW20..ARL 12V 21/5W |
4 | ||
| 99132-11210 |
SW20..G,W 12V 21W |
6 | ||
| 99132-21210 |
SW20 12V 21/5W |
2 | ||
| 99132-21210 |
SW20..RHD..G 12V 21/5W,HONG KONG SPEC |
4 | ||
| 99132-11210 |
SW20..TWC..W 12V 21W,SINGAPORE SPEC OR *82 |
4 | ||
| 99132-11210 |
SW20 12V 21W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
SW20..RHD..G 12V 21W,HONG KONG SPEC |
4 | ||
| 99132-11210 |
SW20 12V 21W |
6 | ||
| 99132-11210 |
SW20..ARL 12V 21W |
4 | ||
| 99132-21210 |
SW20 12V 21/5W |
2 | ||
| 99132-21210 |
SW20..G,W 12V 21/5W |
2 | ||
| 99132-21210 |
SW20..TWC..W 12V 21/5W,SINGAPORE SPEC OR *82 |
4 | ||
| 99132-21210 |
SW20..ARL 12V 21/5W |
4 | ||
| 99132-11210 |
SW20..G,W 12V 21W |
6 | ||
| 99132-21210 |
SW20 12V 21/5W |
2 | ||
| 99132-21210 |
SW20..RHD..G 12V 21/5W,HONG KONG SPEC |
4 | ||
| 99132-11210 |
SW20..TWC..W 12V 21W,SINGAPORE SPEC OR *82 |
4 | ||
| 99132-11210 |
SW20 12V 21W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
SW20..RHD..G 12V 21W,HONG KONG SPEC |
4 | ||
| 99132-11210 |
SW20 12V 21W |
6 | ||
| 99132-11210 |
SW20..ARL 12V 21W |
4 | ||
| 99132-21210 |
SW20 12V 21/5W |
2 | ||
| 99132-21210 |
SW20..G,W 12V 21/5W |
2 | ||
| 99132-21210 |
SW20..TWC..W 12V 21/5W,SINGAPORE SPEC OR *82 |
4 | ||
| 99132-21210 |
SW20..ARL 12V 21/5W |
4 | ||
| 99132-11210 |
SW20..G,W 12V 21W |
6 | ||
| 99132-21210 |
SW20 12V 21/5W |
2 | ||
| 99132-21210 |
SW20..RHD..G 12V 21/5W,HONG KONG SPEC |
4 | ||
| 99132-11210 |
SW20..TWC..W 12V 21W,SINGAPORE SPEC OR *82 |
4 | ||
| 99132-11210 |
SW20 12V 21W |
4 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-17060 |
SW20..RHD..TWC..W SINGAPORE SPEC OR *82 |
1 | ||
| 81551-17130 |
SW20..ARL |
1 | ||
| 81551-17060 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81551-17100 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81551-17120 |
SW20..G |
1 | ||
| 81551-17081 |
SW20..G,W |
1 | ||
| 81551-17080 |
SW20..G,W |
1 | ||
| 81551-17090 |
SW20..ARL |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-17060 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81555-17060 |
SW20..RHD..TWC..W SINGAPORE SPEC OR *82 |
1 | ||
| 81555-17090 |
SW20..ARL |
1 | ||
| 81555-17120 |
SW20..G |
1 | ||
| 81555-17100 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81555-17130 |
SW20..ARL |
1 | ||
| 81555-17080 |
SW20..G,W |
1 | ||
| 81559B - BRACKET, REAR COMBINATION LAMP, RH | ||||
| 81559-17060 |
SW20 |
2 | ||
| 90904-62001 |
SW20 |
2 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-17140 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81560-17100 |
SW20..RHD..TWC..W SINGAPORE SPEC OR *82 |
1 | ||
| 81560-17100 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81560-17120 |
SW20..G,W |
1 | ||
| 81560-17121 |
SW20..G,W |
1 | ||
| 81560-17160 |
SW20..G |
1 | ||
| 81560-17170 |
SW20..ARL |
1 | ||
| 81560-17130 |
SW20..ARL |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-17140 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81560-17100 |
SW20..RHD..TWC..W SINGAPORE SPEC OR *82 |
1 | ||
| 81560-17100 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81560-17120 |
SW20..G,W |
1 | ||
| 81560-17121 |
SW20..G,W |
1 | ||
| 81560-17160 |
SW20..G |
1 | ||
| 81560-17170 |
SW20..ARL |
1 | ||
| 81560-17130 |
SW20..ARL |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-17120 |
SW20..G,W |
1 | ||
| 81561-17100 |
SW20..RHD..TWC..W SINGAPORE SPEC OR *82 |
1 | ||
| 81561-17170 |
SW20..ARL |
1 | ||
| 81561-17130 |
SW20..ARL |
1 | ||
| 81561-17140 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81561-17160 |
SW20..G |
1 | ||
| 81561-17100 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81561-17121 |
SW20..G,W |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-17090 |
SW20..ARL |
1 | ||
| 81555-17060 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81555-17060 |
SW20..RHD..TWC..W SINGAPORE SPEC OR *82 |
1 | ||
| 81555-17080 |
SW20..G,W |
1 | ||
| 81555-17130 |
SW20..ARL |
1 | ||
| 81555-17100 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81555-17120 |
SW20..G |
1 | ||
| 81569A - BRACKET, REAR COMBINATION LAMP, LH | ||||
| 81559-17060 |
SW20 |
2 | ||
| 90904-62001 |
SW20 |
2 | ||
| Common parts | ||||
| 90075-02718 | ||||
| 90159-40125 | ||||
| 90168-50050 | ||||
| 90189-04102 | ||||
| 90189-06148 | ||||
| Linked diagrams | ||||
| 8114 | ||||

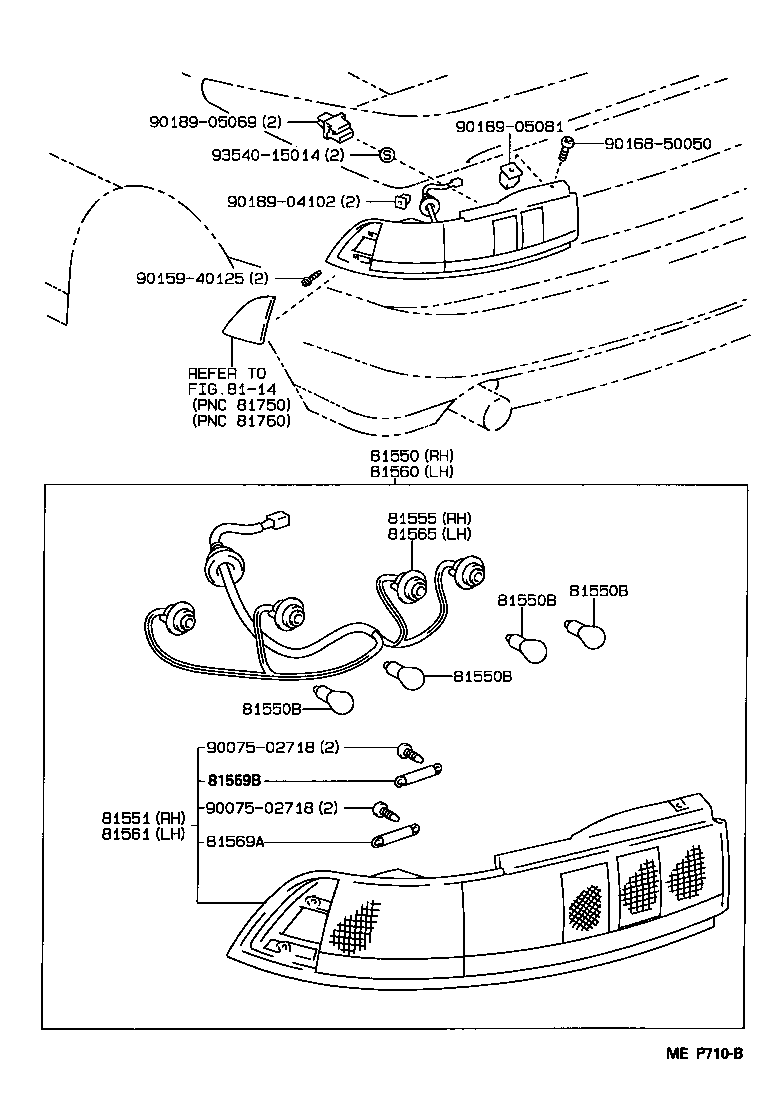

(8912-9311)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-17100 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81550-17080 |
SW20..G,W |
1 | ||
| 81550-17130 |
SW20..ARL |
1 | ||
| 81550-17060 |
SW20..RHD..TWC..W SINGAPORE SPEC OR *82 |
1 | ||
| 81550-17090 |
SW20..ARL |
1 | ||
| 81550-17081 |
SW20..G,W |
1 | ||
| 81550-17120 |
SW20..G |
1 | ||
| 81550-17060 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
SW20..RHD..G 12V 21W,HONG KONG SPEC |
4 | ||
| 99132-11210 |
SW20 12V 21W |
6 | ||
| 99132-11210 |
SW20..ARL 12V 21W |
4 | ||
| 99132-21210 |
SW20 12V 21/5W |
2 | ||
| 99132-21210 |
SW20..G,W 12V 21/5W |
2 | ||
| 99132-21210 |
SW20..TWC..W 12V 21/5W,SINGAPORE SPEC OR *82 |
4 | ||
| 99132-21210 |
SW20..ARL 12V 21/5W |
4 | ||
| 99132-11210 |
SW20..G,W 12V 21W |
6 | ||
| 99132-21210 |
SW20 12V 21/5W |
2 | ||
| 99132-21210 |
SW20..RHD..G 12V 21/5W,HONG KONG SPEC |
4 | ||
| 99132-11210 |
SW20..TWC..W 12V 21W,SINGAPORE SPEC OR *82 |
4 | ||
| 99132-11210 |
SW20 12V 21W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
SW20..RHD..G 12V 21W,HONG KONG SPEC |
4 | ||
| 99132-11210 |
SW20 12V 21W |
6 | ||
| 99132-11210 |
SW20..ARL 12V 21W |
4 | ||
| 99132-21210 |
SW20 12V 21/5W |
2 | ||
| 99132-21210 |
SW20..G,W 12V 21/5W |
2 | ||
| 99132-21210 |
SW20..TWC..W 12V 21/5W,SINGAPORE SPEC OR *82 |
4 | ||
| 99132-21210 |
SW20..ARL 12V 21/5W |
4 | ||
| 99132-11210 |
SW20..G,W 12V 21W |
6 | ||
| 99132-21210 |
SW20 12V 21/5W |
2 | ||
| 99132-21210 |
SW20..RHD..G 12V 21/5W,HONG KONG SPEC |
4 | ||
| 99132-11210 |
SW20..TWC..W 12V 21W,SINGAPORE SPEC OR *82 |
4 | ||
| 99132-11210 |
SW20 12V 21W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
SW20..RHD..G 12V 21W,HONG KONG SPEC |
4 | ||
| 99132-11210 |
SW20 12V 21W |
6 | ||
| 99132-11210 |
SW20..ARL 12V 21W |
4 | ||
| 99132-21210 |
SW20 12V 21/5W |
2 | ||
| 99132-21210 |
SW20..G,W 12V 21/5W |
2 | ||
| 99132-21210 |
SW20..TWC..W 12V 21/5W,SINGAPORE SPEC OR *82 |
4 | ||
| 99132-21210 |
SW20..ARL 12V 21/5W |
4 | ||
| 99132-11210 |
SW20..G,W 12V 21W |
6 | ||
| 99132-21210 |
SW20 12V 21/5W |
2 | ||
| 99132-21210 |
SW20..RHD..G 12V 21/5W,HONG KONG SPEC |
4 | ||
| 99132-11210 |
SW20..TWC..W 12V 21W,SINGAPORE SPEC OR *82 |
4 | ||
| 99132-11210 |
SW20 12V 21W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 |
SW20..RHD..G 12V 21W,HONG KONG SPEC |
4 | ||
| 99132-11210 |
SW20 12V 21W |
6 | ||
| 99132-11210 |
SW20..ARL 12V 21W |
4 | ||
| 99132-21210 |
SW20 12V 21/5W |
2 | ||
| 99132-21210 |
SW20..G,W 12V 21/5W |
2 | ||
| 99132-21210 |
SW20..TWC..W 12V 21/5W,SINGAPORE SPEC OR *82 |
4 | ||
| 99132-21210 |
SW20..ARL 12V 21/5W |
4 | ||
| 99132-11210 |
SW20..G,W 12V 21W |
6 | ||
| 99132-21210 |
SW20 12V 21/5W |
2 | ||
| 99132-21210 |
SW20..RHD..G 12V 21/5W,HONG KONG SPEC |
4 | ||
| 99132-11210 |
SW20..TWC..W 12V 21W,SINGAPORE SPEC OR *82 |
4 | ||
| 99132-11210 |
SW20 12V 21W |
4 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-17060 |
SW20..RHD..TWC..W SINGAPORE SPEC OR *82 |
1 | ||
| 81551-17130 |
SW20..ARL |
1 | ||
| 81551-17060 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81551-17100 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81551-17120 |
SW20..G |
1 | ||
| 81551-17081 |
SW20..G,W |
1 | ||
| 81551-17080 |
SW20..G,W |
1 | ||
| 81551-17090 |
SW20..ARL |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-17060 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81555-17060 |
SW20..RHD..TWC..W SINGAPORE SPEC OR *82 |
1 | ||
| 81555-17090 |
SW20..ARL |
1 | ||
| 81555-17120 |
SW20..G |
1 | ||
| 81555-17100 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81555-17130 |
SW20..ARL |
1 | ||
| 81555-17080 |
SW20..G,W |
1 | ||
| 81559B - BRACKET, REAR COMBINATION LAMP, RH | ||||
| 81559-17060 |
SW20 |
2 | ||
| 90904-62001 |
SW20 |
2 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-17140 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81560-17100 |
SW20..RHD..TWC..W SINGAPORE SPEC OR *82 |
1 | ||
| 81560-17100 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81560-17120 |
SW20..G,W |
1 | ||
| 81560-17121 |
SW20..G,W |
1 | ||
| 81560-17160 |
SW20..G |
1 | ||
| 81560-17170 |
SW20..ARL |
1 | ||
| 81560-17130 |
SW20..ARL |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-17120 |
SW20..G,W |
1 | ||
| 81561-17100 |
SW20..RHD..TWC..W SINGAPORE SPEC OR *82 |
1 | ||
| 81561-17170 |
SW20..ARL |
1 | ||
| 81561-17130 |
SW20..ARL |
1 | ||
| 81561-17140 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81561-17160 |
SW20..G |
1 | ||
| 81561-17100 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81561-17121 |
SW20..G,W |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-17090 |
SW20..ARL |
1 | ||
| 81555-17060 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81555-17060 |
SW20..RHD..TWC..W SINGAPORE SPEC OR *82 |
1 | ||
| 81555-17080 |
SW20..G,W |
1 | ||
| 81555-17130 |
SW20..ARL |
1 | ||
| 81555-17100 |
SW20..RHD..G HONG KONG SPEC |
1 | ||
| 81555-17120 |
SW20..G |
1 | ||
| 81569A - BRACKET, REAR COMBINATION LAMP, LH | ||||
| 81559-17060 |
SW20 |
2 | ||
| 90904-62001 |
SW20 |
2 | ||
| Common parts | ||||
| 90075-02718 | ||||
| 90159-40125 | ||||
| 90168-50050 | ||||
| 90189-04102 | ||||
| 90189-05069 | ||||
| 90189-05081 | ||||
| 93540-15014 | ||||
| Linked diagrams | ||||
| 8114 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
