SW20R-AJMZFQ (1989)

Toyota Mr2

Production Dec 1989 - Aug 1999
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

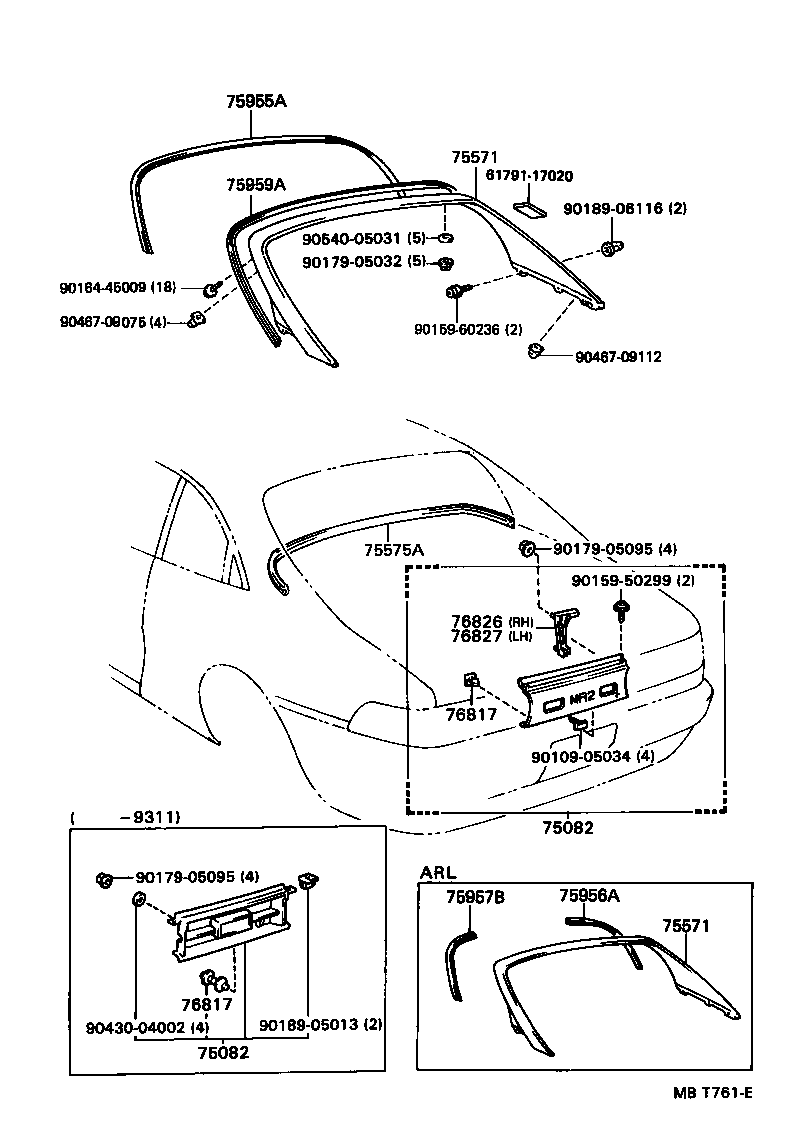

Click highlighted areas on diagram

diagram 6179117020 75082 75082 75571 75571 75575A 75955A 75956A 75957B 75959A 76817 76817 76826 76827 9010905034 9015950299 9015960236 9016445009 9017905032 9017905095 9017905095 9018905013 9018906116 9043004002 9046709075 9046709112 9054005031
Part # Description Qty Price
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-17050B0

SW20

BL.GRAY AMC,187

 1
75082-17030

SW20

 1
75082-17050F0

SW20

SUPER BRIGHT YELLOW,576

 1
75082-17050J0

SW20

STRONG BLUE M,8B6

 1
75082-17050A0

SW20

SUPER WHITE 2,040

 1
75082-17050B1

SW20

SILVER ME,2CE

 1
75082-17050D1

SW20

ORANGE M.M.,3L1

 1
75082-17050D0

SW20

SUPER RED 2,3E5

 1
75082-17050G0

SW20

DK.GREEN MICA,6M1

 1
75082-17050E0

SW20

BEIGE M.M.,4N3

 1
75082-17050C0

SW20

BLACK,202

 1
75082-17050B1

SW20

SILVER ME,199 ,2CE

 1
75082-17050J1

SW20

PURPLISH BLUE M.M.,8K9

 1
75082-17050K0

SW20

DK.PURPLE MC.,943

 1
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-17050B0

SW20

BL.GRAY AMC,187

 1
75082-17030

SW20

 1
75082-17050F0

SW20

SUPER BRIGHT YELLOW,576

 1
75082-17050J0

SW20

STRONG BLUE M,8B6

 1
75082-17050A0

SW20

SUPER WHITE 2,040

 1
75082-17050B1

SW20

SILVER ME,2CE

 1
75082-17050D1

SW20

ORANGE M.M.,3L1

 1
75082-17050D0

SW20

SUPER RED 2,3E5

 1
75082-17050G0

SW20

DK.GREEN MICA,6M1

 1
75082-17050E0

SW20

BEIGE M.M.,4N3

 1
75082-17050C0

SW20

BLACK,202

 1
75082-17050B1

SW20

SILVER ME,199 ,2CE

 1
75082-17050J1

SW20

PURPLISH BLUE M.M.,8K9

 1
75082-17050K0

SW20

DK.PURPLE MC.,943

 1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75507-17901

SW20..ARL

 1
75507-17900

SW20..G,W

 1
75507-17901

SW20

 1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75507-17901

SW20..ARL

 1
75507-17900

SW20..G,W

 1
75507-17901

SW20

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-17010

SW20

 1
75955A - PAD, BACK WINDOW OUTSIDE MOULDING, NO.2
75955-17010

SW20..G,W

 1
75956A - PAD, BACK WINDOW MOULDING, NO.2
75956-17010

SW20

 1
75956-17010

SW20..ARL

 1
75957B - PAD, BACK WINDOW MOULDING, NO.3
75957-17020

SW20..ARL

 1
75957-17020

SW20

 1
75959A - PAD, BACK WINDOW OUTSIDE MOULDING
75959-1703002

SW20

SUPER RED 3,3J6

 1
75959-1703004

SW20

BLUE M,8H3

 1
75959-1703003

SW20

BLUISH GRAY ARGENTUM,187

 1
75959-17040J0

SW20

BLUE,8B6

 1
75959-1703003

SW20..G,W

BLUISH GRAY ARGENTUM,187

 1
75959-1703001

SW20

BLACK,202

 1
75959-17030D0

SW20

SUPER RED 2,3E5

 1
75959-17030A0

SW20

SUPER WHITE 2,040

 1
75959-17040F0

SW20

YELLOW,576

 1
75959-17040B0

SW20

GRAY,187

 1
75959-1703009

SW20..G

SUPER BRIGHT YELLOW,567

 1
75959-17030J0

SW20

MEDIUM BLUE M.M.,8J2

 1
75959-17040B0

SW20

'96 SPRING CAMPAIGN,GRAY,1G2

 1
75959-17040D0

SW20

RED,3E5

 1
75959-17040A1

SW20

WHITE,040

 1
75959-1703008

SW20

SUPER WHITE 3,043

 1
75959-17030H0

SW20

TURQUOISE M.M.,746

 1
75959-17040B1

SW20

SILVER ME,199

 1
75959-1703007

SW20

DARK TURQUISE MICA,742

 1
75959-17040G0

SW20

DK.GREEN,6M1

 1
75959-17040D1

SW20

ORANGE,3L1

 1
75959-17040J2

SW20

PURPLISH BLUE M.M,8K9

 1
75959-17040C0

SW20

BLACK,202

 1
75959-17040E0

SW20

BEIGE,4N3

 1
75959-17040C0

SW20

BLACK,2CE ,202

 1
75959-17040K0

SW20

PURPLE,943

 1
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-17010

SW20

 2
76817-12040

SW20

 2
76817 - CLIP, BACK DOOR OUTSIDE GARNISH
76817-17010

SW20

 2
76817-12040

SW20

 2
76826 - RETAINER, BACK DOOR GARNISH, NO.1
76826-17010

SW20

 1
76827 - RETAINER, BACK DOOR GARNISH, NO.2
76827-17010

SW20

 1
Common parts
61791-17020
90109-05034
90159-50299
90159-60236
90164-45009
90179-05032
90179-05095
90189-05013
90189-06116
90430-04002
90467-09075
90467-09112
90540-05031
