SW20R-AJMZFQ (1989)

Toyota Mr2

Production Dec 1989 - Aug 1999
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

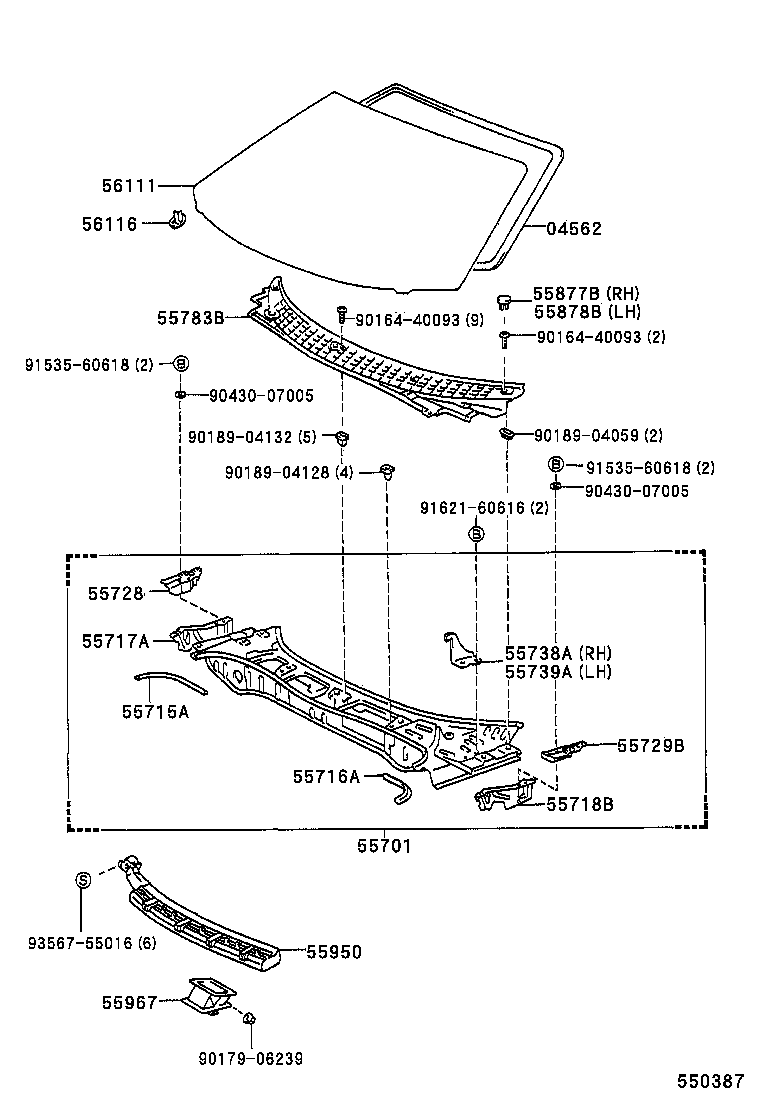

Click highlighted areas on diagram

diagram 04562 55701 55715A 55716A 55717A 55718B 55728 55729B 55738A 55739A 55783B 55877B 55878B 55950 55967 56111 56116 9016440093 9016440093 9017906239 9018904059 9018904128 9018904132 9043007005 9043007005 9153560618 9153560618 9162160616 9356755016
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-12010

SW20

 1
55701 - PANEL SUB-ASSY, COWL
55700-17050

SW20..RHD

 1
55700-17100

SW20..RHD

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-17020

SW20

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-17020

SW20

 1
55717A - PANEL, COWL TOP SIDE, INNER RH
55717-17020

SW20

 1
55718B - PANEL, COWL TOP SIDE, INNER LH
55718-17020

SW20

 1
55728 - REINFORCEMENT, HOOD STOPPER, RH
55728-17020

SW20

 1
55729B - REINFORCEMENT, HOOD STOPPER, LH
55729-17020

SW20

 1
55738A - STOPPER, HOOD, RH
55738-17020

SW20

 1
55739A - STOPPER, HOOD, LH
55739-17020

SW20

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55708-17010

SW20..RHD

 1
55877B - COVER, COWL VENT, RH
55877-17010

SW20

 1
55878B - COVER, COWL VENT, LH
55878-17010

SW20

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-17030

SW20..RHD

 1
55967 - NOZZLE, DEFROSTER, LOWER
55967-17010

SW20..RHD

 1
56111 - GLASS, WINDSHIELD
56111-17100

SW20

*TL,T=5.3,BLUE

 1
56111-17101

SW20

*LAM,T=5.3,BLUE

 1
56111-17230

SW20

*TL,T=5.3,GREEN

 1
56111-17100

SW20..G,W

*TL,T=5.3,BLUE

 1
56111-17160

SW20..ARL

*LAM,T=5.3

 1
56116 - SPACER, WINDSHIELD GLASS
56116-20080

SW20

YELLOW

 2
56116-20090

SW20

RED

 2
56116-20050

SW20

WHITE

 2
56116-20080

SW20

YELLOW

 2
56116-20080

SW20

YELLOW

 2
56116-20070

SW20

BLUE

 2
Common parts
90164-40093
90179-06239
90189-04059
90189-04128
90189-04132
90430-07005
91535-60618
91621-60616
93567-55016
