SW20R-ACPZKW (1989)

Toyota Mr2

Production Dec 1989 - Dec 1991
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

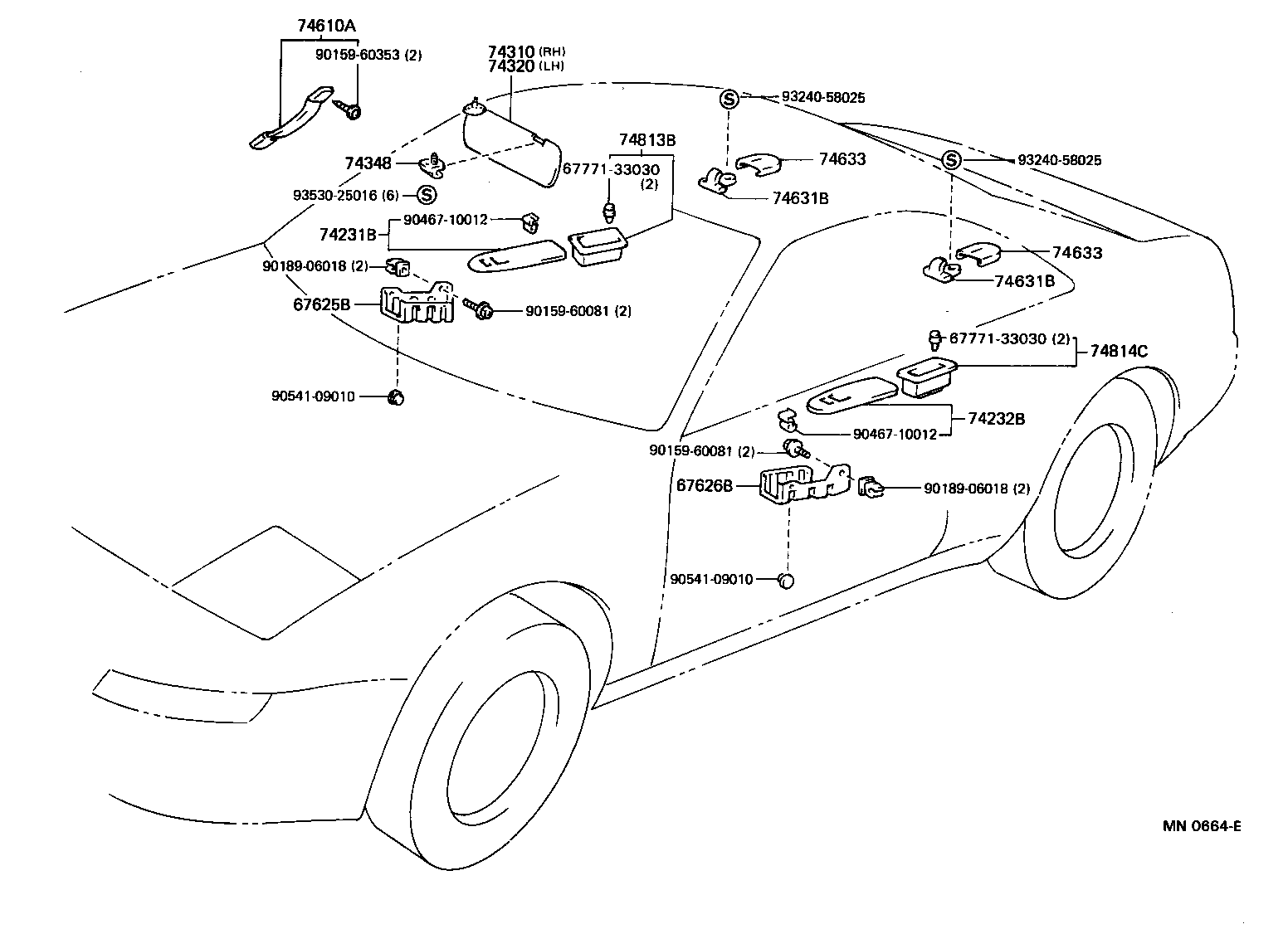

Click highlighted areas on diagram

diagram 67625B 67626B 6777133030 6777133030 74231B 74232B 74310 74320 74348 74610A 74631B 74631B 74633 74633 74813B 74814C 9015960081 9015960081 9015960353 9018906018 9018906018 9046710012 9046710012 9054109010 9054109010 9324058025 9324058025 9353025016
Part # Description Qty Price
67625B - BRACKET, DOOR TRIM, NO.1 RH
67625-17040

SW20

 1
67625-17041

SW20

 1
67626B - BRACKET, DOOR TRIM, NO.2 RH
67626-17030

SW20

 1
67626-17031

SW20

 1
74231B - PANEL, DOOR ARMREST BASE, RH
74231-1712001

SW20..RHD

BLACK,TRIM2#

 1
74231-1713001

SW20..RHD

W(POWER WINDOW),BLACK,TRIM2#

 1
74231-1713004

SW20..RHD

W(POWER WINDOW),DARK BLUE,TRIM8#

 1
74231-1712004

SW20..RHD

DARK BLUE,TRIM8#

 1
74232B - PANEL, DOOR ARMREST BASE, LH
74232-1705004

SW20..RHD..TWC..W

W(POWER WINDOW),DARK BLUE,TRIM8#

 1
74232-1705001

SW20..RHD..TWC..W

W(POWER WINDOW),BLACK,TRIM2#

 1
74232-1705001

SW20..HTWC;SW20..RHD..(ARL,G)

BLACK,TRIM2#

 1
74232-1705004

SW20..HTWC;SW20..RHD..(ARL,G)

DARK BLUE,TRIM8#

 1
74310 - VISOR ASSY, RH
74310-1724004

SW20..RHD..CP

W(MOON ROOF),DARK BLUE,TRIM8#

 1
74310-1722004

SW20..RHD..CP

DARK BLUE,TRIM8#

 1
74310-1722001

SW20..RHD..CP

BLACK,TRIM2#

 1
74310-1724001

SW20..RHD..CP

W(MOON ROOF),BLACK,TRIM2#

 1
74320 - VISOR ASSY, LH
74320-1723004

SW20..RHD..CP

DARK BLUE,TRIM8#

 1
74320-1724001

SW20..RHD..CP

W(MOON ROOF),BLACK,TRIM2#

 1
74320-1723001

SW20..RHD..CP

BLACK,TRIM2#

 1
74320-1724004

SW20..RHD..CP

W(MOON ROOF),DARK BLUE,TRIM8#

 1
74348 - HOLDER, VISOR
74348-3001014

SW20

DARK BLUE,TRIM8#

 2
74348-3001001

SW20

BLACK,TRIM2#

 2
74610A - GRIP SUB-ASSY, ASSIST
74610-1702001

SW20

BLACK,TRIM2#

 1
74610-1702004

SW20

DARK BLUE,TRIM8#

 1
74631B - HOOK, COAT
74631-1702001

SW20..RHD

BLACK,TRIM2#

 2
74631-1702004

SW20..RHD

DARK BLUE,TRIM8#

 2
74631B - HOOK, COAT
74631-1702001

SW20..RHD

BLACK,TRIM2#

 2
74631-1702004

SW20..RHD

DARK BLUE,TRIM8#

 2
74633 - CAP, COAT HOOK
74633-1701004

SW20..RHD

DARK BLUE,TRIM8#

 2
74633-1701001

SW20..RHD

BLACK,TRIM2#

 2
74633 - CAP, COAT HOOK
74633-1701004

SW20..RHD

DARK BLUE,TRIM8#

 2
74633-1701001

SW20..RHD

BLACK,TRIM2#

 2
74813B - HANDLE, FRONT DOOR PULL, RH
74813-1701004

SW20

DARK BLUE,TRIM8#

 1
74813-1701001

SW20

BLACK,TRIM2#

 1
74813-1701122

SW20

BLACK,TRIM2#

 1
74814C - HANDLE, FRONT DOOR PULL, LH
74814-1701001

SW20

BLACK,TRIM2#

 1
74814-1701122

SW20

BLACK,TRIM2#

 1
74814-1701004

SW20

DARK BLUE,TRIM8#

 1
Common parts
67771-33030
90159-60081
90159-60353
90189-06018
90467-10012
90541-09010
93240-58025
93530-25016
