SW20R-ACPZKW (1989)
Toyota Mr2
Production
Dec 1989
-
Dec 1991
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8912-9208)3SFE

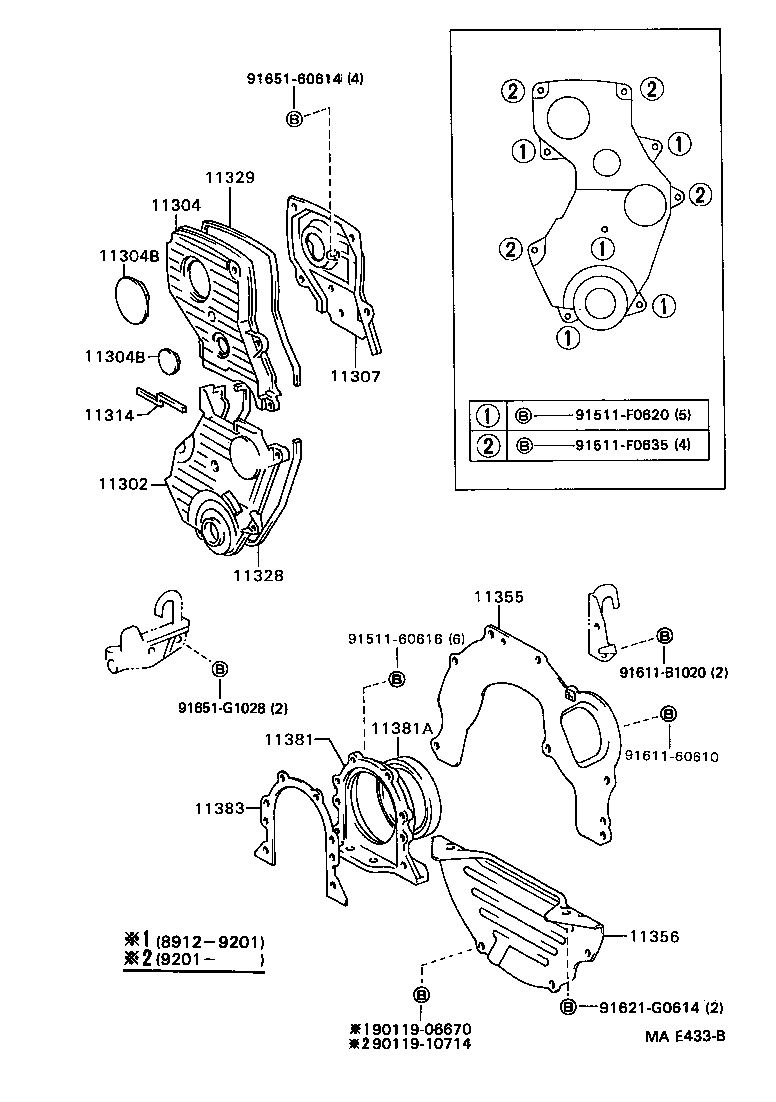

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11302-74011 |
3SFE..SW20 |
1 | ||
| 11304 - COVER, TIMING CHAIN OR BELT, NO.2 | ||||
| 11303-74010 |
3SFE..SW20 |
1 | ||
| 11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2) | ||||
| 90950-01489 |
3SFE..SW20 OD=33 |
1 | ||
| 90950-01497 |
3SFE..SW20 OD=76 |
1 | ||
| 11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2) | ||||
| 90950-01489 |
3SFE..SW20 OD=33 |
1 | ||
| 90950-01497 |
3SFE..SW20 OD=76 |
1 | ||
| 11307 - COVER, SUB-ASSY, TIMING BELT, NO.3 | ||||
| 11304-74010 |
3SFE..SW20 |
1 | ||
| 11314 - GASKET, TIMING CHAIN NO.2 COVER | ||||
| 11319-63010 |
3SFE..SW20 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-74010 |
3SFE..SW20 |
1 | ||
| 11329 - GASKET, TIMING GEAR REAR COVER | ||||
| 11329-74010 |
3SFE..SW20 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-74030 |
3S#..SW20 |
1 | ||
| 11356 - PLATE, REAR END, NO.2 | ||||
| 11356-63031 |
3S#..SW20 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-63012 |
3S#..SW20 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-89001 |
3S#..SW20 |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-63011 |
3SFE..SW20 |
1 | ||
| Common parts | ||||
| 90119-06670 | ||||
| 90119-10714 | ||||
| 91511-60616 | ||||
| 91511-F0620 | ||||
| 91511-F0635 | ||||
| 91611-60610 | ||||
| 91611-B1020 | ||||
| 91621-G0614 | ||||
| 91651-60614 | ||||
| 91651-G1028 | ||||
