SW20R-ACMZKW (1989)
Toyota Mr2
Production
Dec 1989
-
Aug 1992
Engine
3SFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8912-9208)3SFE

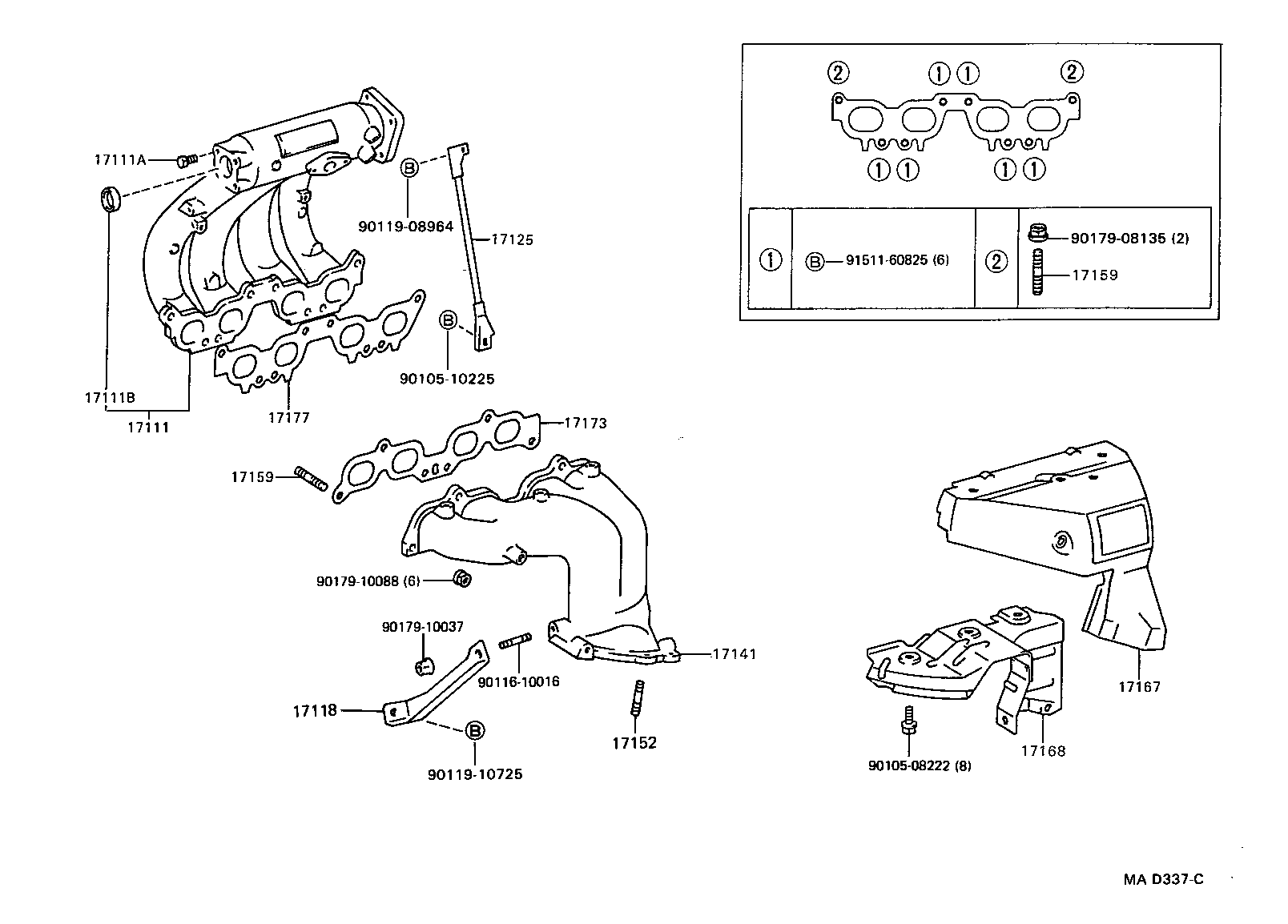

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-74071 |
3SFE..SW20 |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90345-51006 |
3SFE..SW20 |
3 | ||
| 17111B - PLUG, NO.2 | ||||
| 96411-44000 |
3S#..SW20 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-74040 |
3SFE..SW20 |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-74021 |
3SFE..SW20 |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10058 |
3S#..SW20 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10063 |
3SFE..SW20 EXHAUST MANIFOLD |
6 | ||
| 92122-60822 |
3SFE..SW20 INTAKE MANIFOLD |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10063 |
3SFE..SW20 EXHAUST MANIFOLD |
6 | ||
| 92122-60822 |
3SFE..SW20 INTAKE MANIFOLD |
2 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-74050 |
3SFE..SW20 |
1 | ||
| 17167-74210 |
3SFE..SW20 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-74110 |
3SFE..SW20 |
1 | ||
| 17168-74030 |
3SFE..SW20 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-74040 |
3SFE..SW20 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-74070 |
3SFE..SW20 |
1 | ||
| 17177-74041 |
3SFE..SW20 |
1 | ||
| Common parts | ||||
| 90105-08222 | ||||
| 90105-10225 | ||||
| 90116-10016 | ||||
| 90119-08964 | ||||
| 90119-10725 | ||||
| 90179-08135 | ||||
| 90179-10037 | ||||
| 90179-10088 | ||||
| 91511-60825 | ||||
