SW20R-ACMZFW (1989)

Toyota Mr2

Production Dec 1989 - Dec 1991
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

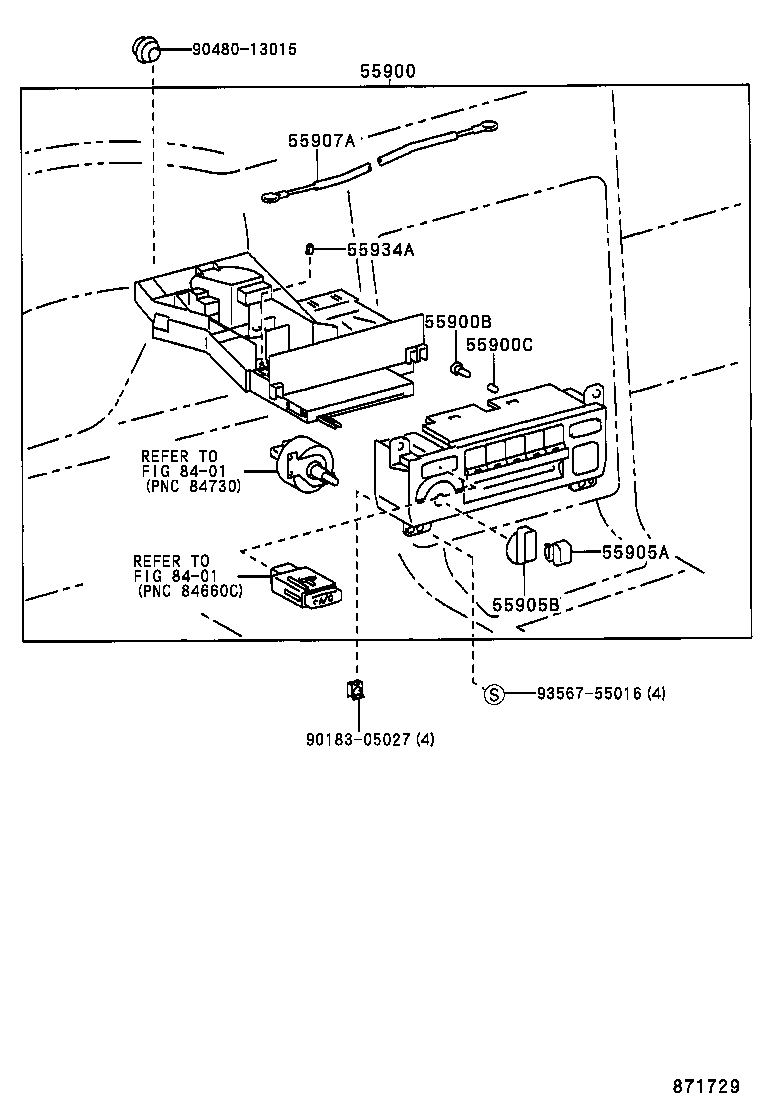

ILLUST NO. 1 OF 2(8912- )

Click highlighted areas on diagram

HEATER CONTROL

diagram 55900 55900B 55900C 55905A 55905B 55907A 55934A 8401 8401 9018305027 9048013015 9356755016
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-17080

SW20..RHD..(G,W)

W(AIR CONDITIONER)

 1
55900-17070

SW20..RHD

 1
55900B - BULB, AIR CONDITIONER CONTROL
84999-10090

SW20

12V 1.8W

 2
55900C - CAP, AIR CONDITIONER CONTROL BULB
84998-10120

SW20

12V 1.8W

 2
55905A - KNOB, HEATER CONTROL
55905-17040

SW20

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-17030

SW20..RHD

 1
55934A - RETAINER, HEATER CONTROL CABLE
55934-17010

SW20

 2
Common parts
90183-05027
90480-13015
93567-55016
Linked diagrams
8401

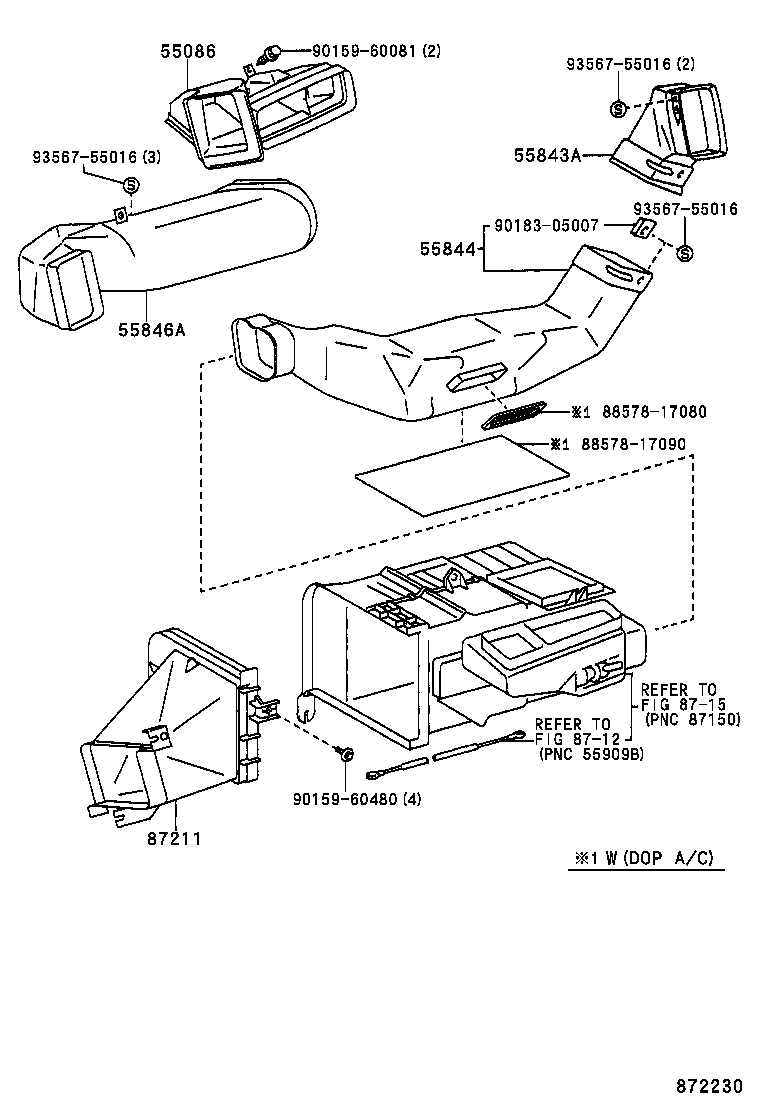

ILLUST NO. 2 OF 2(8912- )

Click highlighted areas on diagram

AIR DUCT

diagram 55086 55843A 55844 55846A 8712 8715 87211 8857817080 8857817090 9015960081 9015960480 9018305007 9356755016 9356755016 9356755016
Part # Description Qty Price
55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55086-17010

SW20..RHD

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-17030

SW20..RHD

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-17050

SW20..RHD..(G,W)

W(AIR CONDITIONER)

 1
55844-17030

SW20..RHD

 1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-17010

SW20..RHD

 1
87211 - DUCT, AIR, NO.1
87201-17030

SW20..RHD

 1
Common parts
88578-17080
88578-17090
90159-60081
90159-60480
90183-05007
93567-55016
Linked diagrams
8712
8715
