SW20R-ACMZFW (1989)

Toyota Mr2

Production Dec 1989 - Dec 1991
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912-9606)

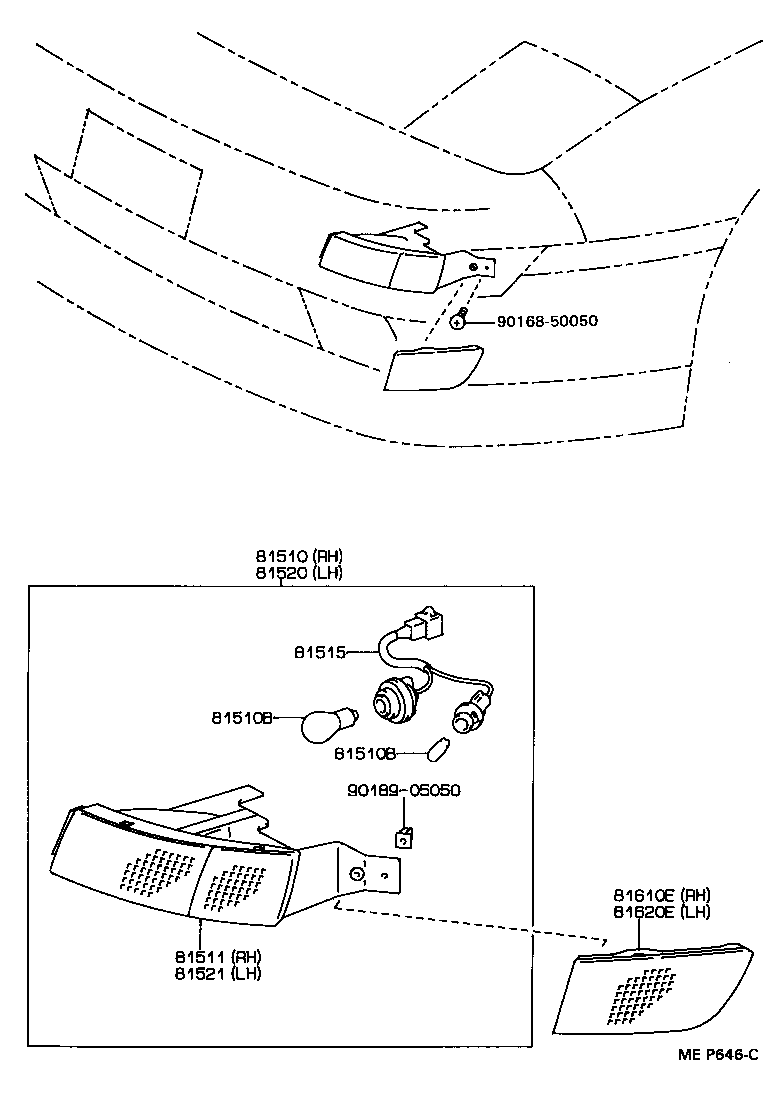

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81511 81515 81520 81521 81610E 81620E 9016850050 9018905050
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-80075

SW20..W

 1
81510-80076

SW20..ARL,G

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

SW20

12V 21W

 2
99132-12050

SW20

12V 5W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

SW20

12V 21W

 2
99132-12050

SW20

12V 5W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-17070

SW20

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81515-17050

SW20..ARL,G

 2
81515-17070

SW20..W

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-80075

SW20..W

 1
81520-80076

SW20..ARL,G

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-17070

SW20

 1
81610E - COVER ASSY, RH
81610-17010

SW20

 1
81620E - COVER ASSY, LH
81620-17010

SW20

 1
Common parts
90168-50050
90189-05050
