SW20R-ACMZFW (1989)

Toyota Mr2

Production Dec 1989 - Dec 1991
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

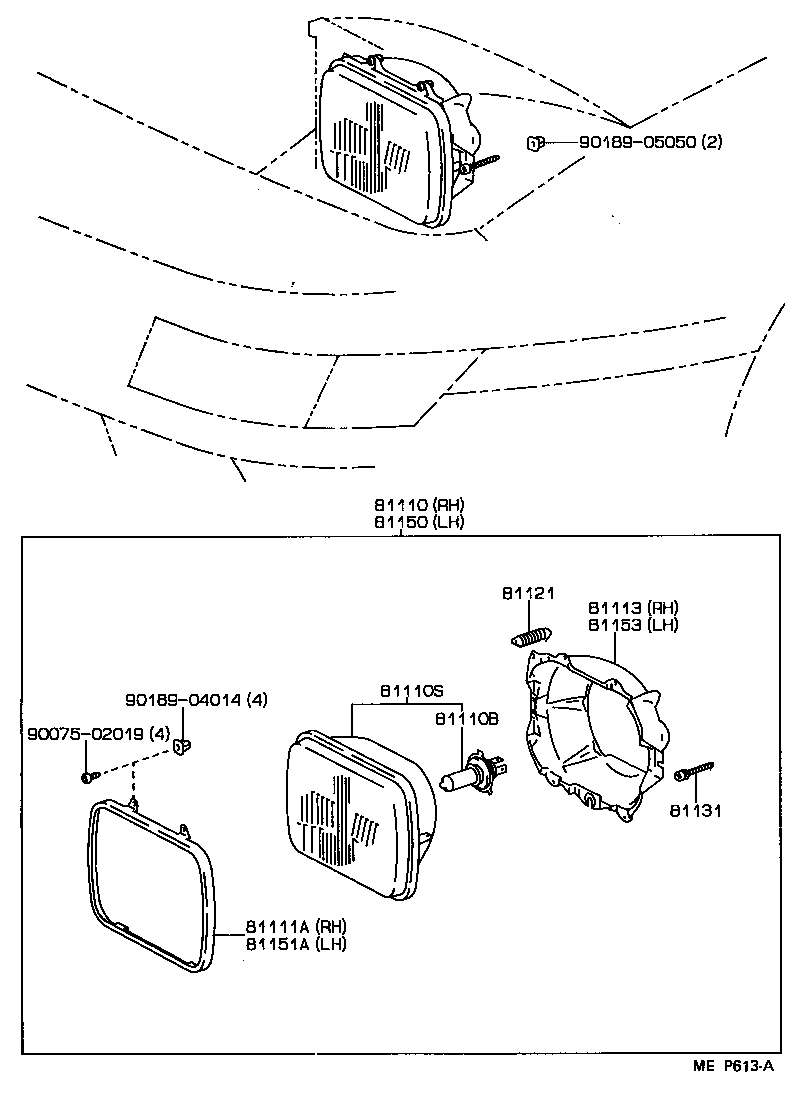

(8912- )G,W ; (9009- )ARL

Click highlighted areas on diagram

diagram 81110 81110B 81110S 81111A 81113 81121 81131 81150 81151A 81153 9007502019 9018904014 9018905050
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-17060

SW20..RHD..(G,W)

RH TRAFFIC SPEC

 1
81110-17080

SW20..RHD..(G,W)

 1
81110-17090

SW20..RHD..(G,W)

UNITED KINGDOM SPEC & RH TRAFFIC SPEC

 1
81110-17100

SW20..RHD..(G,W)

UNITED KINGDOM SPEC

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

SW20..G,W

12V 60/55W,*HAL *WH

 2
90981-13015

SW20

12V 60/55W,*HAL *WH

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04025

SW20..RHD..(G,W)

12V 60/55W,*HWS,RH TRAFFIC SPEC

 2
90981-04024

SW20..RHD..(G,W)

12V 60/55W,*HWS

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-2B360

SW20

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-2B360

SW20

 1
81113-17090

SW20..RHD..(G,W)

UNITED KINGDOM SPEC

 1
81121 - SPRING, HEADLAMP TENSION
90075-25504

SW20..RHD..(G,W)

UNITED KINGDOM SPEC

 2
90075-25501

SW20

 2
81131 - SCREW, HEADLAMP ADJUSTING
90075-00003

SW20..RHD..(G,W)

UNITED KINGDOM SPEC

 4
81131-17010

SW20

 4
81150 - HEADLAMP ASSY, LH
81150-17100

SW20..RHD..(G,W)

UNITED KINGDOM SPEC

 1
81150-17060

SW20..RHD..(G,W)

RH TRAFFIC SPEC

 1
81150-17080

SW20..RHD..(G,W)

 1
81150-17090

SW20..RHD..(G,W)

UNITED KINGDOM SPEC & RH TRAFFIC SPEC

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-2B360

SW20

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-2B360

SW20

 1
81153-17090

SW20..RHD..(G,W)

UNITED KINGDOM SPEC

 1
Common parts
90075-02019
90189-04014
90189-05050

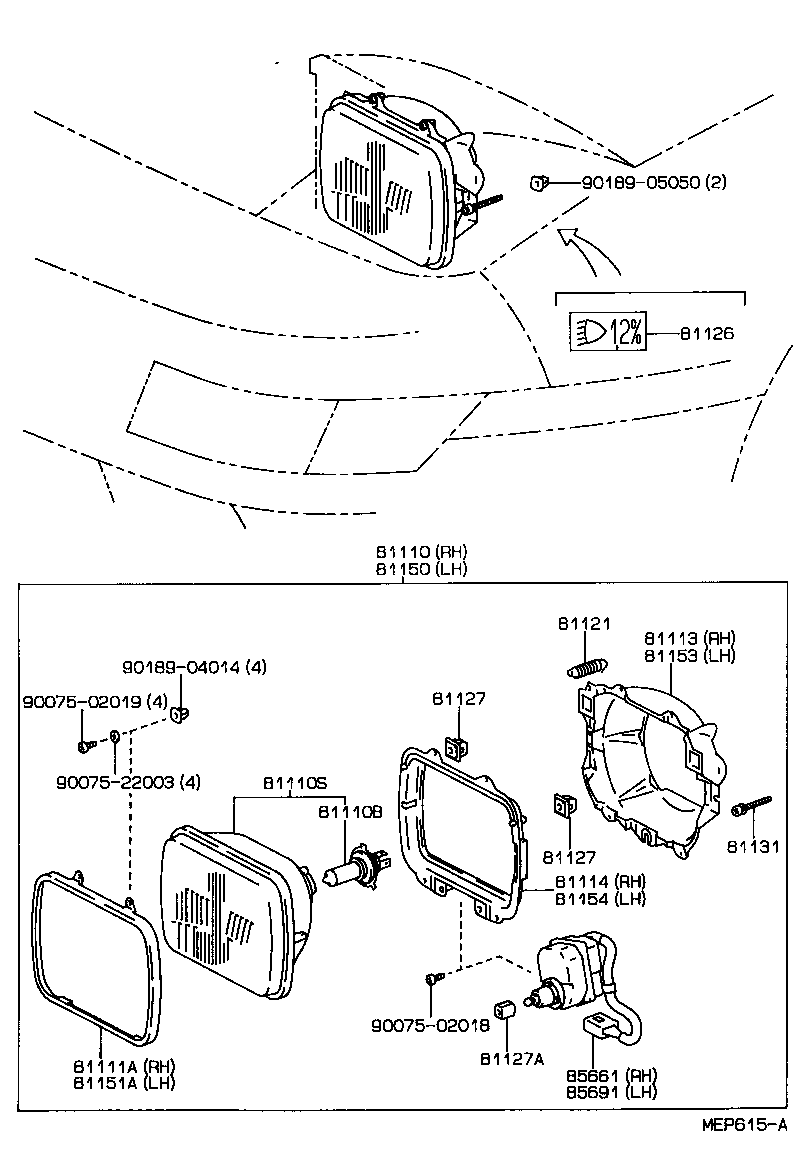

(8912- )LHD..G ; (8912- )RHD..G,W

Click highlighted areas on diagram

W/LEVELING

diagram 81110 81110B 81110S 81111A 81113 81114 81121 81126 81127 81127 81127A 81131 81150 81151A 81153 81154 85661 85691 9007502018 9007502019 9007522003 9018904014 9018905050
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-17060

SW20..RHD..(G,W)

RH TRAFFIC SPEC

 1
81110-17080

SW20..RHD..(G,W)

 1
81110-17090

SW20..RHD..(G,W)

UNITED KINGDOM SPEC & RH TRAFFIC SPEC

 1
81110-17100

SW20..RHD..(G,W)

UNITED KINGDOM SPEC

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

SW20..G,W

12V 60/55W,*HAL *WH

 2
90981-13015

SW20

12V 60/55W,*HAL *WH

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04025

SW20..RHD..(G,W)

12V 60/55W,*HWS,RH TRAFFIC SPEC

 2
90981-04024

SW20..RHD..(G,W)

12V 60/55W,*HWS

 2
81111A - RING, SEALED BEAM RETAINING, NO.1 RH
81111-2B360

SW20

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-2B360

SW20

 1
81113-17090

SW20..RHD..(G,W)

UNITED KINGDOM SPEC

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81173-2B410

SW20..RHD..(G,W)

UNITED KINGDOM SPEC

 1
81121 - SPRING, HEADLAMP TENSION
90075-25504

SW20..RHD..(G,W)

UNITED KINGDOM SPEC

 2
90075-25501

SW20

 2
81126 - PLATE, HEADLAMP
81126-1B140

SW20..LHD..G;SW20..RHD..(G,W)

 2
81127 - BEARING, HEADLAMP, NO.1
81128-22630

SW20..RHD..(G,W)

UNITED KINGDOM SPEC

 4
81127 - BEARING, HEADLAMP, NO.1
81128-22630

SW20..RHD..(G,W)

UNITED KINGDOM SPEC

 4
81127A - BEARING, HEADLAMP, NO.2
90075-11757

SW20..G

*FRG

 2
90075-11757

SW20..RHD..W

UNITED KINGDOM SPEC

 2
81131 - SCREW, HEADLAMP ADJUSTING
90075-00003

SW20..RHD..(G,W)

UNITED KINGDOM SPEC

 4
81131-17010

SW20

 4
81150 - HEADLAMP ASSY, LH
81150-17100

SW20..RHD..(G,W)

UNITED KINGDOM SPEC

 1
81150-17060

SW20..RHD..(G,W)

RH TRAFFIC SPEC

 1
81150-17080

SW20..RHD..(G,W)

 1
81150-17090

SW20..RHD..(G,W)

UNITED KINGDOM SPEC & RH TRAFFIC SPEC

 1
81151A - RING, SEALED BEAM RETAINING, NO.1 LH
81111-2B360

SW20

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-2B360

SW20

 1
81153-17090

SW20..RHD..(G,W)

UNITED KINGDOM SPEC

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81133-2B410

SW20..RHD..(G,W)

UNITED KINGDOM SPEC

 1
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-17010

SW20..RHD..(G,W)

UNITED KINGDOM SPEC

 1
85691 - MOTOR, HEADLAMP LEVELING, LH
85691-17010

SW20..RHD..(G,W)

UNITED KINGDOM SPEC

 1
Common parts
90075-02018
90075-02019
90075-22003
90189-04014
90189-05050
