SW20R-ACMZFW (1989)

Toyota Mr2

Production Dec 1989 - Dec 1991
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

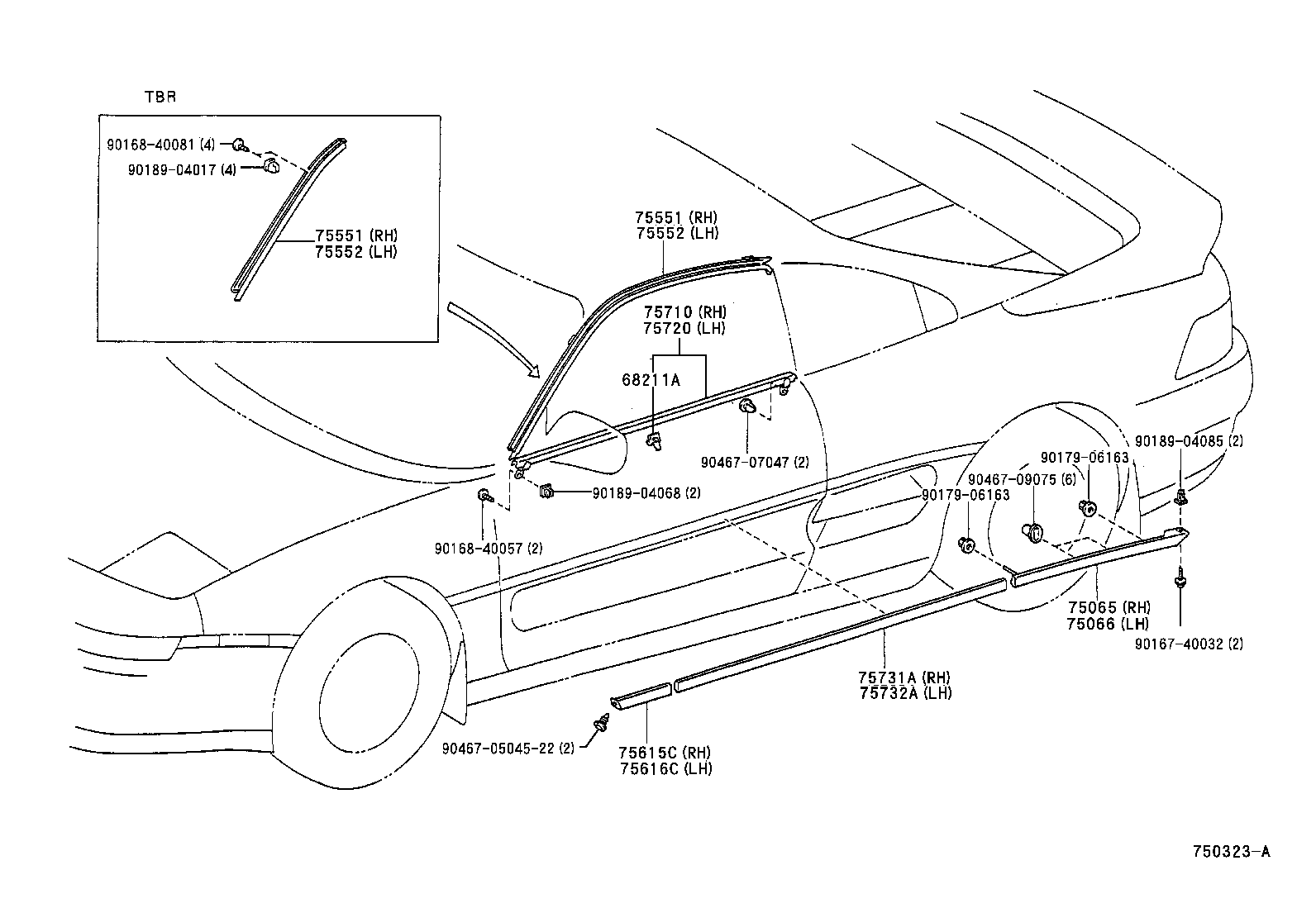

Click highlighted areas on diagram

diagram 68211A 75065 75066 75551 75551 75552 75552 75615C 75616C 75710 75720 75731A 75732A 9016740032 9016840057 9016840081 9017906163 9017906163 9018904017 9018904068 9018904085 904670504522 9046707047 9046709075
Part # Description Qty Price
75065 - MOULDING SUB-ASSY, QUARTER, LOWER RH
75065-1703004

SW20..TWC..(G,W)

BLUE,M,8H3

 1
75065-1703007

SW20..TWC..(G,W)

DARK GREEN, M,742

 1
75065-1703003

SW20..TWC..(G,W)

L.SILVER M,043

 1
75065-1703002

SW20..TWC..(G,W)

DARK RED M,3J6

 1
75065-1703013

SW20..TWC..(G,W)

DARK GRAY M,187 ,202

 1
75066 - MOULDING SUB-ASSY, QUARTER, LOWER LH
75066-1703013

SW20..TWC..(G,W)

DARK GRAY M,187 ,202

 1
75066-1703004

SW20..TWC..(G,W)

BLUE,M,8H3

 1
75066-1703003

SW20..TWC..(G,W)

L. SILVER M,043

 1
75066-1703002

SW20..TWC..(G,W)

DARK RED, M,3J6

 1
75066-1703007

SW20..TWC..(G,W)

DARK GREEN, M,742

 1
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75505-17010

SW20..CP

 1
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75505-17010

SW20..CP

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75506-17010

SW20..CP

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75506-17010

SW20..CP

 1
75615C - MOULDING, FRONT FENDER, REAR RH
75615-1705002

SW20..TWC..(G,W)

DARK RED, M,3J6

 1
75615-1705013

SW20..TWC..(G,W)

DARK GRAY M,187 ,202

 1
75615-1705007

SW20..TWC..(G,W)

DARK GREEN M,742

 1
75615-1705003

SW20..TWC..(G,W)

L. SILVER M,043

 1
75615-1705004

SW20..TWC..(G,W)

BLUE,M,8H3

 1
75616C - MOULDING, FRONT FENDER, REAR LH
75616-1705004

SW20..TWC..(G,W)

BLUE,M,8H3

 1
75616-1705003

SW20..TWC..(G,W)

L. SILVER M,043

 1
75616-1705002

SW20..TWC..(G,W)

DARK RED, M,3J6

 1
75616-1705007

SW20..TWC..(G,W)

DARK GREEN, M,742

 1
75616-1705013

SW20..TWC..(G,W)

DARK GRAY M,187 ,202

 1
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-17020

SW20

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-17020

SW20

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-1708003

SW20..TWC..(G,W)

L. SILVER M,043

 1
75731-1708002

SW20..TWC..(G,W)

SUPER RED 3,3J6

 1
75731-1708004

SW20..TWC..(G,W)

BLUE M,8H3

 1
75731-1708007

SW20..TWC..(G,W)

DARK TURQUOISE,742

 1
75731-1708013

SW20..TWC..(G,W)

DARK GRAY M,187 ,202

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-1708002

SW20..TWC..(G,W)

SUPER RED 3,3J6

 1
75732-1708007

SW20..TWC..(G,W)

DARK TURQUOISE MICA,742

 1
75732-1708003

SW20..TWC..(G,W)

L. SILVER M,043

 1
75732-1708004

SW20..TWC..(G,W)

BLUE,M,8H3

 1
75732-1708013

SW20..TWC..(G,W)

DARK GRAY M,187 ,202

 1
Common parts
90167-40032
90168-40057
90168-40081
90179-06163
90189-04017
90189-04068
90189-04085
90467-0504522
90467-07047
90467-09075
