SW20R-ACMZFW (1989)
Toyota Mr2

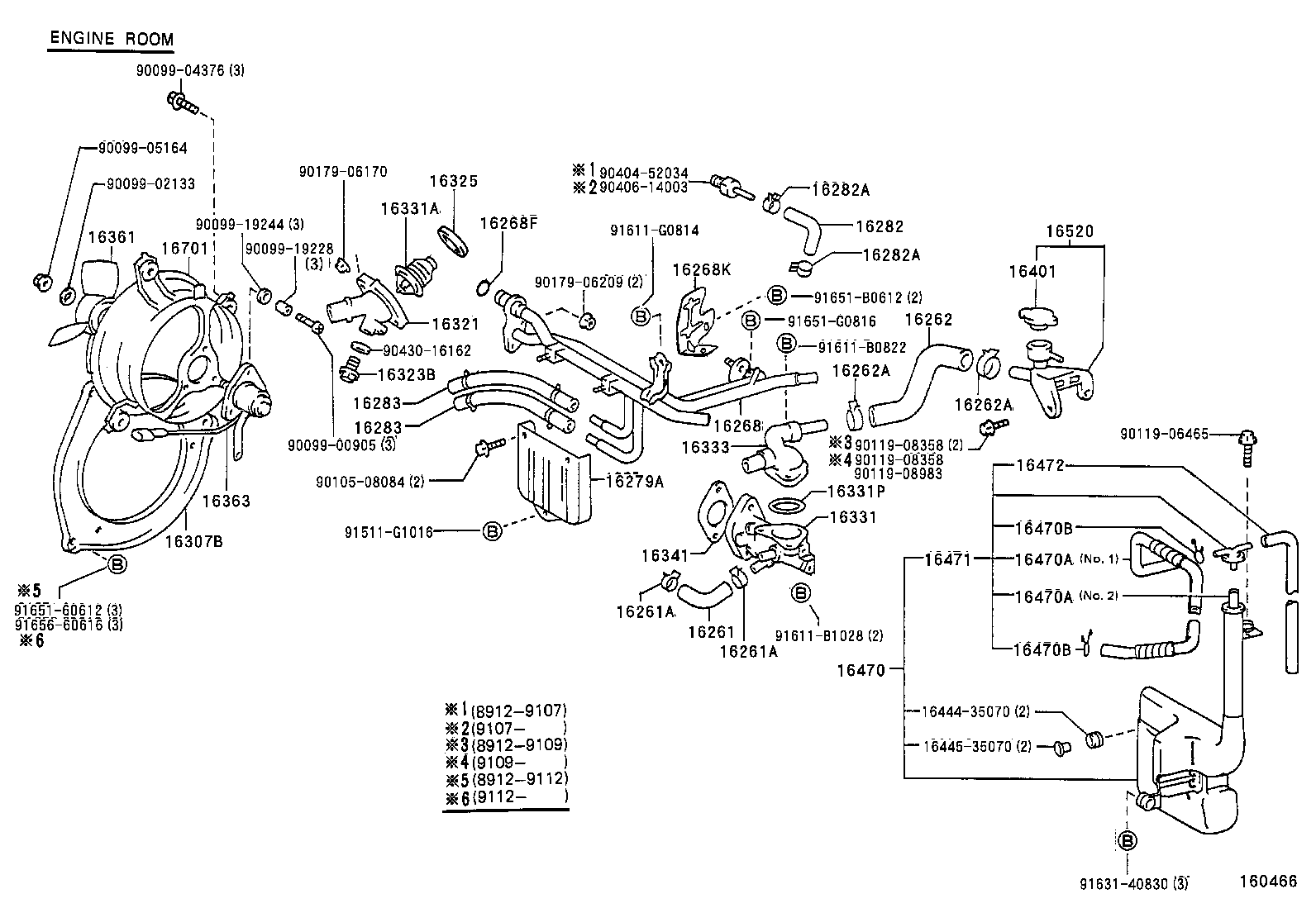

ILLUST NO. 2 OF 2(8912-9311)3SGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-88361 |
3SGE..SW20 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-22003 |
3S#..SW20 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-22003 |
3S#..SW20 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-74010 |
3SGE..SW20 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-28004 |
3S#..SW20 |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-28004 |
3S#..SW20 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-88363 |
3SGE..SW20 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24017 |
3S#..SW20 |
1 | ||
| 16268K - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3 | ||||
| 17169-74010 |
3SGE..SW20 |
1 | ||
| 16279A - PROTECTOR, HOSE HEAT | ||||
| 17169-88360 |
3SGE..SW20 |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-88380 |
3SGE..SW20 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-17005 |
3SGE..SW20 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90467-17005 |
3SGE..SW20 |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-88381 |
3SGE..SW20 |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-88381 |
3SGE..SW20 |
2 | ||
| 16307B - BRACKET SUB-ASSY, FAN | ||||
| 16307-74010 |
3S#..SW20 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-88382 |
3S#..SW20 |
1 | ||
| 16323B - PLUG(FOR WATER INLET HOUSING) | ||||
| 90341-16008 |
3S#..SW20 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
3S#..SW20 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-88384 |
3SGE..SW20..W |
1 | ||
| 16304-88385 |
3SGE..SW20..ARL,G |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03075 |
3S#..SW20 *WAX 82-95 |
1 | ||
| 16331P - RING,O(FOR WATER OUTLET) | ||||
| 90301-40005 |
3SGE..SW20 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-88360 |
3SGE..SW20 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-88380 |
3SGE..SW20 |
1 | ||
| 16361 - FAN | ||||
| 16361-16041 |
3S#..SW20 ENGINE ROOM |
1 | ||
| 16361-63020 |
3SGE..SW20;3SFE..SW20..4FC FRONT LUGGAGE |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-74040 |
3S#..SW20 ENGINE ROOM |
1 | ||
| 16363-74030 |
3SGE..SW20;3SFE..SW20..4FC FRONT LUGGAGE |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
3S#..SW20 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-74150 |
3S#..SW20 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85338-74151 |
3S#..SW20 NO.1 |
1 | ||
| 90445-12078 |
3S#..SW20 *H,L=530,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85338-74151 |
3S#..SW20 NO.1 |
1 | ||
| 90445-12078 |
3S#..SW20 *H,L=530,NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3S#..SW20 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
3S#..SW20 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-74130 |
3S#..SW20 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-74150 |
3S#..SW20 |
1 | ||
| 16520 - FILLER ASSY, WATER | ||||
| 16520-74020 |
3S#..SW20 |
1 | ||
| 16520-74010 |
3S#..SW20 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-74330 |
3S#..SW20 ENGINE ROOM |
1 | ||
| 16711-74290 |
3SGE..SW20;3SFE..SW20..4FC FRONT LUGGAGE |
1 | ||
| Common parts | ||||
| 16444-35070 | ||||
| 16445-35070 | ||||
| 90099-00905 | ||||
| 90099-02133 | ||||
| 90099-04376 | ||||
| 90099-05164 | ||||
| 90099-19228 | ||||
| 90099-19244 | ||||
| 90105-08084 | ||||
| 90119-06465 | ||||
| 90119-08358 | ||||
| 90119-08983 | ||||
| 90179-06170 | ||||
| 90179-06209 | ||||
| 90404-52034 | ||||
| 90406-14003 | ||||
| 90430-16162 | ||||
| 91511-G1016 | ||||
| 91611-B0822 | ||||
| 91611-B1028 | ||||
| 91611-G0814 | ||||
| 91631-40830 | ||||
| 91651-60612 | ||||
| 91651-B0612 | ||||
| 91651-G0816 | ||||
| 91656-60616 | ||||
ILLUST NO. 1 OF 2(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-16041 |
3S#..SW20 ENGINE ROOM |
1 | ||
| 16361-63020 |
3SGE..SW20;3SFE..SW20..4FC FRONT LUGGAGE |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-74040 |
3S#..SW20 ENGINE ROOM |
1 | ||
| 16363-74030 |
3SGE..SW20;3SFE..SW20..4FC FRONT LUGGAGE |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-74600 |
3SGE..SW20;3SFE..SW20..4FC |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
3S#..SW20 |
2 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
3S#..SW20 |
2 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
3S#..SW20 |
2 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
3S#..SW20 |
2 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-74160 |
3S#..SW20 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74080 |
3S#..SW20 |
2 | ||
| 16537 - SUPPORT, RADIATOR PIPE, NO.1 | ||||
| 16537-74010 |
3S#..SW20 |
1 | ||
| 16538 - SUPPORT, RADIATOR PIPE, NO.2 | ||||
| 16538-74010 |
3S#..SW20 |
1 | ||
| 16558B - HOSE, RADIATOR, NO.7 | ||||
| 16558-74010 |
3S#..SW20 |
1 | ||
| 16558C - CLIP, RADIATOR HOSE, NO.7 | ||||
| 90467-34003 |
3S#..SW20 |
2 | ||
| 16558C - CLIP, RADIATOR HOSE, NO.7 | ||||
| 90467-34003 |
3S#..SW20 |
2 | ||
| 16559 - PIPE, RADIATOR, NO.4 | ||||
| 16559-74010 |
3S#..SW20 |
1 | ||
| 16569 - PIPE, RADIATOR, NO.5 | ||||
| 16569-74010 |
3S#..SW20..5F |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-74150 |
3SGE..SW20 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
3S#..SW20 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
3S#..SW20 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-74140 |
3S#..SW20 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
3S#..SW20 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
3S#..SW20 |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-74020 |
3S#..SW20 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-34003 |
3S#..SW20 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-34003 |
3S#..SW20 |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-74010 |
3S#..SW20 |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90467-34003 |
3S#..SW20 |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90467-34003 |
3S#..SW20 |
2 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16575-74010 |
3S#..SW20 |
1 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 90467-34003 |
3S#..SW20 |
2 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 90467-34003 |
3S#..SW20 |
2 | ||
| 16576 - HOSE, RADIATOR, NO.6 | ||||
| 16576-74010 |
3S#..SW20 |
1 | ||
| 16576A - CLIP, RADIATOR HOSE, NO.6 | ||||
| 90467-34003 |
3S#..SW20 |
2 | ||
| 16576A - CLIP, RADIATOR HOSE, NO.6 | ||||
| 90467-34003 |
3S#..SW20 |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-74010 |
3S#..SW20 |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-74010 |
3S#..SW20..RHD |
1 | ||
| 16579 - PIPE, RADIATOR, NO.3 | ||||
| 16579-74010 |
3S#..SW20..RHD |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-74330 |
3S#..SW20 ENGINE ROOM |
1 | ||
| 16711-74290 |
3SGE..SW20;3SFE..SW20..4FC FRONT LUGGAGE |
1 | ||
| Common parts | ||||
| 90099-00183 | ||||
| 90099-05164 | ||||
| 90105-08088 | ||||
| 90119-06256 | ||||
| 90385-10012 | ||||
| 90430-08008 | ||||
| 90446-09013 | ||||
| 90480-40006 | ||||
| 90480-40017 | ||||
| 90561-08006 | ||||
| 91631-60612 | ||||
| 91632-60612 | ||||
| 91651-60612 | ||||
| 91651-60818 | ||||
| 91651-60820 | ||||
| 91656-60616 | ||||
| Linked diagrams | ||||
| 3514 | ||||
| 8718 | ||||
