SW20L-AJMZFW (1989)
Toyota Mr2
Production
Dec 1989
-
Dec 1991
Engine
3SGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8912-9311)3SGE

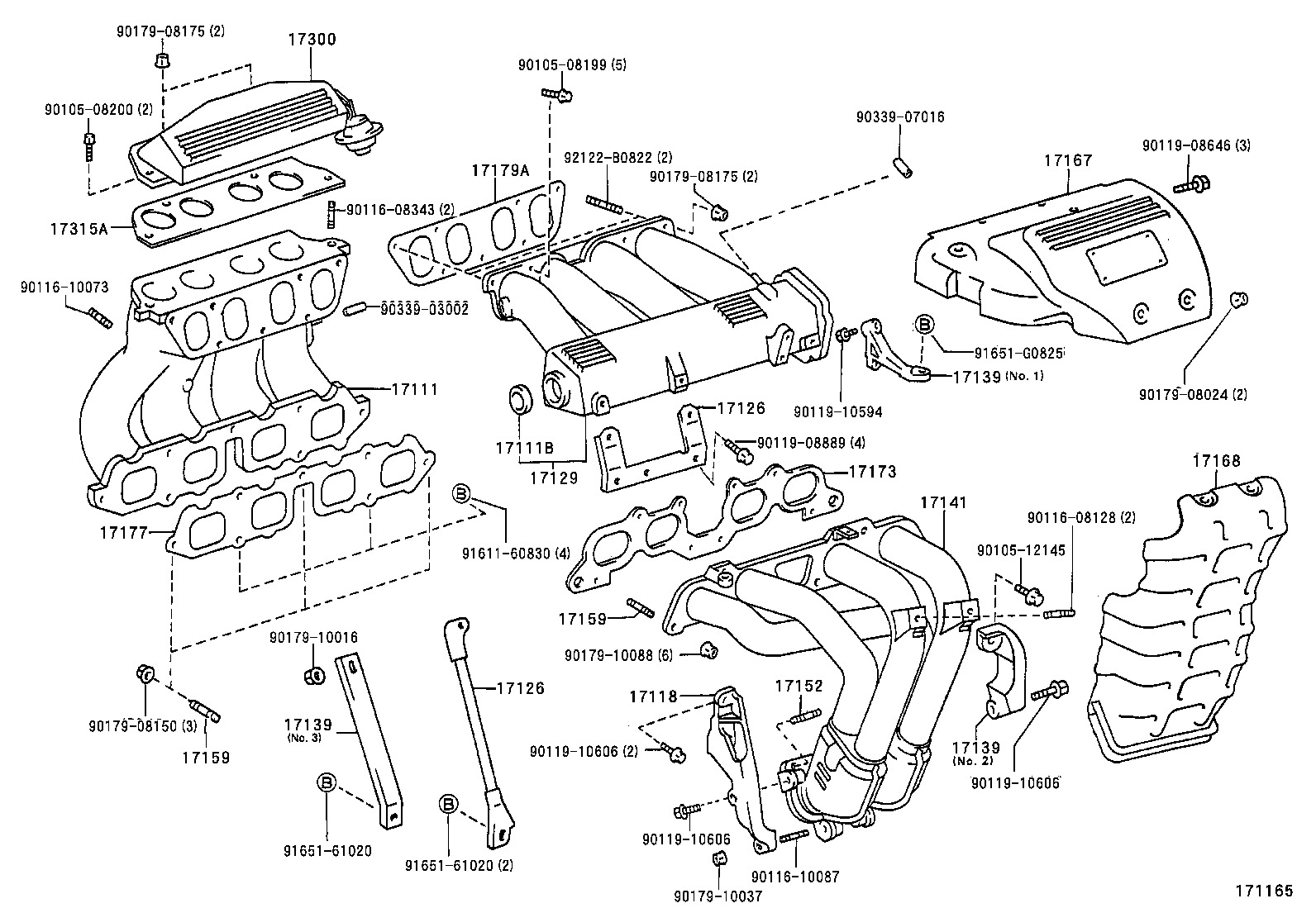

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-88361 |
3SGE..SW20 |
1 | ||
| 17111B - PLUG, NO.2 | ||||
| 96411-44000 |
3S#..SW20 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-88363 |
3SGE..SW20 |
1 | ||
| 17126 - STAY, SURGE TANK, NO.2 | ||||
| 17126-74010 |
3SGE..SW20 |
1 | ||
| 17126 - STAY, SURGE TANK, NO.2 | ||||
| 17126-74010 |
3SGE..SW20 |
1 | ||
| 17129 - TANK, INTAKE AIR SURGE | ||||
| 17109-88360 |
3SGE..SW20 |
1 | ||
| 17139 - STAY, MANIFOLD, NO.2 | ||||
| 17138-88360 |
3SGE..SW20 NO.1 |
1 | ||
| 17139-88362 |
3SGE..SW20 NO.2 |
1 | ||
| 17139-74100 |
3SGE..SW20 NO.3 |
1 | ||
| 17139 - STAY, MANIFOLD, NO.2 | ||||
| 17138-88360 |
3SGE..SW20 NO.1 |
1 | ||
| 17139-88362 |
3SGE..SW20 NO.2 |
1 | ||
| 17139-74100 |
3SGE..SW20 NO.3 |
1 | ||
| 17139 - STAY, MANIFOLD, NO.2 | ||||
| 17138-88360 |
3SGE..SW20 NO.1 |
1 | ||
| 17139-88362 |
3SGE..SW20 NO.2 |
1 | ||
| 17139-74100 |
3SGE..SW20 NO.3 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-88363 |
3SGE..SW20 |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10058 |
3S#..SW20 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10113 |
3SGE..SW20 EXHAUST MANIFOLD |
6 | ||
| 90116-08242 |
3SGE..SW20 INTAKE MANIFOLD |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10113 |
3SGE..SW20 EXHAUST MANIFOLD |
6 | ||
| 90116-08242 |
3SGE..SW20 INTAKE MANIFOLD |
3 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-88363 |
3SGE..SW20 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-74070 |
3SGE..SW20 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-88361 |
3SGE..SW20 |
2 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-74060 |
3SGE..SW20 |
1 | ||
| 17179A - GASKET, INTAKE MANIFOLD, NO.2 | ||||
| 17171-74020 |
3SGE..SW20 |
1 | ||
| 17300 - VALVE ASSY, INTAKE AIR CONTROL | ||||
| 17300-74010 |
3SGE..SW20 |
1 | ||
| 17315A - GASKET, INTAKE AIR CONTROL VALVE | ||||
| 17315-74010 |
3SGE..SW20 |
1 | ||
| Common parts | ||||
| 90105-08199 | ||||
| 90105-08200 | ||||
| 90105-12145 | ||||
| 90116-08128 | ||||
| 90116-08343 | ||||
| 90116-10073 | ||||
| 90116-10087 | ||||
| 90119-08646 | ||||
| 90119-08889 | ||||
| 90119-10594 | ||||
| 90119-10606 | ||||
| 90179-08024 | ||||
| 90179-08150 | ||||
| 90179-08175 | ||||
| 90179-10016 | ||||
| 90179-10037 | ||||
| 90179-10088 | ||||
| 90339-03002 | ||||
| 90339-07016 | ||||
| 91611-60830 | ||||
| 91651-61020 | ||||
| 91651-G0825 | ||||
| 92122-B0822 | ||||
