SW20L-AJMZFG (1989)
Toyota Mr2
Production
Dec 1989
-
Aug 1999
Engine
3SGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(8912- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-17050 |
SW20..G,W |
1 | ||
| 04465-17030 |
SW20..G,W |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-17010 |
SW20 |
1 | ||
| 04945-12010 |
SW20 |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-17010 |
SW20 |
1 | ||
| 04947-33010 |
SW20 |
1 | ||

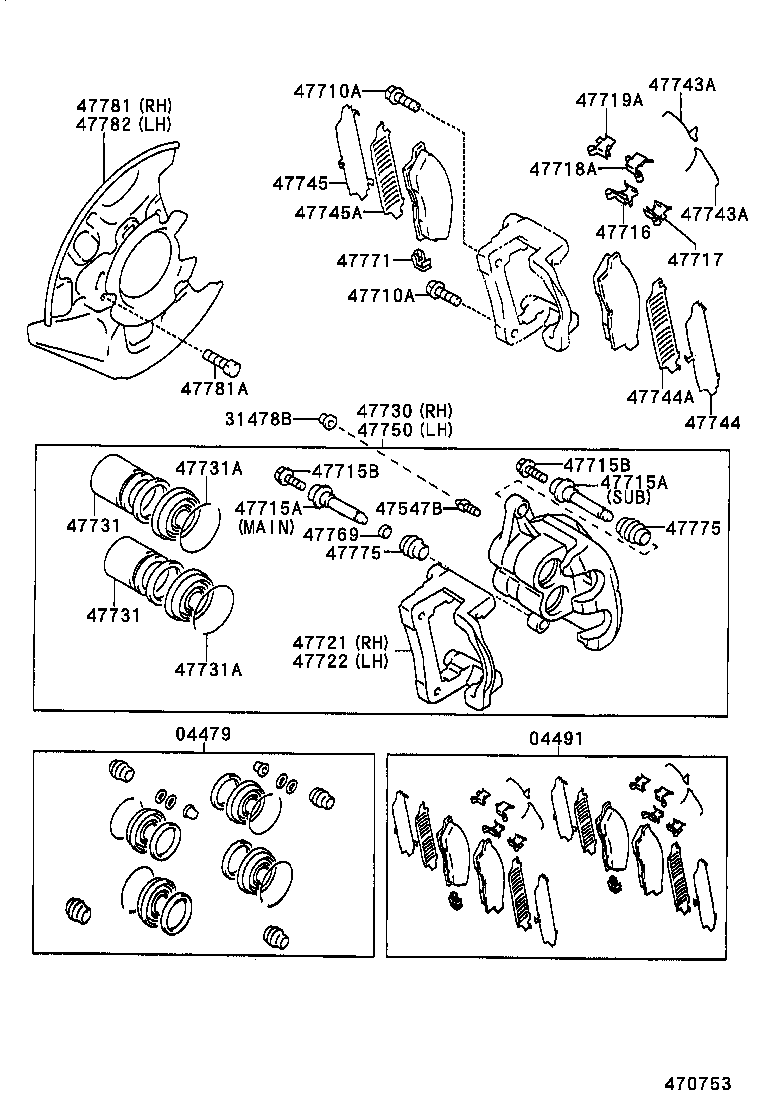

ILLUST NO. 1 OF 2(9112- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-17020 |
SW20 |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-17110 |
SW20..G,W |
1 | ||
| 04491-17170 |
SW20..G,W |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
SW20 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
SW20 |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90119-12040 |
SW20 *12-1.25PX25.8-19.5 |
4 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90119-12040 |
SW20 *12-1.25PX25.8-19.5 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-50010 |
SW20 SUB PIN SIDE |
2 | ||
| 47715-50010 |
SW20 |
4 | ||
| 47715-50030 |
SW20 MAIN PIN SIDE |
2 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-50010 |
SW20 SUB PIN SIDE |
2 | ||
| 47715-50010 |
SW20 |
4 | ||
| 47715-50030 |
SW20 MAIN PIN SIDE |
2 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08164 |
SW20 |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08164 |
SW20 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-17020 |
SW20 |
2 | ||
| 47716-33010 |
SW20 |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47716-33020 |
SW20 |
2 | ||
| 47716-17020 |
SW20 |
2 | ||
| 47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47717-33010 |
SW20 |
2 | ||
| 47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE) | ||||
| 47717-33020 |
SW20 |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-17040 |
SW20 |
1 | ||
| 47721-17050 |
SW20 |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-17020 |
SW20 |
1 | ||
| 47722-17010 |
SW20 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-17090 |
SW20 |
1 | ||
| 47730-17140 |
SW20 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-17020 |
SW20 |
4 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-17020 |
SW20 |
4 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-43003 |
SW20 |
4 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-43003 |
SW20 |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-17010 |
SW20 |
4 | ||
| 47743-17020 |
SW20 |
4 | ||
| 47743-32030 |
SW20 |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-17010 |
SW20 |
4 | ||
| 47743-17020 |
SW20 |
4 | ||
| 47743-32030 |
SW20 |
4 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47745-12060 |
SW20 |
2 | ||
| 47745-17030 |
SW20 |
2 | ||
| 47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47742-12030 |
SW20 |
2 | ||
| 47742-17020 |
SW20 |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-17030 |
SW20 |
2 | ||
| 47745-12060 |
SW20 |
2 | ||
| 47745A - SHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE) | ||||
| 47742-17020 |
SW20 |
2 | ||
| 47742-12030 |
SW20 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-17090 |
SW20 |
1 | ||
| 47750-17140 |
SW20 |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-50010 |
SW20 |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-50010 |
SW20 |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-50010 |
SW20 |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-50010 |
SW20 |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-17030 |
SW20 |
1 | ||
| 47703-17020 |
SW20 |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90119-06227 |
SW20 |
6 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47704-17020 |
SW20 |
1 | ||
| 47782-17010 |
SW20 |
1 | ||

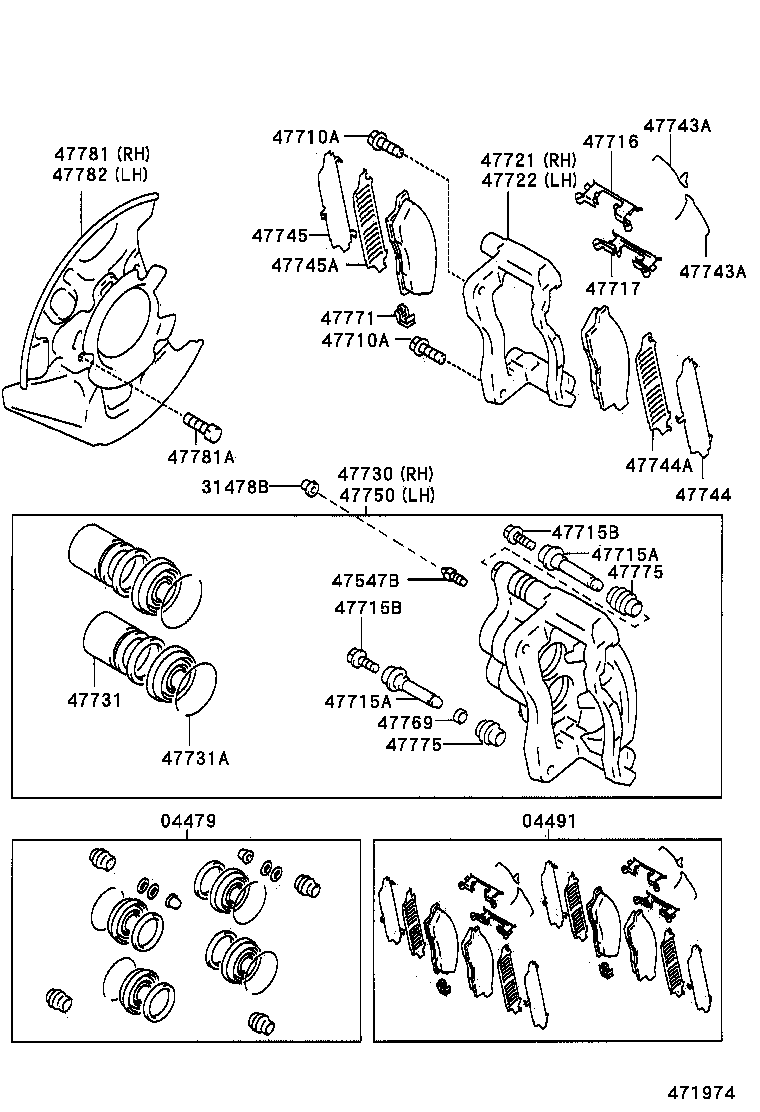

ILLUST NO. 1 OF 2(8912-9112)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-17020 |
SW20 |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-17110 |
SW20..G,W |
1 | ||
| 04491-17170 |
SW20..G,W |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
SW20 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
SW20 |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90119-12040 |
SW20 *12-1.25PX25.8-19.5 |
4 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90119-12040 |
SW20 *12-1.25PX25.8-19.5 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-50010 |
SW20 SUB PIN SIDE |
2 | ||
| 47715-50010 |
SW20 |
4 | ||
| 47715-50030 |
SW20 MAIN PIN SIDE |
2 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-50010 |
SW20 SUB PIN SIDE |
2 | ||
| 47715-50010 |
SW20 |
4 | ||
| 47715-50030 |
SW20 MAIN PIN SIDE |
2 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08164 |
SW20 |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08164 |
SW20 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-17020 |
SW20 |
2 | ||
| 47716-33010 |
SW20 |
2 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47716-33020 |
SW20 |
2 | ||
| 47716-17020 |
SW20 |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-17040 |
SW20 |
1 | ||
| 47721-17050 |
SW20 |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-17020 |
SW20 |
1 | ||
| 47722-17010 |
SW20 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-17090 |
SW20 |
1 | ||
| 47730-17140 |
SW20 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-17020 |
SW20 |
4 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-43003 |
SW20 |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-17010 |
SW20 |
4 | ||
| 47743-17020 |
SW20 |
4 | ||
| 47743-32030 |
SW20 |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-17010 |
SW20 |
4 | ||
| 47743-17020 |
SW20 |
4 | ||
| 47743-32030 |
SW20 |
4 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47745-12060 |
SW20 |
2 | ||
| 47745-17030 |
SW20 |
2 | ||
| 47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47742-12030 |
SW20 |
2 | ||
| 47742-17020 |
SW20 |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-17030 |
SW20 |
2 | ||
| 47745-12060 |
SW20 |
2 | ||
| 47745A - SHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE) | ||||
| 47742-17020 |
SW20 |
2 | ||
| 47742-12030 |
SW20 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-17090 |
SW20 |
1 | ||
| 47750-17140 |
SW20 |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-50010 |
SW20 |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-50010 |
SW20 |
2 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-50010 |
SW20 |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-50010 |
SW20 |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-17030 |
SW20 |
1 | ||
| 47703-17020 |
SW20 |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90119-06227 |
SW20 |
6 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47704-17020 |
SW20 |
1 | ||
| 47782-17010 |
SW20 |
1 | ||
