SW20L-AJMZFG (1989)

Toyota Mr2

Production Dec 1989 - Aug 1999
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9311- )

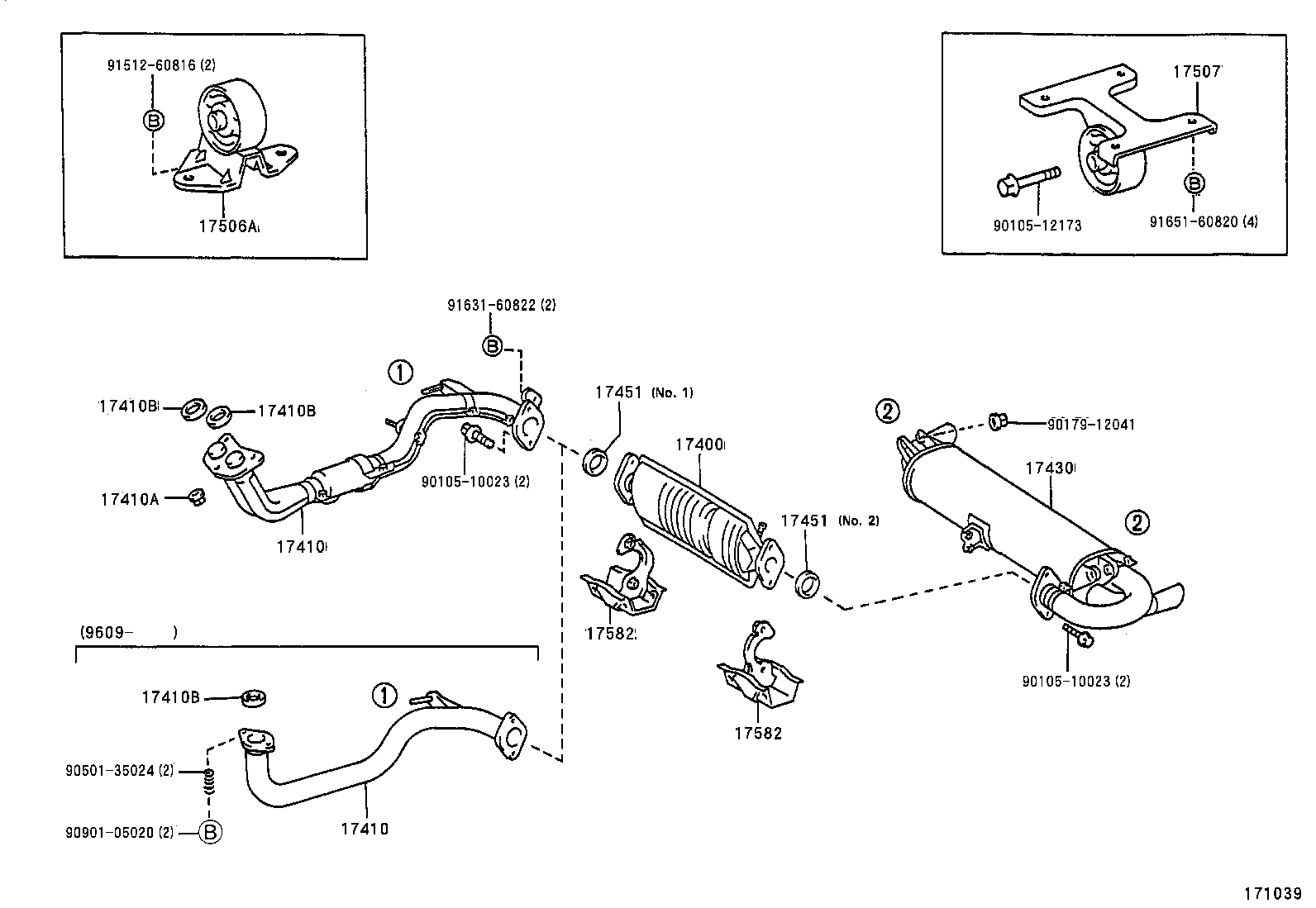

Click highlighted areas on diagram

diagram 17400 17410 17410 17410A 17410B 17410B 17410B 17430 17451 17451 17506A 17507 17582 17582 9010510023 9010510023 9010512173 9017912041 9050135024 9090105020 9151260816 9163160822 9165160820
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-74570

3SGE..SW20

 1
18450-74500

3SGE..SW20

 1
18450-74300

3SGE..SW20..ARL,G

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-74690

3SGE..SW20..ARL,G

 1
17410-7A300

3SGE..SW20

 1
17410-74740

3SGE..SW20..W

 1
17410-7A060

3SGE..SW20..G

 1
17410-7A550

3SGE..SW20..G

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-74690

3SGE..SW20..ARL,G

 1
17410-7A300

3SGE..SW20

 1
17410-74740

3SGE..SW20..W

 1
17410-7A060

3SGE..SW20..G

 1
17410-7A550

3SGE..SW20..G

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

3S#..SW20

 3
17410B - GASKET, EXHAUST PIPE
17451-74040

3SGE..SW20

 1
90917-06055

3SGE..SW20

 2
90917-06075

3SGE..SW20

 2
17410B - GASKET, EXHAUST PIPE
17451-74040

3SGE..SW20

 1
90917-06055

3SGE..SW20

 2
90917-06075

3SGE..SW20

 2
17410B - GASKET, EXHAUST PIPE
17451-74040

3SGE..SW20

 1
90917-06055

3SGE..SW20

 2
90917-06075

3SGE..SW20

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-74830

3SFE..SW20;3SGE..SW20..ARL,G

 1
17430-74850

3SGE..SW20..W

 1
17430-7A440

3SGE..SW20

 1
17451 - GASKET, EXHAUST PIPE
90917-06054

3SGE..SW20..W

 1
90917-06057

3SGE..SW20

NO.2

 1
90917-06054

3SGE..SW20..ARL,G

 2
90917-06054

3SGE..SW20

NO.1

 1
17451 - GASKET, EXHAUST PIPE
90917-06054

3SGE..SW20..W

 1
90917-06057

3SGE..SW20

NO.2

 1
90917-06054

3SGE..SW20..ARL,G

 2
90917-06054

3SGE..SW20

NO.1

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-74060

3S#..SW20

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-74040

3S#..SW20

 2
17507-74080

3S#..SW20

 2
17582 - BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER
17504-74080

3SGE..SW20

 2
17582 - BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER
17504-74080

3SGE..SW20

 2
Common parts
90105-10023
90105-12173
90179-12041
90501-35024
90901-05020
91512-60816
91631-60822
91651-60820

(8912-9311)

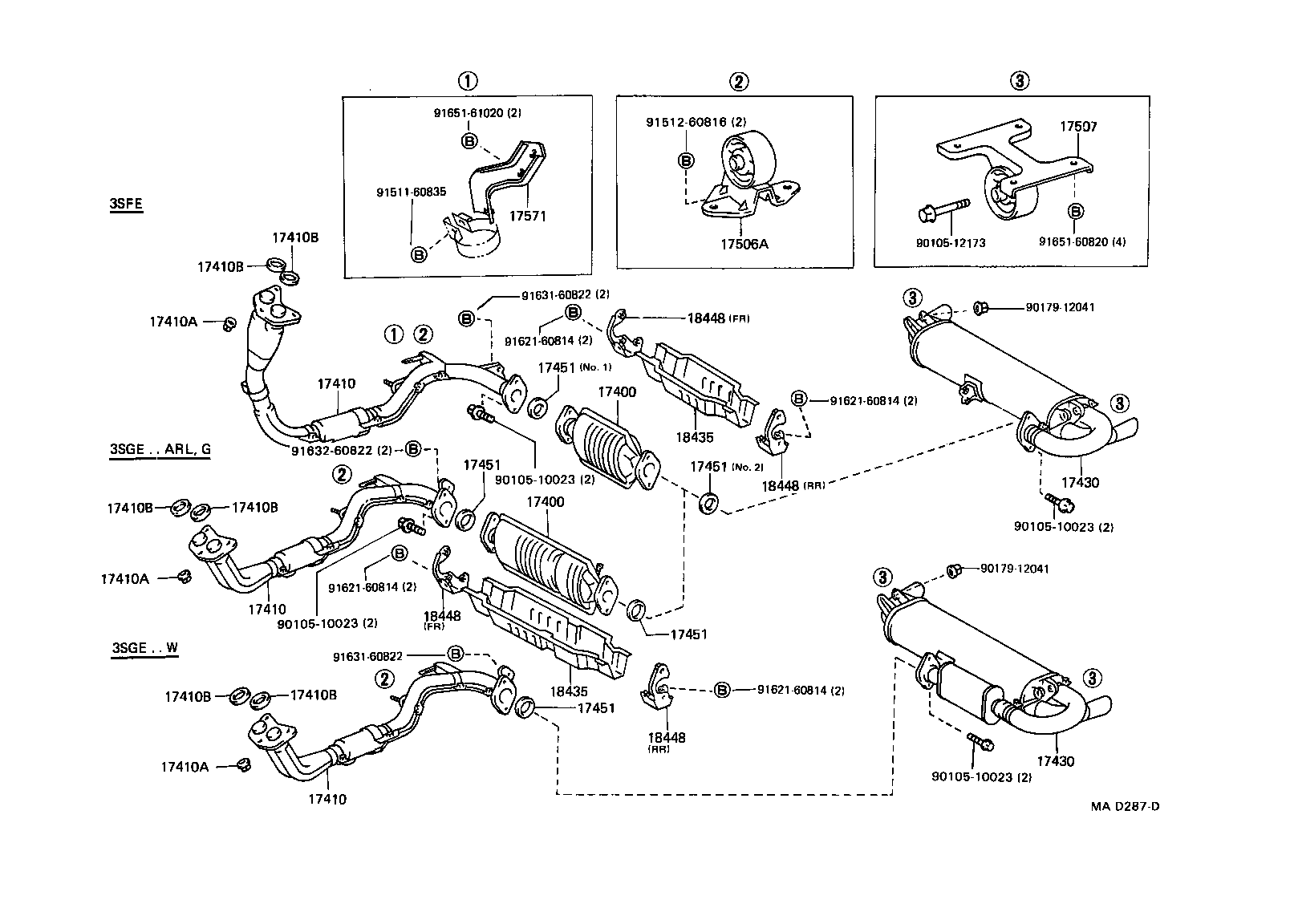

Click highlighted areas on diagram

diagram 17400 17400 17410 17410 17410 17410A 17410A 17410A 17410B 17410B 17410B 17410B 17410B 17410B 17430 17430 17451 17451 17451 17451 17451 17506A 17507 17571 18435 18435 18448 18448 18448 18448 9010510023 9010510023 9010510023 9010510023 9010512173 9017912041 9017912041 9151160835 9151260816 9162160814 9162160814 9162160814 9162160814 9163160822 9163160822 9163260822 9165160820 9165161020
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-74570

3SGE..SW20

 1
18450-74500

3SGE..SW20

 1
18450-74300

3SGE..SW20..ARL,G

 1
17400 - CONVERTER ASSY, W/CATALYST
18450-74570

3SGE..SW20

 1
18450-74500

3SGE..SW20

 1
18450-74300

3SGE..SW20..ARL,G

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-74690

3SGE..SW20..ARL,G

 1
17410-7A300

3SGE..SW20

 1
17410-74740

3SGE..SW20..W

 1
17410-7A060

3SGE..SW20..G

 1
17410-7A550

3SGE..SW20..G

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-74690

3SGE..SW20..ARL,G

 1
17410-7A300

3SGE..SW20

 1
17410-74740

3SGE..SW20..W

 1
17410-7A060

3SGE..SW20..G

 1
17410-7A550

3SGE..SW20..G

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-74690

3SGE..SW20..ARL,G

 1
17410-7A300

3SGE..SW20

 1
17410-74740

3SGE..SW20..W

 1
17410-7A060

3SGE..SW20..G

 1
17410-7A550

3SGE..SW20..G

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

3S#..SW20

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

3S#..SW20

 3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

3S#..SW20

 3
17410B - GASKET, EXHAUST PIPE
17451-74040

3SGE..SW20

 1
90917-06055

3SGE..SW20

 2
90917-06075

3SGE..SW20

 2
17410B - GASKET, EXHAUST PIPE
17451-74040

3SGE..SW20

 1
90917-06055

3SGE..SW20

 2
90917-06075

3SGE..SW20

 2
17410B - GASKET, EXHAUST PIPE
17451-74040

3SGE..SW20

 1
90917-06055

3SGE..SW20

 2
90917-06075

3SGE..SW20

 2
17410B - GASKET, EXHAUST PIPE
17451-74040

3SGE..SW20

 1
90917-06055

3SGE..SW20

 2
90917-06075

3SGE..SW20

 2
17410B - GASKET, EXHAUST PIPE
17451-74040

3SGE..SW20

 1
90917-06055

3SGE..SW20

 2
90917-06075

3SGE..SW20

 2
17410B - GASKET, EXHAUST PIPE
17451-74040

3SGE..SW20

 1
90917-06055

3SGE..SW20

 2
90917-06075

3SGE..SW20

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-74830

3SFE..SW20;3SGE..SW20..ARL,G

 1
17430-74850

3SGE..SW20..W

 1
17430-7A440

3SGE..SW20

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-74830

3SFE..SW20;3SGE..SW20..ARL,G

 1
17430-74850

3SGE..SW20..W

 1
17430-7A440

3SGE..SW20

 1
17451 - GASKET, EXHAUST PIPE
90917-06054

3SGE..SW20..W

 1
90917-06057

3SGE..SW20

NO.2

 1
90917-06054

3SGE..SW20..ARL,G

 2
90917-06054

3SGE..SW20

NO.1

 1
17451 - GASKET, EXHAUST PIPE
90917-06054

3SGE..SW20..W

 1
90917-06057

3SGE..SW20

NO.2

 1
90917-06054

3SGE..SW20..ARL,G

 2
90917-06054

3SGE..SW20

NO.1

 1
17451 - GASKET, EXHAUST PIPE
90917-06054

3SGE..SW20..W

 1
90917-06057

3SGE..SW20

NO.2

 1
90917-06054

3SGE..SW20..ARL,G

 2
90917-06054

3SGE..SW20

NO.1

 1
17451 - GASKET, EXHAUST PIPE
90917-06054

3SGE..SW20..W

 1
90917-06057

3SGE..SW20

NO.2

 1
90917-06054

3SGE..SW20..ARL,G

 2
90917-06054

3SGE..SW20

NO.1

 1
17451 - GASKET, EXHAUST PIPE
90917-06054

3SGE..SW20..W

 1
90917-06057

3SGE..SW20

NO.2

 1
90917-06054

3SGE..SW20..ARL,G

 2
90917-06054

3SGE..SW20

NO.1

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-74060

3S#..SW20

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-74040

3S#..SW20

 2
17507-74080

3S#..SW20

 2
18435 - PROTECTOR, CATALYTIC CONVERTER
18435-74060

3SGE..SW20

 1
18435-74070

3SGE..SW20..ARL,G

 1
18435 - PROTECTOR, CATALYTIC CONVERTER
18435-74060

3SGE..SW20

 1
18435-74070

3SGE..SW20..ARL,G

 1
18448 - BRACKET, CONVERTER PROTECTOR, CENTER
18438-16020

3SFE..SW20;3SGE..SW20..ARL,G

FR

 1
18439-74020

3SGE..SW20

RR

 1
18439-16020

3SFE..SW20;3SGE..SW20..ARL,G

RR

 1
18448 - BRACKET, CONVERTER PROTECTOR, CENTER
18438-16020

3SFE..SW20;3SGE..SW20..ARL,G

FR

 1
18439-74020

3SGE..SW20

RR

 1
18439-16020

3SFE..SW20;3SGE..SW20..ARL,G

RR

 1
18448 - BRACKET, CONVERTER PROTECTOR, CENTER
18438-16020

3SFE..SW20;3SGE..SW20..ARL,G

FR

 1
18439-74020

3SGE..SW20

RR

 1
18439-16020

3SFE..SW20;3SGE..SW20..ARL,G

RR

 1
18448 - BRACKET, CONVERTER PROTECTOR, CENTER
18438-16020

3SFE..SW20;3SGE..SW20..ARL,G

FR

 1
18439-74020

3SGE..SW20

RR

 1
18439-16020

3SFE..SW20;3SGE..SW20..ARL,G

RR

 1
Common parts
90105-10023
90105-12173
90179-12041
91511-60835
91512-60816
91621-60814
91631-60822
91632-60822
91651-60820
91651-61020
