SW20L-ACMZFW (1989)
Toyota Mr2

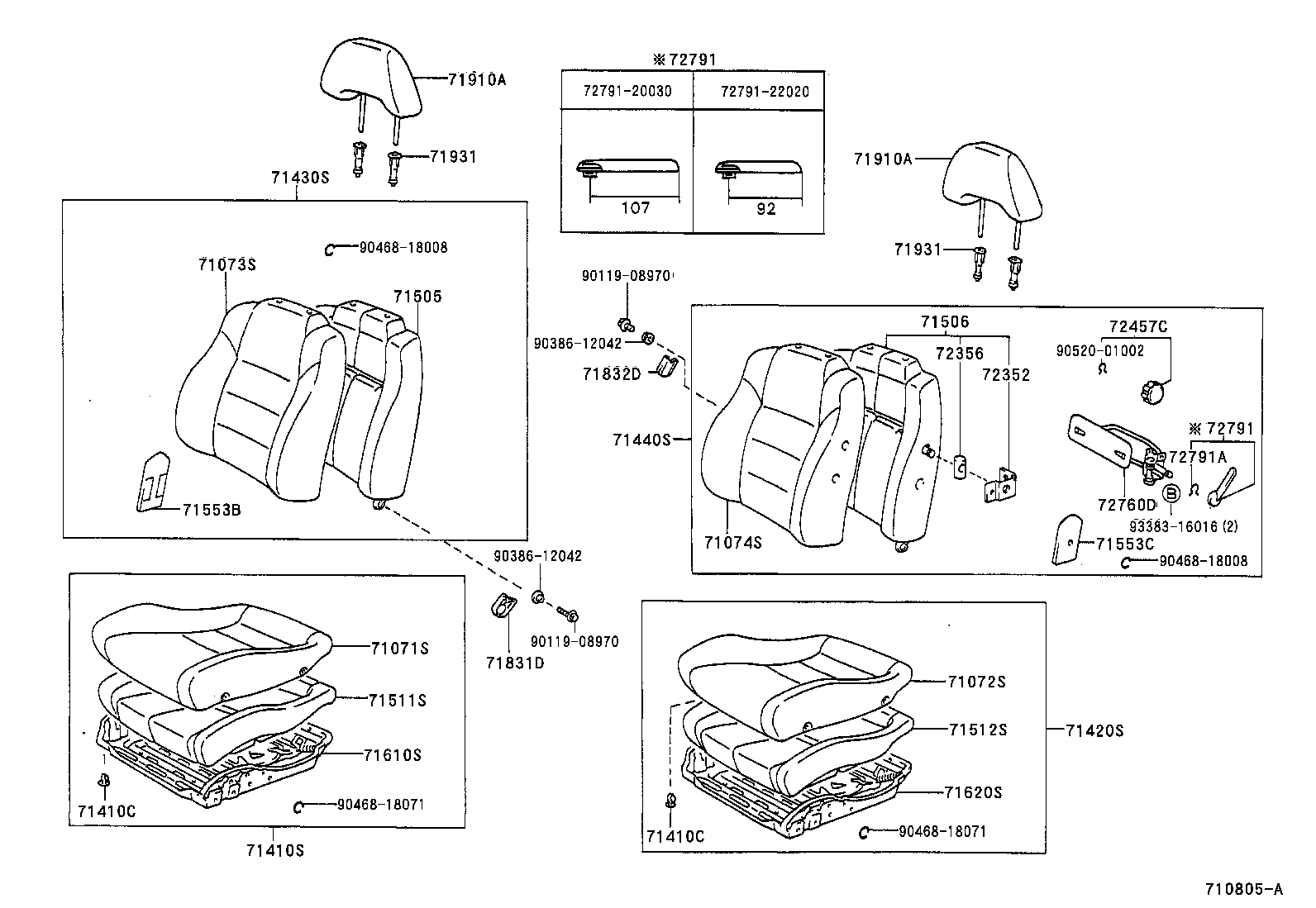

ILLUST NO. 1 OF 2(8912- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1720004 |
SW20..LHD DARK BLUE,TRIM8# |
1 | ||
| 71071-1720001 |
SW20..LHD BLACK,TRIM2# |
1 | ||
| 71071-1722001 |
SW20..LHD LEATHER PACKAGE-*104,BLACK,TRIM2# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1722001 |
SW20..LHD LEATHER PACKAGE-*104,BLACK,TRIM2# |
1 | ||
| 71072-1720004 |
SW20..LHD DARK BLUE,TRIM8# |
1 | ||
| 71072-1720001 |
SW20..LHD BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1726001 |
SW20..LHD BLACK,TRIM2# |
1 | ||
| 71073-1728001 |
SW20..LHD LEATHER PACKAGE-*104,BLACK,TRIM2# |
1 | ||
| 71073-1726004 |
SW20..LHD DARK BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1726001 |
SW20..LHD BLACK,TRIM2# |
1 | ||
| 71074-1726004 |
SW20..LHD DARK BLUE,TRIM8# |
1 | ||
| 71074-1728001 |
SW20..LHD LEATHER PACKAGE-*104,BLACK,TRIM2# |
1 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-1001601 |
SW20 BLACK,TRIM2#,8# |
2 | ||
| 90467-1001601 |
SW20..TWC BLACK,TRIM2#,8# |
6 | ||
| 71410C - CLIP(FOR FRONT SEAT CUSHION) | ||||
| 90467-1001601 |
SW20 BLACK,TRIM2#,8# |
2 | ||
| 90467-1001601 |
SW20..TWC BLACK,TRIM2#,8# |
6 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1724004 |
SW20..LHD DARK BLUE,TRIM8# |
1 | ||
| 71410-1726001 |
SW20..LHD LEATHER PACKAGE-*104,BLACK,TRIM2# |
1 | ||
| 71410-1724001 |
SW20..LHD BLACK,TRIM2# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1726001 |
SW20..LHD LEATHER PACKAGE-*104,BLACK,TRIM2# |
1 | ||
| 71420-1724001 |
SW20..LHD BLACK,TRIM2# |
1 | ||
| 71420-1724004 |
SW20..LHD DARK BLUE,TRIM8# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1733001 |
SW20..LHD BLACK,TRIM2# |
1 | ||
| 71430-1733004 |
SW20..LHD DARK BLUE,TRIM8# |
1 | ||
| 71430-1735001 |
SW20..LHD LEATHER PACKAGE-*104,BLACK,TRIM2# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1733001 |
SW20..LHD BLACK,TRIM2# |
1 | ||
| 71440-1733004 |
SW20..LHD DARK BLUE,TRIM8# |
1 | ||
| 71440-1735001 |
SW20..LHD LEATHER PACKAGE-*104,BLACK,TRIM2# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-17070 |
SW20..LHD;SW20..HTWC |
1 | ||
| 71505-17070 |
SW20..LHD |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-17080 |
SW20..LHD |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-17090 |
SW20..LHD |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-17100 |
SW20..LHD |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-17020 |
SW20..LHD RH |
1 | ||
| 71553C - PAD, FRONT SEAT BACK, C | ||||
| 71553-17010 |
SW20..LHD |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20470 |
SW20 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-20470 |
SW20 |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-17010 |
SW20 |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-17010 |
SW20 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1711004 |
SW20..TWC DARK BLUE,TRIM8# |
2 | ||
| 71910-1713001 |
SW20..TWC..(G,W) LEATHER PACKAGE-*104,BLACK,TRIM2# |
2 | ||
| 71910-1711001 |
SW20..TWC BLACK,TRIM2# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1711004 |
SW20..TWC DARK BLUE,TRIM8# |
2 | ||
| 71910-1713001 |
SW20..TWC..(G,W) LEATHER PACKAGE-*104,BLACK,TRIM2# |
2 | ||
| 71910-1711001 |
SW20..TWC BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1702004 |
SW20 W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1702001 |
SW20 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-1701001 |
SW20 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-1701004 |
SW20 W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1702004 |
SW20 W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1702001 |
SW20 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-1701001 |
SW20 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-1701004 |
SW20 W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 72457C - KNOB, SIDE SUPPORT ADJUSTER | ||||
| 72457-2202001 |
SW20..TWC BLACK,TRIM2# |
1 | ||
| 72457-2202014 |
SW20..TWC DARK BLUE,TRIM8# |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-17020 |
SW20..LHD |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2003001 |
SW20..TWC BLACK,TRIM2# |
1 | ||
| 72791-2003014 |
SW20..TWC DARK BLUE,TRIM8# |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2003001 |
SW20..TWC BLACK,TRIM2# |
1 | ||
| 72791-2003014 |
SW20..TWC DARK BLUE,TRIM8# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01274 |
SW20..TWC |
1 | ||
| 90520-01002 |
SW20..LHD |
1 | ||
| Common parts | ||||
| 72791-20030 | ||||
| 72791-22020 | ||||
| 90119-08970 | ||||
| 90386-12042 | ||||
| 90468-18008 | ||||
| 90468-18071 | ||||
| 90520-01002 | ||||
| 93383-16016 | ||||

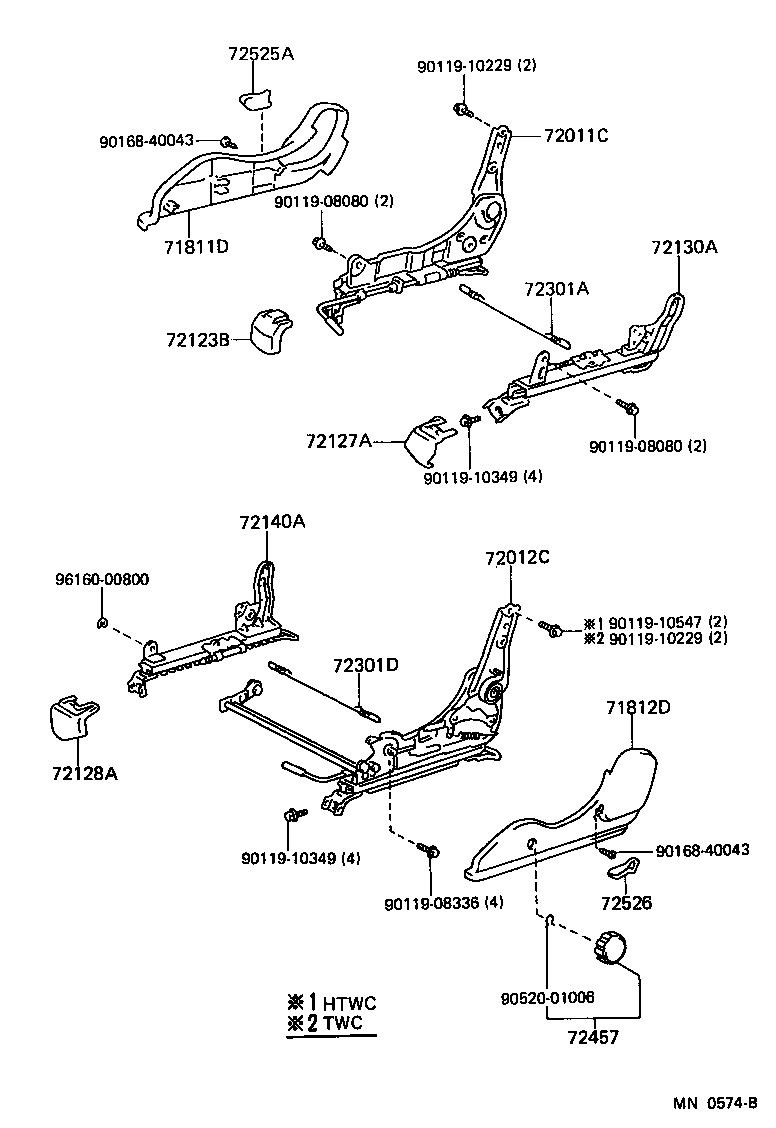

ILLUST NO. 2 OF 2(8912- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1704004 |
SW20..LHD DARK BLUE,TRIM8# |
1 | ||
| 71811-1704001 |
SW20..LHD BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1704001 |
SW20..LHD BLACK,TRIM2# |
1 | ||
| 71812-1704004 |
SW20..LHD DARK BLUE,TRIM8# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-17110 |
SW20..LHD |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-17090 |
SW20..LHD |
1 | ||
| 72123B - COVER, SEAT TRACK BRACKET, OUTER FRONT | ||||
| 72123-1701001 |
SW20 BLACK,TRIM2# |
1 | ||
| 72123-1701004 |
SW20 DARK BLUE,TRIM8# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-1701001 |
SW20 BLACK,TRIM2# |
1 | ||
| 72127-1701004 |
SW20 DARK BLUE,TRIM8# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-1701001 |
SW20 BLACK,TRIM2# |
1 | ||
| 72128-1701004 |
SW20 DARK BLUE,TRIM8# |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-17090 |
SW20..LHD |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-17070 |
SW20..LHD |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-17030 |
SW20 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-17030 |
SW20 |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-2202014 |
SW20 DARK BLUE,TRIM8# |
1 | ||
| 72457-2202001 |
SW20 BLACK,TRIM2# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-1702001 |
SW20 BLACK,TRIM2# |
1 | ||
| 72525-1702004 |
SW20 DARK BLUE,TRIM8# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1701001 |
SW20 BLACK,TRIM2# |
1 | ||
| 72526-1701004 |
SW20 DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08336 | ||||
| 90119-10229 | ||||
| 90119-10349 | ||||
| 90119-10547 | ||||
| 90168-40043 | ||||
| 90520-01006 | ||||
| 96160-00800 | ||||
