SW20L-ACMZFW (1989)

Toyota Mr2

Production Dec 1989 - Dec 1991
Engine 3SGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912-9112)3SGE

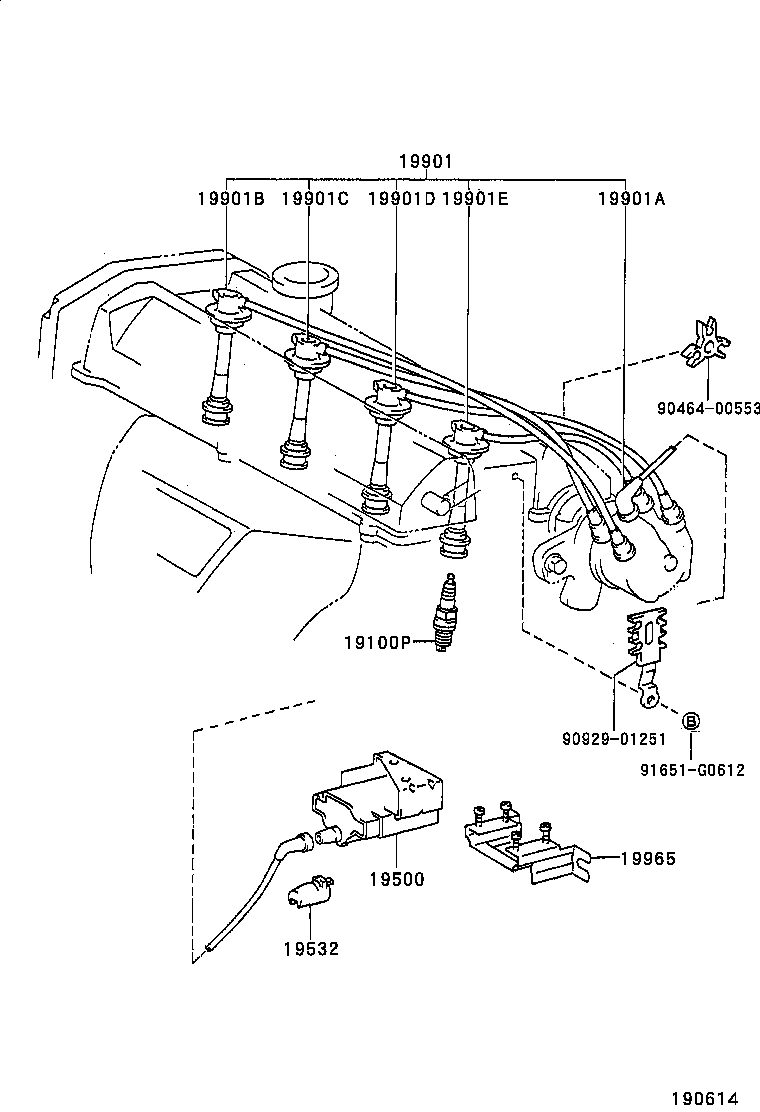

Click highlighted areas on diagram

diagram 19100P 19500 19532 19901 19901A 19901B 19901C 19901D 19901E 19965 9046400553 9092901251 91651G0612
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01166

3SGE..SW20..W

K20R-U

 4
90919-01180

3SGE..SW20..ARL,G

PK20R8

 4
19500 - COIL ASSY, IGNITION
90919-02185

3SGE..SW20

 1
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-74010

3SGE..SW20

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21494

3SGE..SW20

 1
19901A - CORD, COIL RESISTIVE
19590-74060

3SGE..SW20

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15046

3SGE..SW20

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15047

3SGE..SW20

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15048

3SGE..SW20

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15049

3SGE..SW20

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03112

3S#..SW20

 1
Common parts
90464-00553
90929-01251
91651-G0612
