SW20L-ACMZFG (1989)
Toyota Mr2
Production
Dec 1989
-
Jan 1995
Engine
3SGE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8912- )CP

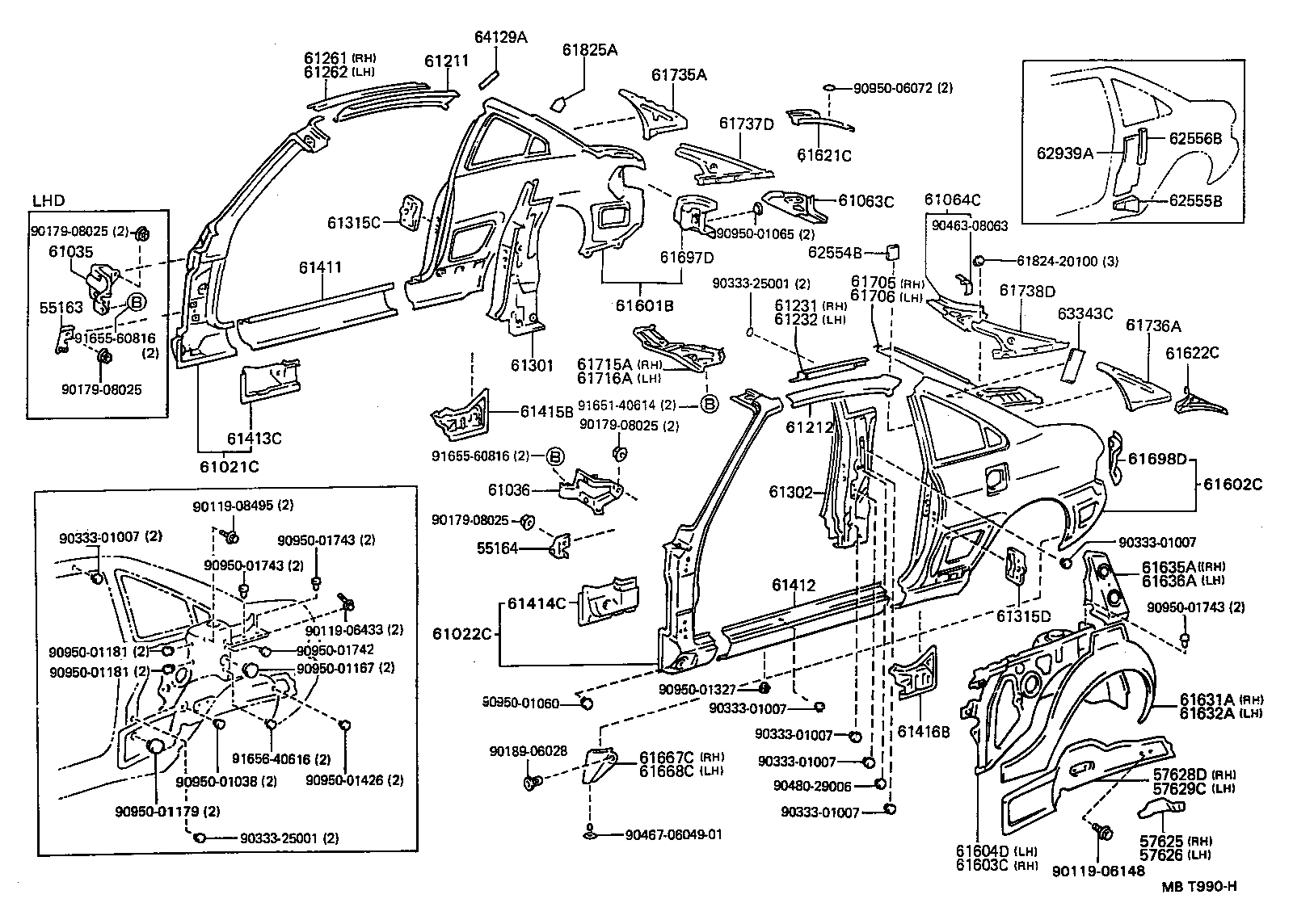

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55163 - BRACKET, HEATER BLOWER MOUNTING, NO.2 RH | ||||
| 55163-17020 |
SW20..LHD |
1 | ||
| 57625 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH | ||||
| 57625-17010 |
SW20 |
1 | ||
| 57626 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, LH | ||||
| 57626-17010 |
SW20 |
1 | ||
| 57628D - PLATE, REAR FLOOR SIDE MEMBER, RH | ||||
| 57628-17040 |
SW20 |
1 | ||
| 57629C - PLATE, REAR FLOOR SIDE MEMBER, LH | ||||
| 57629-17040 |
SW20 |
1 | ||
| 61021C - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-17140 |
SW20..LHD..CP |
1 | ||
| 61021-17141 |
SW20..LHD..CP |
1 | ||
| 61022C - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-17150 |
SW20..LHD..CP |
1 | ||
| 61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 61165-17020 |
SW20..LHD |
1 | ||
| 61063C - TROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT RH | ||||
| 61063-17010 |
SW20 |
1 | ||
| 61064C - TROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT LH | ||||
| 61064-17010 |
SW20 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-17020 |
SW20 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-17020 |
SW20 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-17030 |
SW20..CP |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-17040 |
SW20..CP |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-17020 |
SW20..CP |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-17020 |
SW20..CP |
1 | ||
| 61301 - PILLAR SUB-ASSY, CENTER BODY, RH | ||||
| 61301-17010 |
SW20 |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-17010 |
SW20 |
1 | ||
| 61315C - RETAINER, DOOR LOCK STRIKER, RH | ||||
| 61315-22020 |
SW20 |
1 | ||
| 61315D - RETAINER, DOOR LOCK STRIKER, LH | ||||
| 61315-22020 |
SW20 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-17050 |
SW20 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-17050 |
SW20 |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-17020 |
SW20 |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-17020 |
SW20 |
1 | ||
| 61415B - EXTENSION, ROCKER, OUTER RH | ||||
| 61415-17020 |
SW20 |
1 | ||
| 61416B - EXTENSION, ROCKER, OUTER LH | ||||
| 61416-17020 |
SW20 |
1 | ||
| 61601B - PANEL SUB-ASSY, QUARTER, RH | ||||
| 61601-17170 |
SW20..G,W W(REAR SPOILER & QUARTER AUTO ANTENNA) |
1 | ||
| 61601-17170 |
SW20..G,W W(REAR SPOILER & RADIO) |
1 | ||
| 61601-17151 |
SW20 |
1 | ||
| 61601-17150 |
SW20..G,W |
1 | ||
| 61602C - PANEL SUB-ASSY, QUARTER, LH | ||||
| 61602-17100 |
SW20 |
1 | ||
| 61602-17100 |
SW20..G,W |
1 | ||
| 61602-17110 |
SW20..G,W W(REAR SPOILER) |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61603-17050 |
SW20 |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61604-17060 |
SW20 |
1 | ||
| 61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-17020 |
SW20 |
1 | ||
| 61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-17020 |
SW20 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-17020 |
SW20 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-17020 |
SW20 |
1 | ||
| 61635A - BRACE, QUARTER WHEEL HOUSE, RH | ||||
| 61635-17020 |
SW20 |
1 | ||
| 61636A - BRACE, QUARTER WHEEL HOUSE, LH | ||||
| 61636-17020 |
SW20 |
1 | ||
| 61667C - SEAL, QAURTER PANEL, NO.1 | ||||
| 61667-17010 |
SW20 |
1 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61668-17010 |
SW20 |
1 | ||
| 61697D - HOUSING, QUARTER PANEL END, RH | ||||
| 61697-17010 |
SW20 |
1 | ||
| 61698D - HOUSING, QUARTER PANEL END, LH | ||||
| 61698-17010 |
SW20 |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-17110 |
SW20..CP |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-17140 |
SW20..CP |
1 | ||
| 61715A - EXTENSION, ROOF SIDE, INNER UPPER RH | ||||
| 61715-17020 |
SW20 |
1 | ||
| 61716A - EXTENSION, ROOF SIDE, INNER UPPER LH | ||||
| 61716-17020 |
SW20 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-17020 |
SW20 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61738-17020 |
SW20 |
1 | ||
| 61737D - REINFORCEMENT, ROOF SIDE, INNER RH | ||||
| 61737-17020 |
SW20 |
1 | ||
| 61738D - REINFORCEMENT, ROOF SIDE, INNER LH | ||||
| 61736-17020 |
SW20 |
1 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-17030 |
SW20 |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-17020 |
SW20 |
1 | ||
| 62555B - PAD, PILLAR, NO.5 | ||||
| 62555-17020 |
SW20 |
2 | ||
| 62556B - PAD, PILLAR, NO.6 | ||||
| 62556-17020 |
SW20 |
2 | ||
| 62939A - SILENCER, QUARTER VENT | ||||
| 62939-17010 |
SW20 |
2 | ||
| 63343C - PAD, ROOF SILENCER, REAR | ||||
| 63343-17010 |
SW20 |
1 | ||
| Common parts | ||||
| 61824-20100 | ||||
| 90119-06148 | ||||
| 90119-06433 | ||||
| 90119-08495 | ||||
| 90179-08025 | ||||
| 90189-06028 | ||||
| 90333-01007 | ||||
| 90333-25001 | ||||
| 90463-08063 | ||||
| 90467-0604901 | ||||
| 90480-29006 | ||||
| 90950-01038 | ||||
| 90950-01060 | ||||
| 90950-01065 | ||||
| 90950-01167 | ||||
| 90950-01179 | ||||
| 90950-01181 | ||||
| 90950-01327 | ||||
| 90950-01426 | ||||
| 90950-01742 | ||||
| 90950-01743 | ||||
| 90950-06072 | ||||
| 91651-40614 | ||||
| 91655-60816 | ||||
| 91656-40616 | ||||
